Fast-boiling electric kettle with temperature control and a sleek stainless steel design. Perfect for tea, coffee, and more.

A lightweight and powerful laptop for work and play. Features a fast SSD, vibrant display, and all-day battery life.

Mpower 150AH Gel battery offers a maintenance-free and leak-proof power storage solution with a longer service life than standard batteries.

Luminous 200AH tall tubular battery, known for its long life and reliable performance in deep cycle applications. Perfect for solar and backup systems.

A versatile microwave oven with a grill function for browning and crisping. Compact design, perfect for any modern kitchen.

A high-capacity pure sine wave inverter, perfect for powering homes and small offices with clean, stable electricity. Ideal for sensitive electronics.

High-efficiency 450W monocrystalline solar panel from Jinko Solar. Delivers excellent performance even in low-light conditions.

Enjoy your favorite fried foods with up to 85% less fat. This digital air fryer features multiple cooking presets and a large capacity for families.

Immerse yourself in stunning 4K detail with this smart TV. Access all your favorite streaming apps like Netflix, YouTube, and more.

Growatt 5KVA hybrid inverter with a built-in MPPT charge controller. An all-in-one solution for off-grid and hybrid solar systems.

Epever 60A MPPT charge controller maximizes the energy harvest from your solar panels, improving system efficiency by up to 30%.

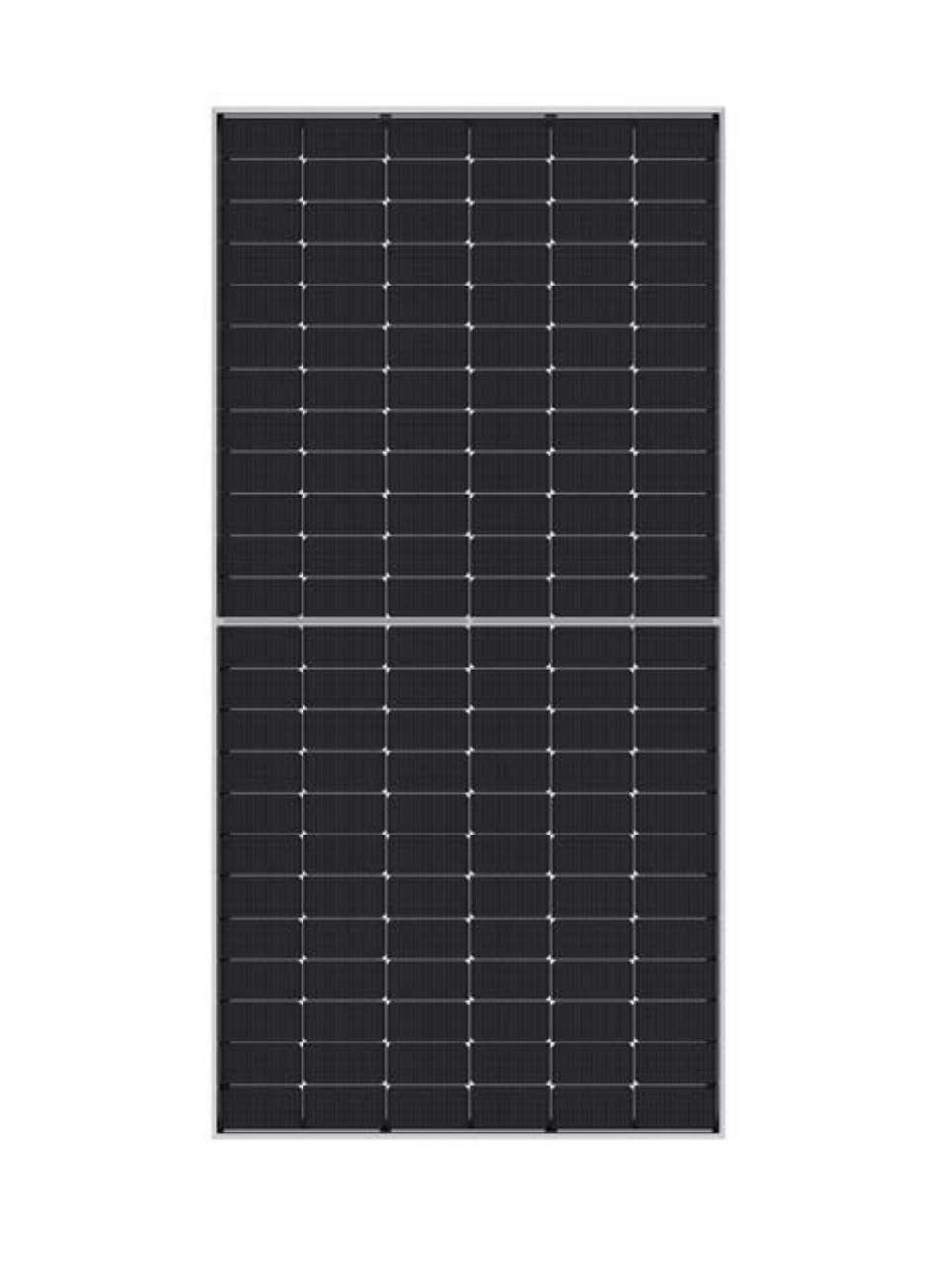

African Energy modules are made by some of the world’s most sophisticated module manufacturers and are designed for Africa’s off-grid solar charging and water pumping needs. The modules include efficient crystalline cells set in a solid aluminum frame and feature TÜV and IEC certification. With a 30-year warranty, these modules can provide power for several generations – and the quality is assured by African Energy’s decade of experience in the solar industry.

Electrical Characteristics:

• Maximum Power at STC (Pmax) 575 W
• Optimum Operating Voltage (Vmp) 43.56 V
• Optimum Operating Current (Imp) 12.90 A
• Open Circuit Voltage (Voc) 51.75 V
• Short Circuit Current (Isc) 13.70 A
• Module Efficiency 22.3%
• Operating Module Temperature -40 °C to +85 °C
• Maximum System Voltage 1000/1500 V DC (IEC)
• Maximum Series Fuse Rating 20 A
• Power Tolerance 0/+5 %
• 30-year warranty

Mechanical Specifications:

• Solar Cells Monocrystalline 144 (72*2) pcs
• No. of Cells 144 (72*2)
• Dimensions 2278x1134x30mm
• Weight 28.3kg
• Front Glass High transparency solar glass 3.2mm
• Frame Black/Silver Anodized aluminum alloy
• Junction Box IP68 rated
• Output Cables 4.0 mm2, portrait: 300mm/300mm
• Connector MC4 Compatible
• Wind/Snow Load 2400pa/5400pa

African Energy modules are made by some of the world’s most sophisticated module manufacturers and are designed for Africa’s off-grid solar charging and water pumping needs. The modules include efficient crystalline cells set in a solid aluminum frame and feature TÜV and IEC certification. With a 30-year warranty, these modules can provide power for several generations – and the quality is assured by African Energy’s decade of experience in the solar industry.

Electrical Characteristics:

• Maximum Power at STC (Pmax) 620 W
• Optimum Operating Voltage (Vmp) 40.93 V
• Optimum Operating Current (Imp) 12.90 A
• Open Circuit Voltage (Voc) 48.40 V
• Short Circuit Current (Isc) 13.70 A
• Module Efficiency 22.95%
• Operating Module Temperature -40 °C to +85 °C
• Maximum System Voltage 1000/1500 V DC (IEC)
• Maximum Series Fuse Rating 20 A
• Power Tolerance 0/+5 %
• 30-year warranty

Mechanical Specifications:

• Solar Cells Monocrystalline 144 (72*2) pcs
• No. of Cells 144 (72*2)
• Dimensions 2278x1134x30mm
• Weight 28.3kg
• Front Glass High transparency solar glass 3.2mm
• Frame Black/Silver Anodized aluminum alloy
• Junction Box IP68 rated
• Output Cables 4.0 mm2, portrait: 300mm/300mm
• Connector MC4 Compatible
• Wind/Snow Load 2400pa/5400pa

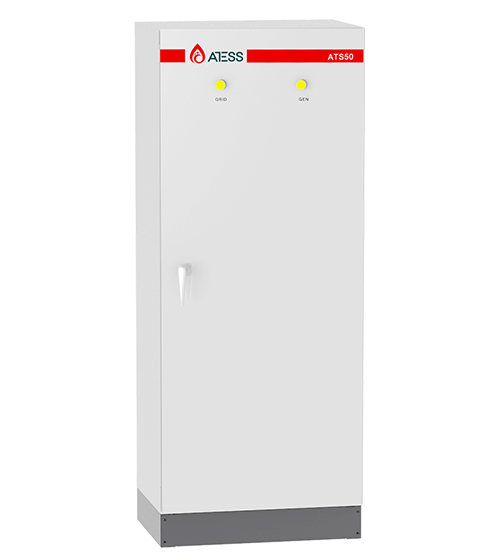

ATESS Automatic Transfer Switch is an accessory of HPS, when both the grid and the DG need to access HPS, the Automatic Transfer Switch will be used to switch between the grid and DG automatically.

Features:

• HPS compatible
• Flexible management
• Support remote control of DG.
• Transfer automatically between grid and DG.

ATESS Automatic Transfer Switch is an accessory of HPS, when both the grid and the DG need to access HPS, the Automatic Transfer Switch will be used to switch between grid and DG automatically.

Features:

• HPS compatible
• Flexible management
• Support remote control of DG.
• Transfer automatically between grid and DG.

ATESS Automatic Transfer Switch is an accessory of HPS, when both the grid and the DG need to access HPS, the Automatic Transfer Switch will be used to switch between the grid and DG automatically.

Features:

• HPS compatible
• Flexible management
• Support remote control of DG.
• Transfer automatically between grid and DG.

Data logger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with ATESS server via internet.

Battery module specification

• Cell Configuration 16S1P
• Rated capacity 280Ah
• Rated voltage 51.2
• Rated energy 14.336kWh
• Voltage range 44.8~57.6V
• Rated charge/discharge 0.5C
• AC internal resistance ≤8mΩ
• Dimension(W/H/D) 523/231/805mm
• Weight 113kg
• Passive cell balancing Default

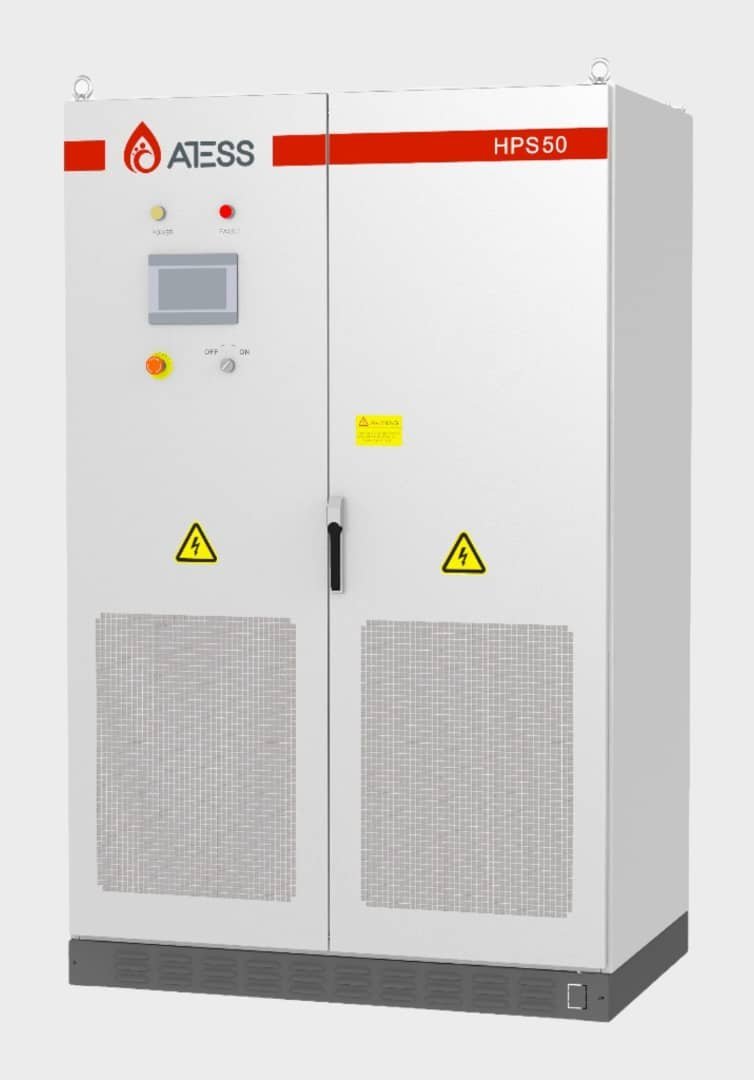

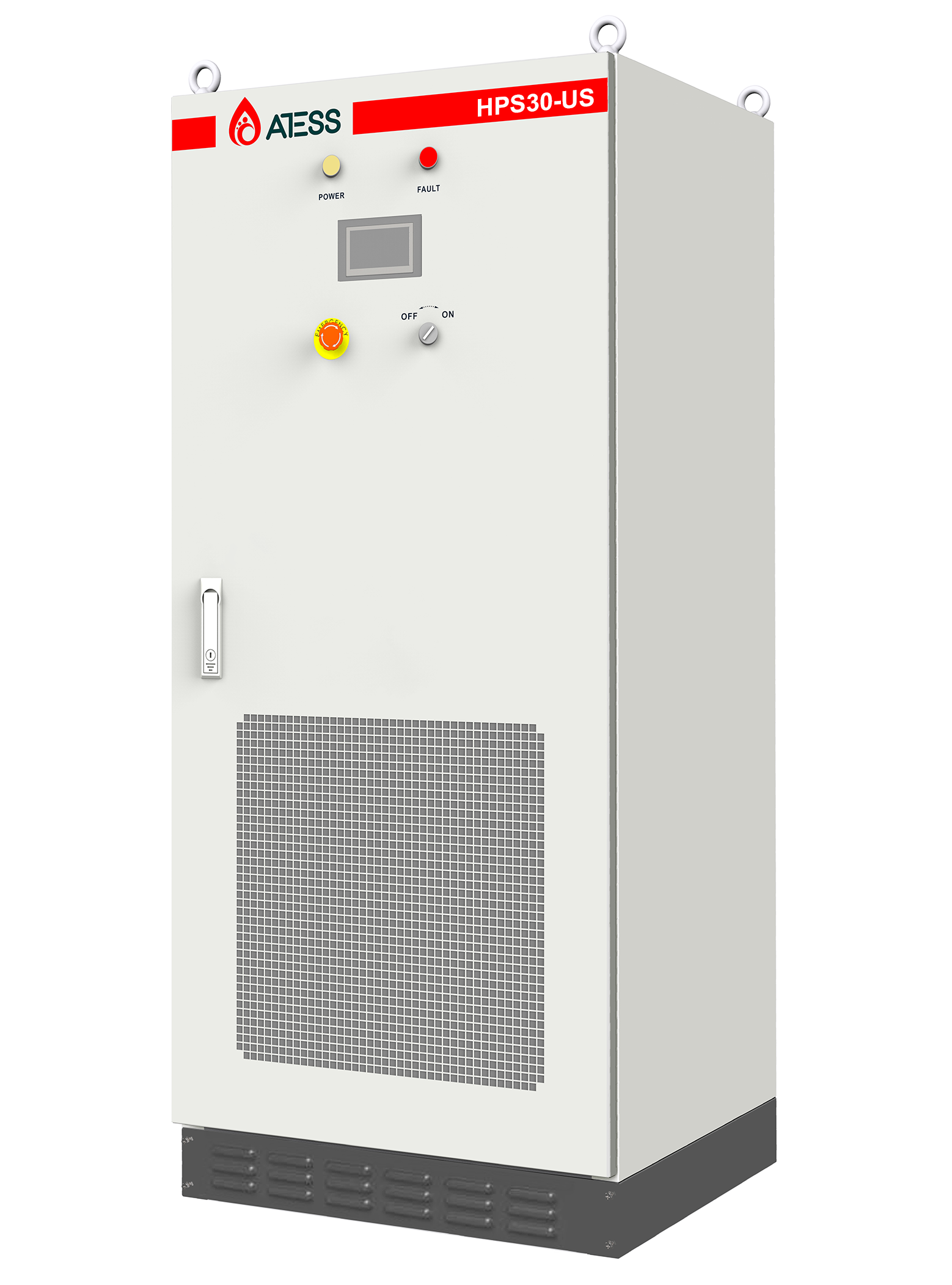

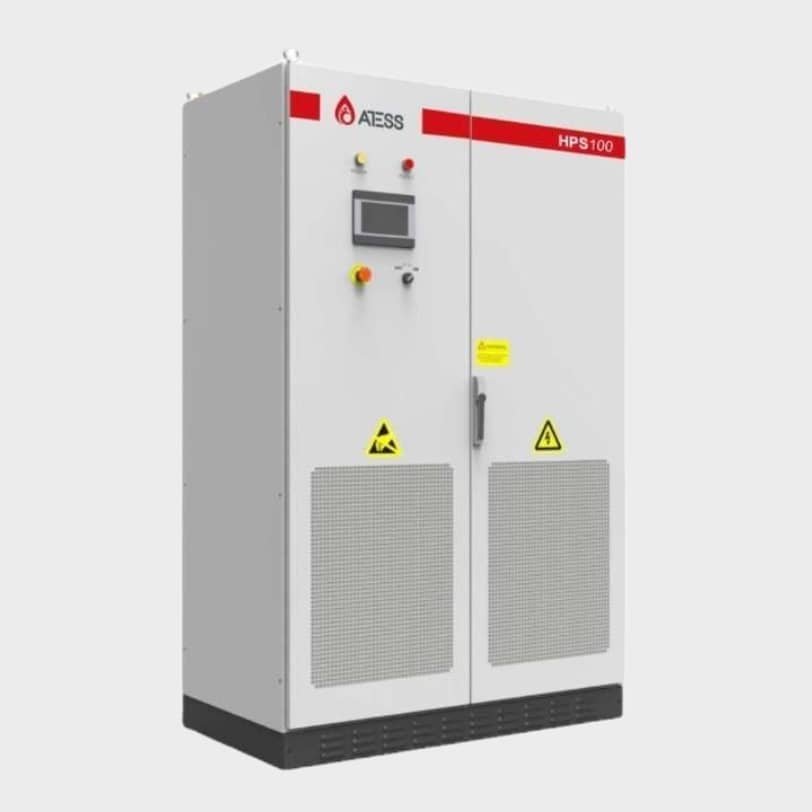

Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.
Features
All-in-one hybrid inverter

Battery, load, grid, and solar connection are all supported.
Programmable working mode

Peak-shaving, back-up, use the system however you want it.
Scalable design

Quadruple capacity by paralleling 4 units.
Hot back-up One inverter fails in a parallel system, the other(s) takes over seamlessly.
Touchscreen LCD

More convenient for parameter setting and maintenance.
Seamless transfer

Uninterruptable power supply guaranteed.
Dry contact output

Supports remote control of DG.

Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.
Features
All-in-one hybrid inverter

Battery, load, grid, and solar connection are all supported.
Programmable working mode

Peak-shaving, back-up, use the system however you want it.
Scalable design

Quadruple capacity by paralleling 4 units.
Hot back-up One inverter fails in a parallel system, the other(s) takes over seamlessly.
Touchscreen LCD

More convenient for parameter setting and maintenance.
Seamless transfer

Uninterruptable power supply guaranteed.
Dry contact output

Supports remote control of DG.

Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.

Features

• All-in-one hybrid inverter
  Battery, load, grid, and solar connection are all supported.
• Programmable working mode
  Peak-shaving, back-up, use the system however you want it.
•  Scalable design
  Quadruple capacity by paralleling 4 units.
• Hot back-up One inverter fails in a parallel system, the other(s) takes over seamlessly.
• Touchscreen LCD
  More convenient for parameter setting and maintenance.
• Seamless transfer
  Uninterruptable power supply guaranteed.
• Dry contact output
  Supports remote control of DG.

Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.

Features

• All-in-one hybrid inverter
  Battery, load, grid, and solar connection are all supported.
• Programmable working mode
  Peak-shaving, back-up, use the system however you want it.
•  Scalable design
  Quadruple capacity by paralleling 4 units.
• Hot back-up

  One inverter fails in a parallel system, the other(s) takes over seamlessly.

• Touchscreen LCD
  More convenient for parameter setting and maintenance.
• Seamless transfer
  Uninterruptable power supply guaranteed.
• Dry contact output
  Supports remote control of DG.

Large capacity all-in-one hybrid inverter for commercial application, supporting up to 600kW system capacity.

Features

• All-in-one hybrid inverter
  Battery, load, grid, and solar connection are all supported.
• Programmable working mode
  Peak-shaving, back-up, use the system however you want it.
•  Scalable design
  Quadruple capacity by paralleling 4 units.
• Hot back-up One inverter fails in a parallel system, the other(s) takes over seamlessly.
• Touchscreen LCD
  More convenient for parameter setting and maintenance.
• Seamless transfer
  Uninterruptable power supply guaranteed.
• Dry contact output
  Supports remote control of DG.

ATESS Batt-Master Cabinet – 9R -280R

ATESS Slave Battery Rack BR114RPB

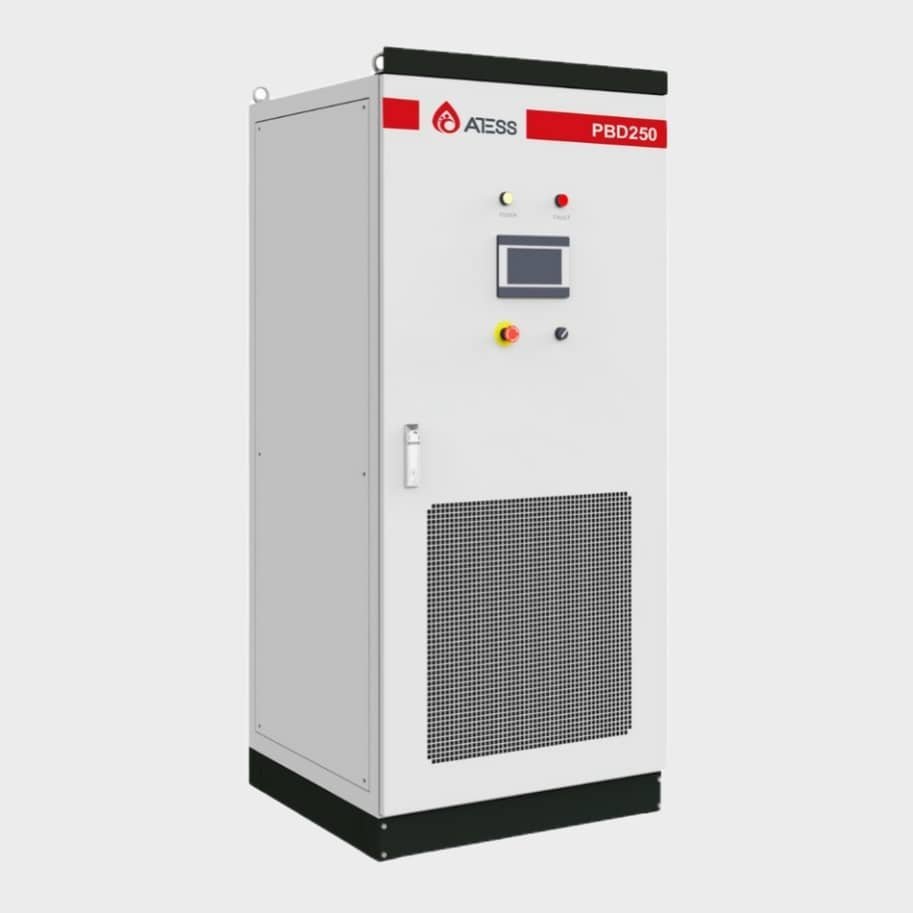

PBD250

1000V level DC to DC solar charge controller, used together with ATESS PCS and Bypass for large scale solar projects.

Features:

• Multiple units parallelable
• Up to 5 MPPT
• Modular design
• Transformerless design

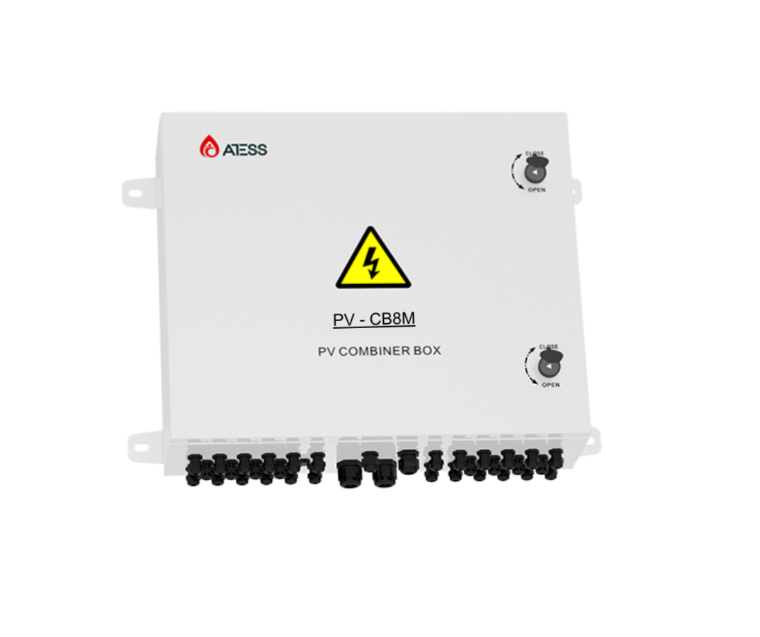

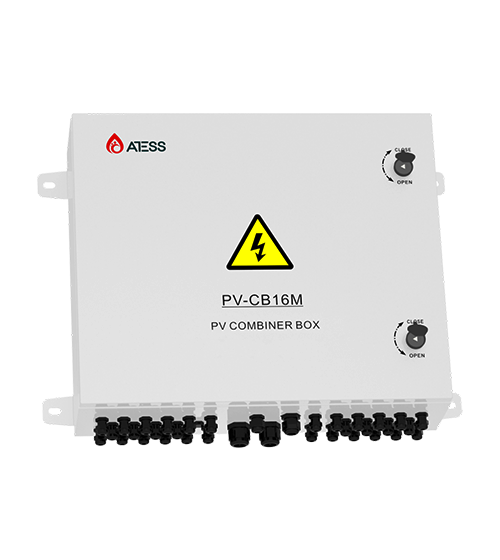

ATESS PV combiner box is an accessory for multiple PV strings connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD.

Features:

• Lightning protection
• Optional string monitoring function
• RS485 communication interface
• Input fuse for over current protection
• IP65 environment compatibility
• Flexible design, 8,16 inputs optional

ATESS PV combiner box is an accessory for multiple PV strings connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD.

Features:

• Lightning protection
• Optional string monitoring function
• RS485 communication interface
• Input fuse for over current protection
• IP65 environment compatibility
• Flexible design, 8,16 inputs optional

The BYD Battery-Box LV Flex is a lithium iron phosphate (LFP) battery pack for use with an external inverter. The communication with the inverter is established through the Battery-Box Premium LV BMU (Battery Management Unit). Connect up to 64 LV Flex Modules in parallel on one BMU to reach individual capacities between 5 and 320 kWh. Thanks to it´s 3U design, the LV Flex can adapt to off-the-shelf racking systems. And with the possibility of stacking up to 4 units or installing them vertically, the LV Flex provides a variety of options for bespoke housing designs.

KEY FEATURES

• Perfect Battery for bespoke Projects and Integrated Systems
• Scalable from 5 kWh to 320 kWh
• Maximum Flexibility for any Application with up to 64 Modules connected in Parallel
• Compatible with Market Leading 1 and 3 Phase Inverters
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Lifespan and Power
• Capable of High-Powered Emergency-Backup and Off-Grid Function
• Self-Consumption Optimization for Residential and
  Commercial Applications

TECHNICAL PARAMETERS

• Usable Energy 5.0 kWh
• Max Cont. Output Current 70 A
• Peak Output Current 105 A, 5 s
• Dimensions (H/W/D) 132x 482 x 525 mm
• Weight 47 kg
• Nominal Voltage 51.2 V
• Operating Voltage 43.2 -57.6 V
• Operating Temperature -10 °C to +50°C
• Battery Cell Technology Lithium Iron Phosphate (cobalt-free)
• Communication CAN/RS485
• Enclosure Protection Rating IP20
• Round-trip Efficiency ≥95%
• Scalability Max. 64 in Parallel (320 kWh)
• Certification IEC62619 / CE / CEC / UN38.3 / IEC62040
• Applications ON Grid / ON Grid + Backup / OFF Grid
• Compatible Inverters Refer to BYD Battery-Box LV Flex Minimum Configuration List
• Installation method With / Without Rack

The connection between BMU and Battery-Box should be the Straight-Through Wired Cable (CAT 5 shield or above, not longer than 10m).

Detailed connection instructions with inverters could be read in the Battery-Box LVS/LVL Quick Start Guide.

Properties:

•  Protection rating: IP55
•  Communication: Ethernet / CAN / RS485
•  Input voltage: 40-60V (Supply by Battery-Box through network cable)
•  Input current: 200mA
•  Dimensions (L/W/H): 222x154x5

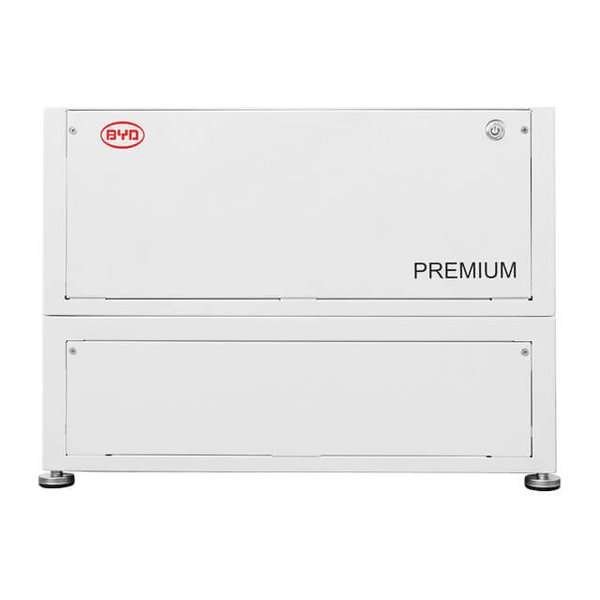

The BYD B-Box Premium LVL has powerful on-grid, backup and off-grid functions for private and commercial applications.

The new battery storage also has protection rating IP20. This means that the BYD B-Box Premium LVL 15.4 can only be used indoors.

Flexible and Scalable

In total, up to 64 B-Box Premium LVL 15.4 can be connected in parallel to achieve a total capacity of 983.04 kWh.

The BYD Battery-Box Premium LVL 15.4 is compatible with the market leading 1- and 3-phase inverters from GoodWe, Victron and SMA (Sunny Island).

Advantages of the BYD B-Box Premium

• All models of the Battery-Box Premium series comply with the VDE 2510 safety standard and have additional safety functions for installation.
• The systems support parallel connections without the need for additional communication devices.
• They are more flexible and scalable and cover a wider range of applications.
• The new cobalt-free premium generation also features a higher energy density and a more compact format, thus requiring less floor space.
• The higher capacity per module reduces the number of components. In combination with the improved design and a new locking mechanism, this should make installation easier and reduce installation time.
• Lithium Iron Phosphate Battery (LFP): Maximum safety, lifetime and performance
• In addition to a new LED status display, there is also a new interface and the option of remote control.

C&D’s Advanced Energy Storage battery line is built to meet the demanding standards of applications that may face extreme temperature, shock, or vibration conditions. Enhanced features such as a rugged case, DCS Technology, and Advanced Nano-Carbon technology makes the AES ideal choice for renewable energy applications or any application that calls for repetitive cycling.

Popular Applications

1. Renewable Energy Storage
2. Daily Cycling
3. Peak Shaving
4. Hybrid Telecom
5. Off-Grid
6. Continuous Charge & Discharge
7. Load Leveling / Demand Response

Features & Benefits

• Field-proven DCS high density active material for extended cycle life
• C&D Nano-Carbon® enhanced active material to maximize cycle performance and PSoC operation
• PSoC Operation allows installation into nearly all cycling applications
• Improved charging efficiency reduces grid corrision for longer calendar life
• 12V Monobloc designs aids installation and handling
• Rugged polypropylene case and cover for resistance to shock and vibration
• Removable carrying handles allow installation without specialized lifting equipment
• AGM construction means no liquid electrolyte, eliminates watering and spills
• UL Recognized Flame-arresting one-way pressure-relief vent for safety and long life.
• Over 98% Recyclable
• Proprietary Technologies
• Field-proven DCS active material for extended cycle life
• UL Recognized Flame-arresting one-way pressure-relief vent for safety and long life.
• C&D Nano-Carbon® enhanced active material to maximize cycle performance and PSoC operation

Certifications & Compliance

• Complies with UN 2794.
• Not restricted for surface transport- classified as non-hazardous material as related to DOT-CFR Title 49 parts 171-189.
• UL1989 Compliant

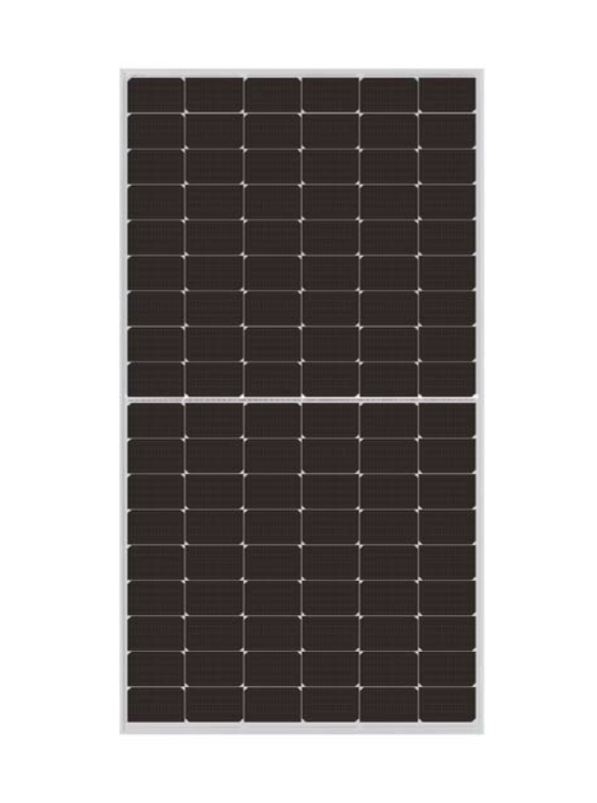

MORE POWER

• Module power up to 425 W Module efficiency up to 20.9 %
• Lower LCOE & BOS cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Better shading tolerance

MORE RELIABLE

• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, enhanced wind load up to 2400 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 405 W
• Opt. Operating Voltage (Vmp): 38.9 V
• Opt. Operating Current (Imp): 10.42 A
• Open Circuit Voltage (Voc): 47.4 V
• Short Circuit Current (Isc): 10.98 A
• Module Efficiency: 18.3%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 25 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 X (12 X 6) ]
• Dimensions: 2108 X 1048 X 40 mm (83.0 X 41.3 X 1.57 in)
• Weight: 24.9 kg (54.9 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): Portrait: 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-); landscape: 1250 mm (49.2 in)
• Connector: T4 series or MC4-EVO2

MORE POWER

• 26 % higher power than conventional modules
• Up to 4.5 % lower LCOE
• Up to 2.7 % lower system cost
• Low NMOT: 42 ± 3 °C
• Low temperature coefficient (Pmax): -0.35 % / °C
• Better shading tolerance

MORE RELIABLE

• Lower internal current, lower hot spot temperature
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 450 W
• Opt. Operating Voltage (Vmp): 41.1 V
• Opt. Operating Current (Imp): 10.96 A
• Open Circuit Voltage (Voc): 49.1 V
• Short Circuit Current (Isc): 11.60 A
• Module Efficiency: 20.4%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 20 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 5 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 X (12 X 6)]
• Dimensions: 2108 X 1048 X 40 mm (83.0 X 41.3 X 1.57 in)
• Weight: 24.9 kg (54.9 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): Portrait: 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-); landscape: 1250 mm (49.2 in)
• Connector: T4 series or H4 UTX or MC4-EVO2

MORE POWER

• Module efficiency up to 22.5 %
• Up to 4.5 % lower LCOE
• Up to 5.6 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Compatible with mainstream trackers, cost-effective product for utility power plant
• Better shading tolerance

MORE RELIABLE

• Minimizes micro-crack impacts
• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Heavy snow load up to 5400 Pa, enhanced wind load up to 2400 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 560 W
• Opt. Operating Voltage (Vmp): 42.3 V
• Opt. Operating Current (Imp): 13.24 A
• Open Circuit Voltage (Voc): 51.4 V
• Short Circuit Current (Isc): 13.69 A
• Module Efficiency: 21.7%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 25 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 x (12 x 6)]
• Dimensions: 2278 ˣ 1134 ˣ 30 mm (89.7 ˣ 44.6 ˣ 1.18 in)
• Weight: 27.6 kg (60.8 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length
• Connector: T4 series or H4 UTX or MC4-EVO2

MORE POWER

• Module efficiency up to 21.4 %
• Up to 3.5 % lower LCOE
• Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Compatible with mainstream trackers, cost-effective product for utility power plant
• Better shading tolerance

MORE RELIABLE

• Minimizes micro-crack impacts
• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Heavy snow loads up to 5400 Pa, enhanced wind loads up to 2400 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 600 W
• Opt. Operating Voltage (Vmp): 34.9 V
• Opt. Operating Current (Imp): 17.20 A
• Open Circuit Voltage (Voc): 41.3 V
• Short Circuit Current (Isc): 18.47 A
• Module Efficiency: 21.2%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 30 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 5 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 120 [2 x (10 x 6)]
• Dimensions: 2172 ˣ 1303 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in)
• Weight: 31.4 kg (69.2 lbs.)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminum alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length
• Connector: T4 series or H4 UTX or MC4-EVO2

MORE POWER

• Module efficiency up to 21.4 %
• Up to 3.5 % lower LCOE
• Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Compatible with mainstream trackers, cost-effective product for utility power plant
• Better shading tolerance

MORE RELIABLE

• Minimizes micro-crack impacts
• 40 °C lower hot spot temperature, greatly reduces module failure rate
• Heavy snow load up to 5400 Pa, enhanced wind load up to 2400 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 605 W
• Opt. Operating Voltage (Vmp): 35.1 V
• Opt. Operating Current (Imp): 17.25 A
• Open Circuit Voltage (Voc): 41.5 V
• Short Circuit Current (Isc): 18.52 A
• Module Efficiency: 21.4%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 30 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 5 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 120 [2 x (10 x 6)]
• Dimensions: 2172 ˣ 1303 ˣ 35 mm(85.5 ˣ 51.3 ˣ 1.38 in)
• Weight: 31.4 kg (69.2 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4in) (-) or customized length
• Connector: T4 series or H4 UTX or MC4-EVO2

MORE POWER

• Module power up to 670 W
• Module efficiency up to 21.6 %
• Up to 3.5 % lower LCOE
• Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Better shading tolerance

MORE RELIABLE

• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 665 W
• Opt. Operating Voltage (Vmp): 38.5 V
• Opt. Operating Current (Imp): 17.28 A
• Open Circuit Voltage (Voc): 45.6 V
• Short Circuit Current (Isc): 18.51 A
• Module Efficiency: 21.4%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 35 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 132 [2 x (11 x 6) ]
• Dimensions: 2384 ˣ 1303 ˣ 35 mm (93.9 ˣ 51.3 ˣ 1.38 in)
• Weight: 37.9 kg (83.6 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy, crossbar enhanced
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 10 AWG (UL)
• Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length*
• Connector: T4 series or MC4-EVO2
• Per Pallet: 31 pieces
• Per Container (40′ HQ): 527 pieces

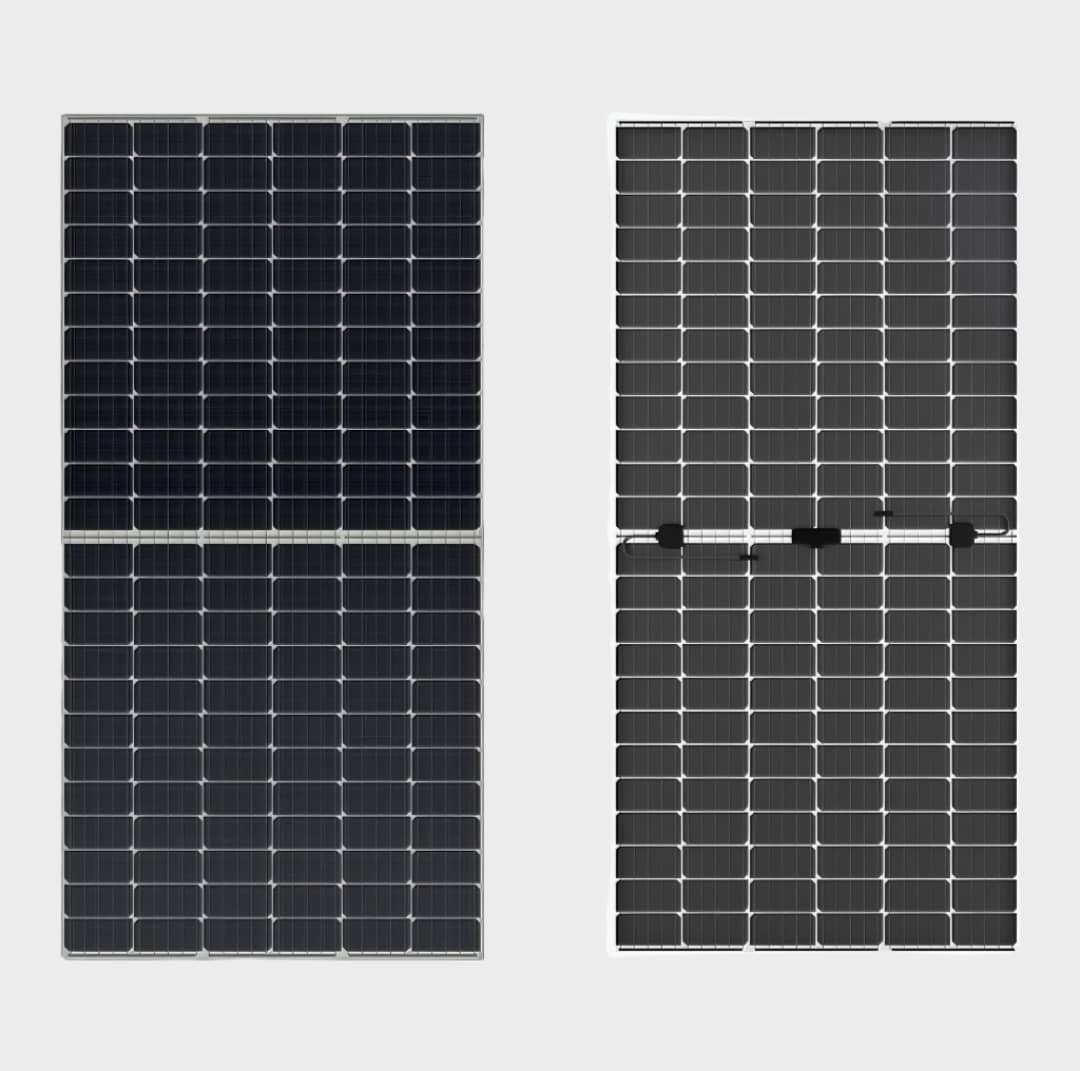

Unmatched Power Output for Maximum Efficiency

The Canadian Solar 705 Watts TOPBiHiKu7 N-type Bifacial Module is designed to revolutionize solar energy production with its industry-leading power capacity. With a robust 705-watt output, this module ensures superior performance and reliability, making it an excellent choice for residential, commercial, and industrial solar installations. Whether you’re looking to lower your electricity bills or reduce your environmental footprint, this module delivers consistent, high-efficiency energy production to meet your needs.

Advanced N-type Bifacial Technology

At the heart of the Canadian Solar TOPBiHiKu7 is cutting-edge N-type bifacial technology that harnesses sunlight on both sides of the module. This innovation boosts light absorption and amplifies energy generation, even in low-light conditions. Ideal for installations in regions with varied sunlight exposure, this smart technology ensures optimal performance, making the module a reliable solution for diverse climates and terrains. Gain a competitive edge in energy production with a technology tailored for efficiency and longevity.

Durability and Sustainable Design

Built with premium materials and backed by Canadian Solar’s engineering expertise, the TOPBiHiKu7 module is engineered for durability and long-term reliability. Its robust construction resists environmental stressors such as wind, snow, and high temperatures, ensuring stable operation under challenging conditions. Moreover, the bifacial design aligns with sustainability goals, maximizing energy received while reducing waste. The module is perfect for those who value eco-conscious energy production without compromising performance.

The Deka Solar Valve-Regulated Gel Monobloc series offers reliable, versatile, maintenance-free power. The thixotropic gel enables these batteries to be completely spill proof providing many available options for installation. The gelled electrolyte gives more protection to the battery plates and is better suited for deep cycle discharge. With longer discharge and less charging time, these batteries are ideal for many renewable energy applications.

Specifications:

• Nominal Voltage (V) 12V
• Capacity at C/100 210Ah
• Capacity at C/20 183Ah
• Weight 136.6 lbs. (62 kg)
• Plate Alloy Lead Calcium
• Posts Forged Terminals & Bushings
• Container/Cover Polypropylene
• Operating Temperature Range -76°F (-60°C) – 140°F (60°C)

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 12/14/16K-SG, a hybrid inverter, is suitable for residential and light commercial use, maximizing the self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It is equipped with an RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 290A.
• Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system.
• Support storing energy from diesel generators.
• 48V low voltage battery, safe and reliable
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuring the non-inverter type air conditioner works well.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

Higher yields / Safe & Reliable / Smart / User-friendly

SUN 12/14/16K-SG, a hybrid inverter, is suitable for residential and light commercial use, maximizing the self-consumption rate of solar energy and increasing your energy impendence.   During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

It is equipped with an RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 290A.
• Max.16pcs parallel
• DC couple and AC couple to retrofit existing solar system.
• Support storing energy from diesel generators.
• 48V low voltage battery, safe and reliable
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuring the non-inverter type air conditioner works well.

Technical Specifications

Unmatched Performance for Energy Optimization

Experience peak efficiency in energy management with the DEYE 16 kW Three Phase 3 MPPT Hybrid Inverter – SUN-16K-SG05LP3E-EU. Specifically designed to empower solar energy systems, this advanced inverter offers groundbreaking technology that bridges high output with exceptional reliability. Whether you’re powering a residential property or a larger commercial setup, this is the ideal solution for ensuring optimal energy utilization.

Advanced Three MPPT Technology

At the core of this hybrid inverter lies its state-of-the-art MPPT (Maximum Power Point Tracking) technology. With three MPPT channels, the DEYE 16 kW inverter guarantees precise tracking and harvesting of solar energy even in challenging weather conditions. By maximizing the energy captured from your solar panels, you can significantly reduce energy waste and enhance overall system performance over time.

Durable and Versatile with Three-Phase Power

Built for flexibility and durability, the DEYE 16 kW Hybrid Inverter supports three-phase power output, catering to high-demand energy systems with seamless integration. This feature ensures compatibility with both residential and industrial applications, delivering consistent, uninterrupted power supply regardless of your operational scale. Its robust design ensures long-lasting performance and protection against environmental stressors.

Why Choose DEYE’s Hybrid Solution?

The SUN-16K-SG05LP3E-EU is more than an inverter – it’s a strategic energy investment for those seeking reliability, efficiency, and adaptability. With hybrid capabilities, it effortlessly connects solar, grid, and battery systems, providing you with greater autonomy and control over your power consumption. Additionally, its intuitive system design makes monitoring your energy output a hassle-free experience.

Transform your energy management strategy with the DEYE 16 kW Three Phase 3 MPPT Hybrid Inverter. Engineered for superior performance and longevity, it’s the perfect partner for harnessing sustainable energy. Don’t miss out on this cutting-edge solution tailored to meet your energy needs with utmost efficiency.

Higher yields / Safe & Reliable / Smart / User-friendly

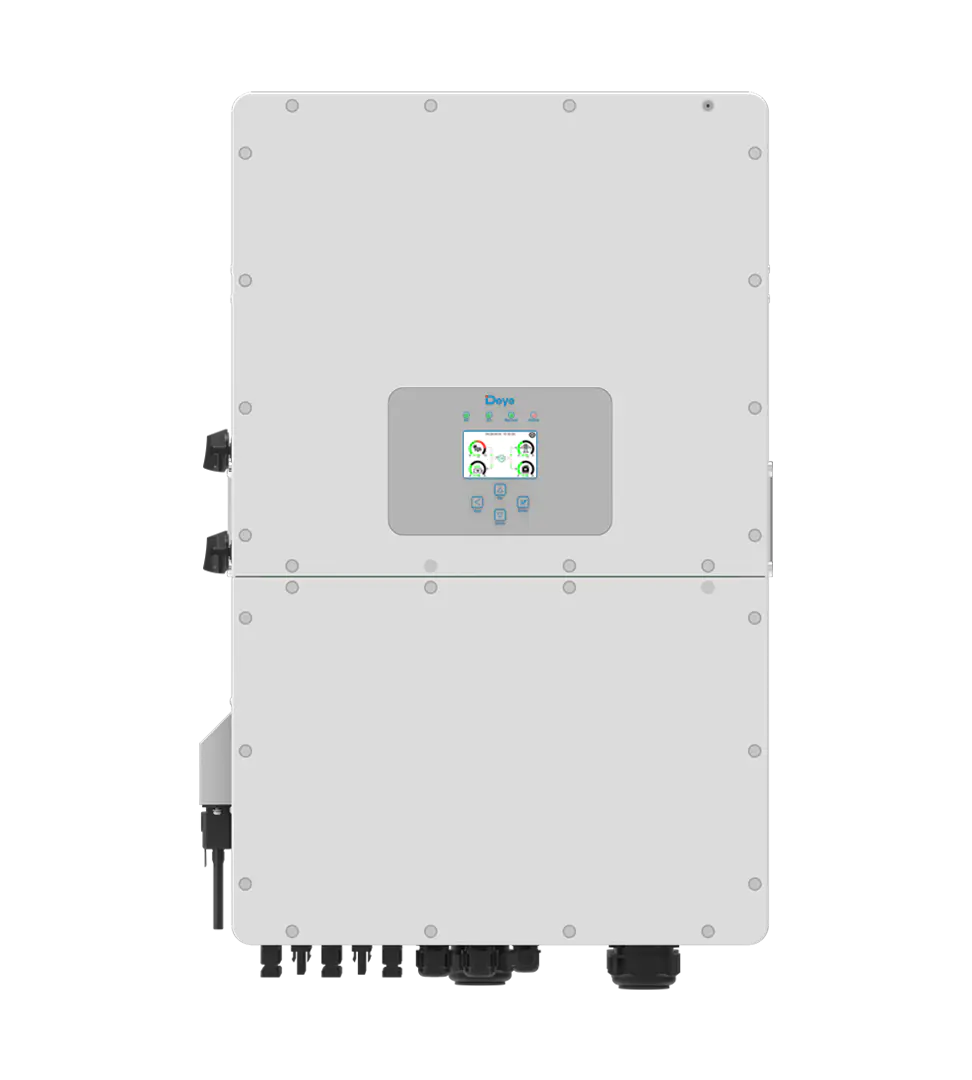

SUN-20K-SG05LP3-EU-SM2 is a brand new three-phase hybrid inverter with a low-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

Key Features

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• AC couple to retrofit existing solar system
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 350A
• Support storing energy from diesel generator
• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-25K-SG01HP3-EU-BM2 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC coupled and AC coupled to retrofit existing solar system.
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generators.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-30K-SG01HP3-EU-BM2/3/4 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC coupled and AC coupled to retrofit existing solar system.
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generators.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-40K-SG01HP3-EU-BM4 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC coupled and AC coupled to retrofit existing solar system.
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generators.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-50K-SG01HP3-EU-BM4 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC coupled and AC coupled to retrofit existing solar system.
• Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generators.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single-phase and three-phase parallel applications and the Max. parallel units are up to 16 PCs.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 190A.
• Max.16pcs parallel
• DC coupled and AC coupled to retrofit existing solar system.
• Support storing energy from diesel generators.
• Max. battery charge efficiency of 95.4%
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
• Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO, etc.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

The series, SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single-phase and three-phase parallel applications and the Max. parallel units are up to 16 PCs.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree
• 6 time periods for battery charging/discharging
• Max. charging/discharging current of 190A.
• Max.16pcs parallel
• DC coupled and AC coupled to retrofit existing solar system.
• Support storing energy from diesel generators.
• Max. battery charge efficiency of 95.4%
• Unique Smart Load application and Grid peak shaving function
• 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
• Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO, etc.

Technical Specifications

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-80K-SG02HP3-EU-EM6 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

Technical Specifications

Battery Input Data

• Model: SUN-80K-SG02HP3-EU-EM6
• Battery Type: Lithium-ion
• Battery Voltage Range (V): 160-1000
• Max. Charging Current (A): 80+80
• Max. Discharging Current (A): 80+80
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• Number of Battery Input: 2

PV String Input Data

• Max. PV Access Power (W): 160000
• Max. PV Input Power (W): 128000
• Max. PV Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Voltage Range (V): 150-850
• Rated PV Input Voltage (V): 650
• Max. Operating PV Input Current (A): 36+36+36+36+36+36
• Max. Input Short-Circuit Current (A): 54+54+54+54+54+54
• No. of MPP Trackers/
  No. of Strings MPP Tracker: 6/2+2+2+2+2+2

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 80000
• Max. AC Input/Output Apparent Power (VA): 88000
• Rated AC Input/Output Current (A): 121.3/115.9
• Max. AC Input/Output Current (A): 133.4/127.6
• Max. Continuous AC Passthrough (grid to load) (A): 200
• Peak Power (off-grid) (W): 1.5 times of rated power, 10s
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range (Hz): 50/45-55, 60/55-65
• Grid Connection Form: 3L+N+PE
• Total Current Harmonic Distortion THDi: <3% (of nominal power)
• DC Injection Current: <0.5% In

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.0%
• MPPT Efficiency: >99%

Key Features
• Operating Voltage: 120VDC – 750VDC
• Nominal Charge / Discharge Current: 100A
• Maximum Charge / Discharge Current: 125A
• DC Input Rating: 12VDC / 4.15A
• Operating Temperature Range: -20°C to 55°C
• Ingress Protection: IP20

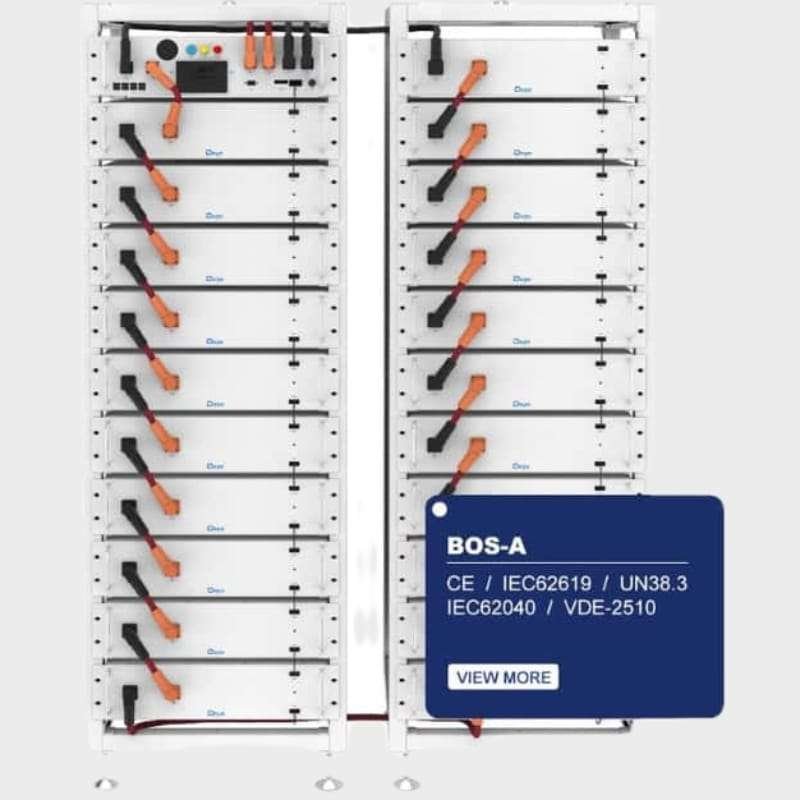

BOS-A is a high-performance embedded LiFePO4 battery module that offers quick installation and maintenance. With advanced safety features, intelligent BMS and eco-friendly design, it is an ideal choice for power backup and renewable energy storage. BOS-A is the ultimate solution for small-scale commercial and industrial energy storage systems (ESS). Designed for efficiency and reliability, this advanced battery system caters to a variety of power management needs while providing a sustainable energy solution.

Key Features:

• High Performance: With a capacity of 7.68 kWh and the potential for >6000 cycles, the BOS-A guarantees long-lasting energy support, ensuring that your operations run smoothly without interruptions.
• Intelligent Management: Equipped with smart cloud-based monitoring, the BOS-A enables real-time tracking of your energy consumption and battery status, optimizing performance and lowering electricity bills.
• Flexible Configuration: Capable of supporting multiple racks with up to 13 battery modules in series, this system provides adaptability to meet your growing energy demands.
• Effortless Installation: The lightweight design, at just 70 kg per module, paired with a detailed user manual, ensures a straightforward installation process.
• Safety First: Featuring an intelligent battery management system (BMS) and comprehensive safety protocols to prevent over-discharge, over-charge, and short circuits, the BOS-A prioritizes the longevity and safety of your power system.
• Robust Design: Built to withstand various environmental conditions, the BOS-A has a high IP rating and can function effectively in a range of temperatures, ensuring durability in any setting.
• Warranty Assurance: Enjoy peace of mind with a 10-year warranty, providing you with a full replacement guarantee for up to 6000 cycles of use.

Technical Specifications:

• Cell Chemistry: LiFePO₄
• Battery Dimensions: 601.5 mm x 520 mm x 135 mm
• Weight: Approx. 70 kg per rack
• Energy Efficiency: Over 90% at standard operational conditions
• Communication Port: CAN2.0, offering seamless integration with other Deye devices for a comprehensive energy management system.

Installation and Support:

The BOS-A is best suited for rack-mounted environments, with installation options available in various settings, including commercial buildings and industrial facilities. Comprehensive support is available through the Deye Cloud platform, allowing users to connect, monitor, and control their energy systems conveniently from any device.

Choose the Deye BOS-A for a smart, efficient, and reliable energy storage solution that adapts to your needs while enhancing your energy management capabilities.

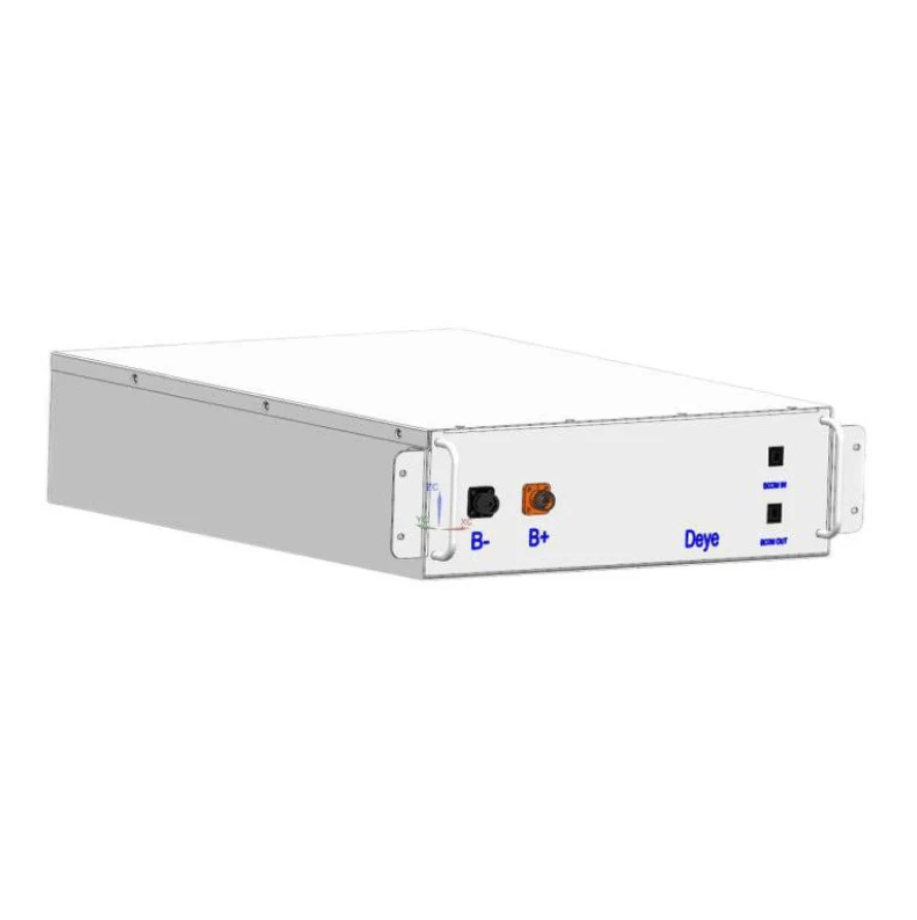

The Deye BOS-G series is a state-of-the-art LiFePO4 battery system designed to provide reliable, safe, and efficient energy storage for your home or business. With a wide range of configurations and capacities, the BOS-G series offers a versatile solution to meet your specific energy needs.

The BOS-G series utilizes advanced LiFePO4 cell technology, known for its superior thermal stability, high cycle life, and excellent safety profile. Each battery module has a nominal capacity of 100Ah and energy of 5.12 kWh, allowing you to scale your system to perfectly match your energy storage requirements.

With a recommended depth of discharge (DOD) of 90% and a cycle life of ≥6000 cycles at 25°C, the BOS-G series ensures maximum usable energy and long-term performance. The system also features a wide operating temperature range of -20°C to 55°C, making it suitable for various environments.

The BOS-G series comes equipped with a high-voltage box (HVB750V/100A) that enables seamless integration with your existing power system. The high-voltage box supports an operating voltage range of 120-750 Vdc and a maximum charge/discharge current of 125A, ensuring efficient power transfer and compatibility with a wide array of inverters and chargers.

Safety is a top priority with the BOS-G series. The system features multiple layers of protection, including over-voltage, under-voltage, over-current, short-circuit, and temperature monitoring. The IP20-rated enclosure provides protection against dust and debris, while the built-in status indicators keep you informed of the system’s operating status at all times.

Deye’s commitment to quality and customer satisfaction is evident in the 10-year warranty provided with the BOS-G series. With its robust design, advanced features, and exceptional performance, the Deye BOS-G LiFePO4 battery system is the ideal choice for those seeking a reliable and efficient energy storage solution.

SE-G5.1Pro-B

• Rugged, Long-lasting, Daily Use Battery
• Safe Lithium Iron Phosphate Technology (LifeP04)
• 98% Round Trip Efficiency
• Flexible Mounting Options
• Remote Monitoring including wifi, modbus, and canbus
• BMS Monitors & Balances Individual Cells
• NRTL certified to UL9540 and UL9540a standards

Specifications:

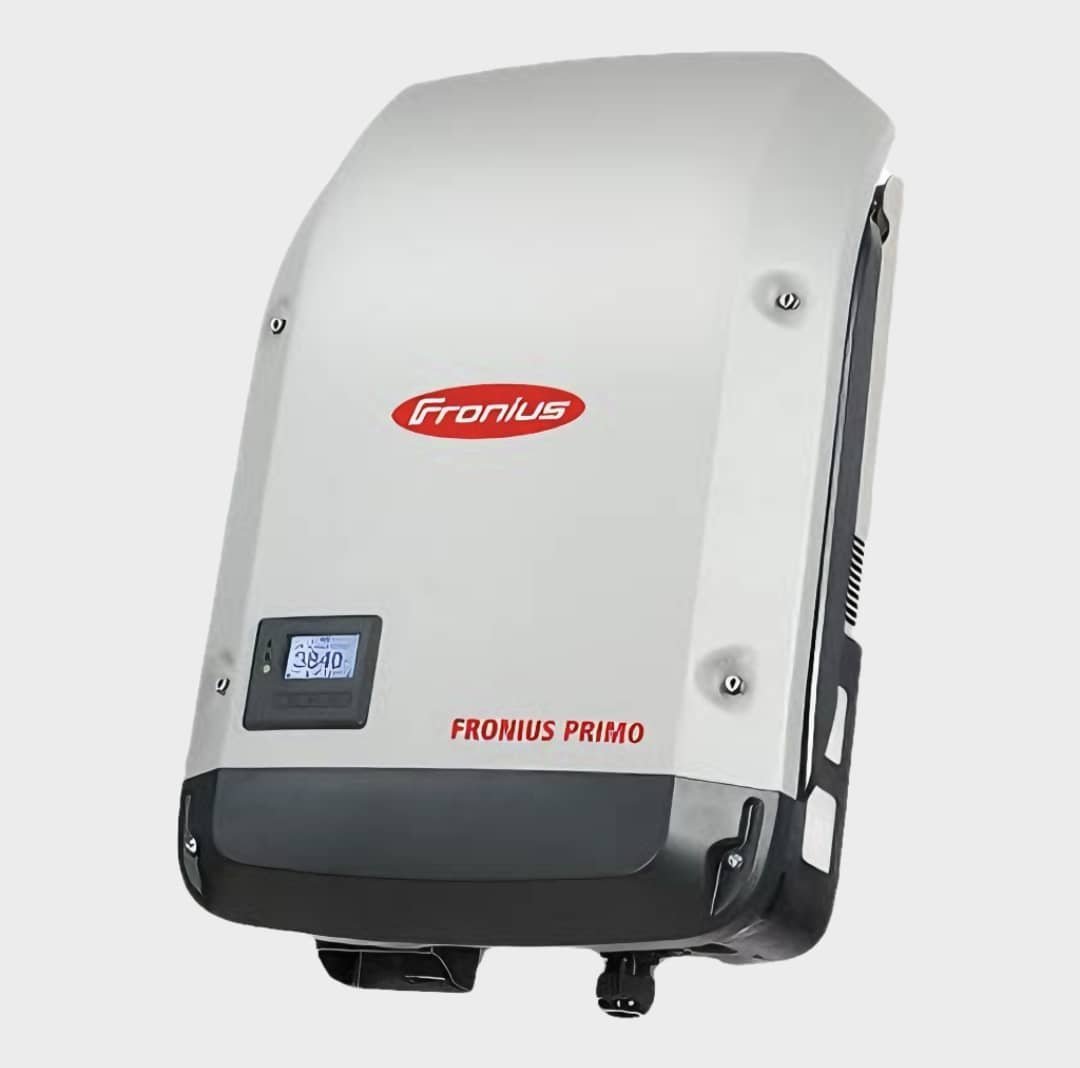

THE COMMUNICATIVE INVERTER FOR OPTIMISED ENERGY MANAGEMENT.

With power categories ranging from 3.0 to 8.2 kW, the Fronius Primo perfectly complements the SnapINverter generation. This single-phase, transformerless device is the ideal inverter for private households. Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance as easy as possible. The communication package included as standard with WLAN, energy management, numerous interfaces, and much more besides, makes the Fronius Primo a communicative inverter for owner-occupiers.

MAXIMUM FLEXIBILITY FOR THE APPLICATIONS OF TOMORROW.

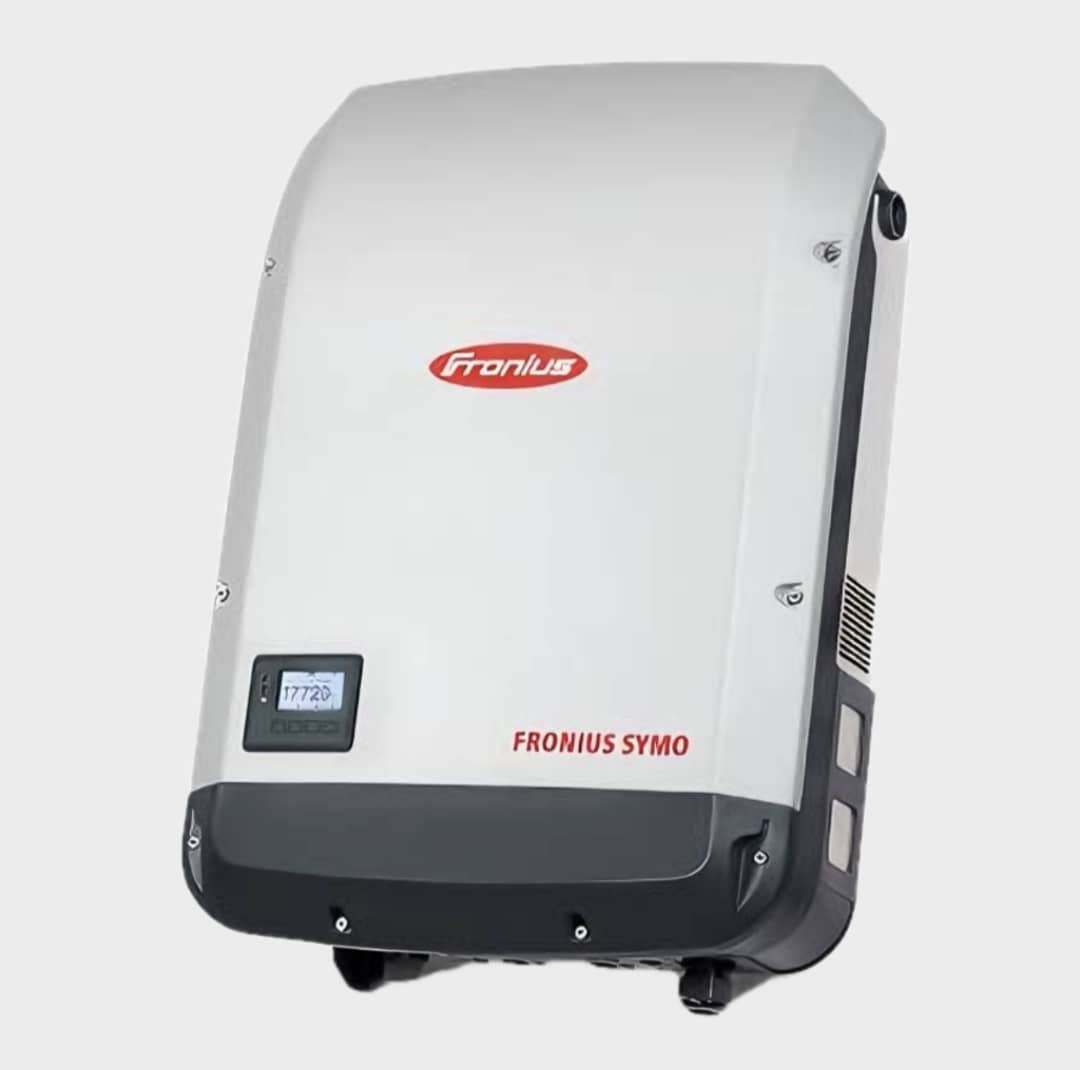

With power categories ranging from 3.0 to 27.0 kW, the transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components makes the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualization of consumption.

MAXIMUM FLEXIBILITY FOR THE APPLICATIONS OF TOMORROW.

With power categories ranging from 3.0 to 27.0 kW, the transformer less Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualisation of consumption.

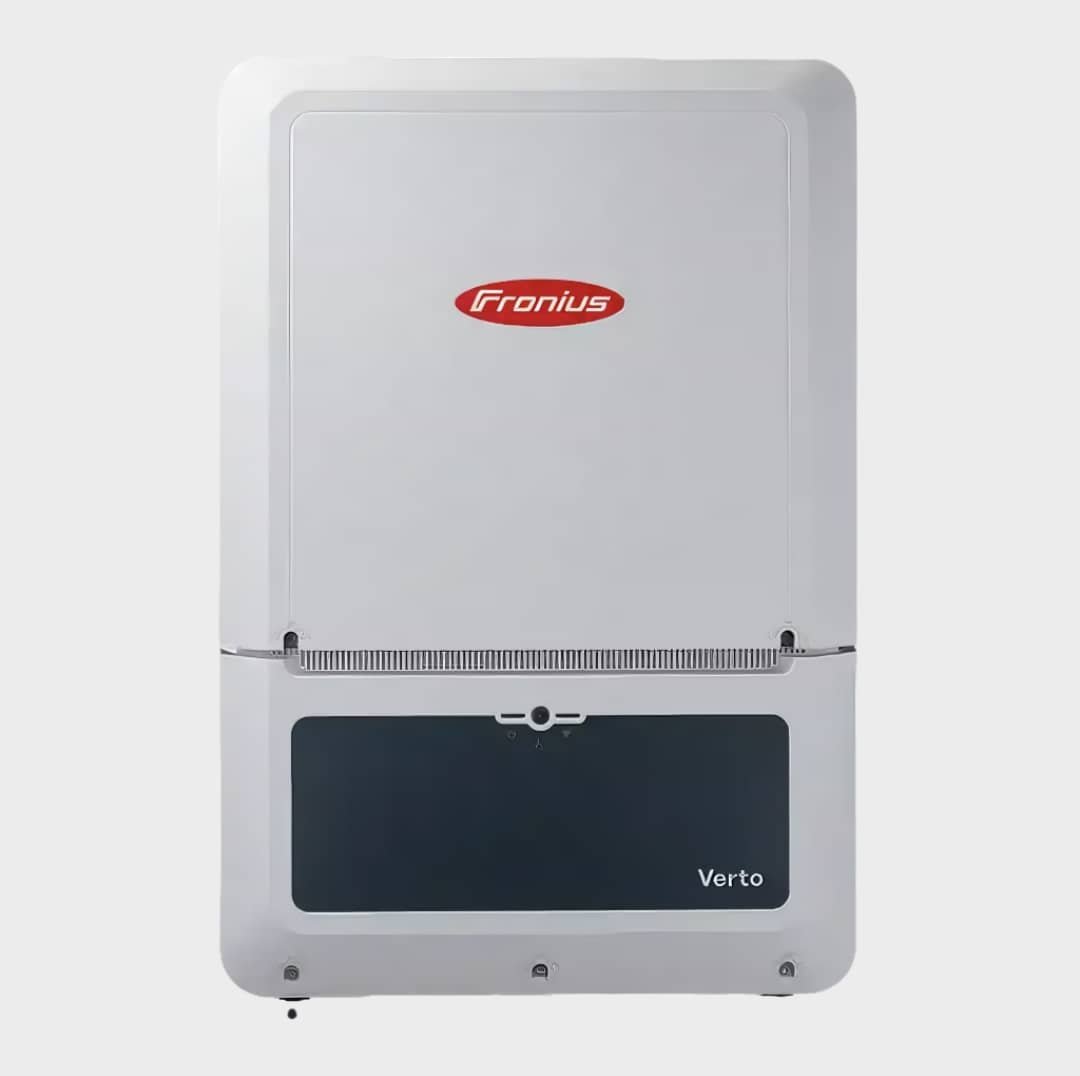

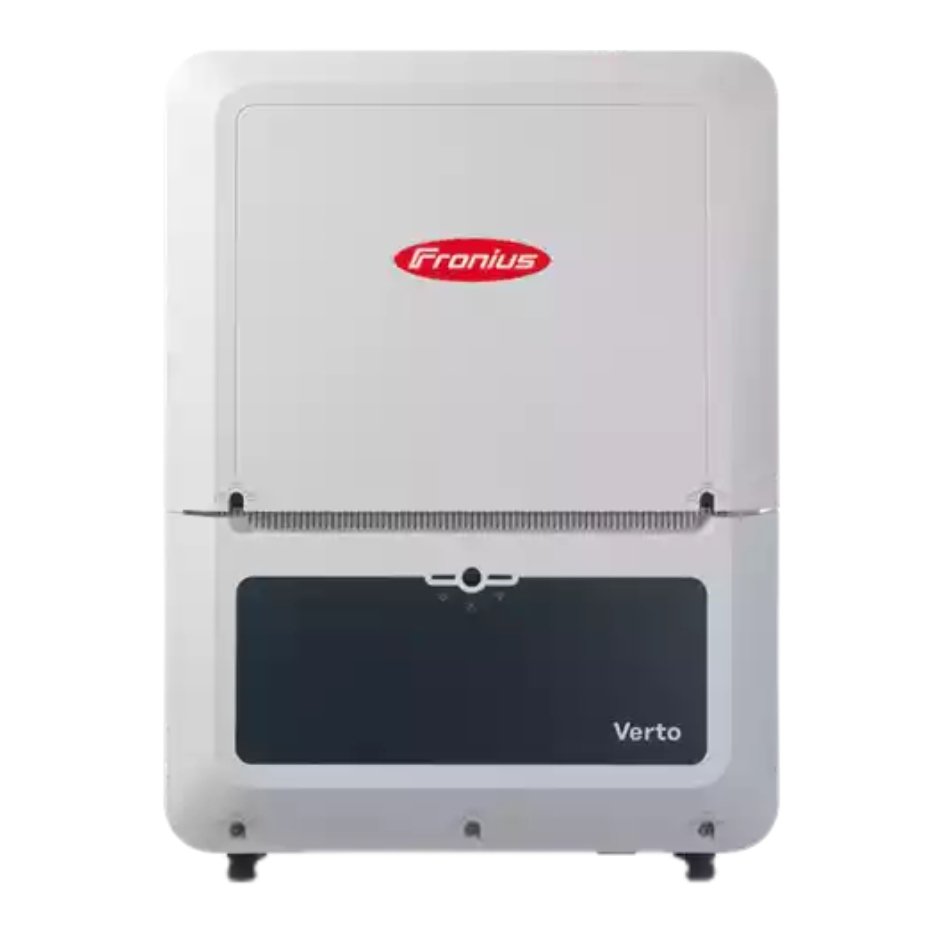

Power your commercial solar installation with confidence using the Fronius Verto 33.3, a robust and highly efficient string inverter engineered for optimal performance and maximum energy yield. Building on Fronius’s legacy of innovation, the Verto 33.3 is designed to meet the demanding requirements of medium to large-scale commercial and industrial photovoltaic systems.

Key Features & Benefits:

* Exceptional 33.3 kW Power Output: Delivers substantial power for significant energy generation, making it ideal for a wide range of commercial applications.
* High Efficiency for Maximized Yield: Engineered to convert more solar DC power into usable AC electricity, ensuring you get the most out of your solar array and achieve faster ROI.
* Robust & Reliable Design: Built with Fronius’s renowned quality and durability, the Verto 33.3 is designed for long-term, reliable operation in various environmental conditions.
* Flexible System Design: Features multiple Maximum Power Point Trackers (MPPTs) for flexible system design, optimizing energy harvest even with partial shading or varying string orientations.
* Advanced Grid Management Functions: Equipped with advanced grid support functionalities, ensuring seamless integration with the grid and compliance with local regulations.
* Integrated Data Communication: Comes with integrated data communication for easy monitoring of system performance via the Fronius Solar.web platform, providing real-time insights and remote access.
* Easy Installation & Servicing: Designed with installer convenience in mind, featuring a user-friendly interface and accessible components for straightforward setup and maintenance.
* Suitable for Diverse Commercial Applications: Perfect for rooftops of businesses, industrial facilities, agricultural buildings, and other large-scale commercial solar projects.
* Fronius Quality and Support: Backed by Fronius’s established reputation for innovation, quality, and comprehensive customer support.

Technical Specifications:

* AC Nominal Power: 33.3 kW
* Number of MPP Trackers: 4
* Max. DC Voltage: 1000 V
* Dimensions (H x W x D): 730 x 540 x 278
* Weight: 35.20 kg
* Cooling: Active cooling technology
* Protection Class: IP66

Invest in the Fronius Verto 33.3 inverter for a powerful, efficient, and dependable solution that will drive the success of your commercial solar investment.

The HT 1100 Vdc Series 73-120 kW is GoodWe’s new string inverter for C&I and small utility projects to boost your power and profit. Generate your solar power and make use of it with this centerpiece of the clean energy system. The HT Series seamlessly incorporates its technical strengths designed to achieve higher savings in the installation, enhance productivity with increased energy yields, realize high power density and diversify available monitoring options. It takes safety to the top possible level in accordance with the strictest industry standards and runs efficiently even under the harshest environmental conditions. This unrivalled set of features was conceived to ensure the lowest levelized cost of electricity (LCOE) to offer this ideal choice for commercial and industrial PV systems.

• Model: GW120K-HT
• Max. Input Voltage (V): 1100
• MPPT Operating Voltage Range (V): 180 ~ 1000
• Start-up Voltage (V): 200
• Nominal Input Voltage (V): 600
• Max. Input Current per MPPT (A): 30
• Max. Short Circuit Current per MPPT (A): 45
• Number of MPPTs: 12
• Number of Strings per MPPT: 2

The HT 1100 Vdc Series 73-120 kW is GoodWe’s new string inverter for C&I and small utility projects to boost your power and profit. Generate your solar power and make use of it with this centerpiece of the clean energy system. The HT Series seamlessly incorporates its technical strengths designed to achieve higher savings in the installation, enhance productivity with increased energy yields, realize high power density and diversify available monitoring options. It takes safety to the top possible level in accordance with the strictest industry standards and runs efficiently even under the harshest environmental conditions. This unrivalled set of features was conceived to ensure the lowest levelized cost of electricity (LCOE) to offer this ideal choice for commercial and industrial PV systems.

The GoodWe SMT Series three-phase inverter is ideal for commercial rooftop system solutions. The SMT series achieves maximum efficiency of 98.8% and features unique design highlights, including solid capacitors, fuse-free design, and optional Arc Fault Circuit Interrupter (AFCI) function. These new features ensure a longer lifespan and a higher safety level of operation, allowing for an improved user experience. With a compact design and weight of just 40 kg, the SMT series is more convenient to install. With a maximum DC input voltage of 1100V, a wider MPPT range for complex rooftops, and a start-up voltage of 180V, the SMT series guarantees an earlier generation of power and a longer working time to maximize long-term returns and profitability in safe operating conditions.

The GoodWe SMT Series three-phase inverter is ideal for commercial rooftop system solutions. The SMT series achieves maximum efficiency of 98.8% and features unique design highlights, including solid capacitors, fuse-free design, and optional Arc Fault Circuit Interrupter (AFCI) function. These new features ensure a longer lifespan and a higher safety level of operation, allowing for an improved user experience. With a compact design and weight of just 40 kg, the SMT series is more convenient to install. With a maximum DC input voltage of 1100V, a wider MPPT range for complex rooftops, and a start-up voltage of 180V, the SMT series guarantees an earlier generation of power and a longer working time to maximize long-term returns and profitability in safe operating conditions.

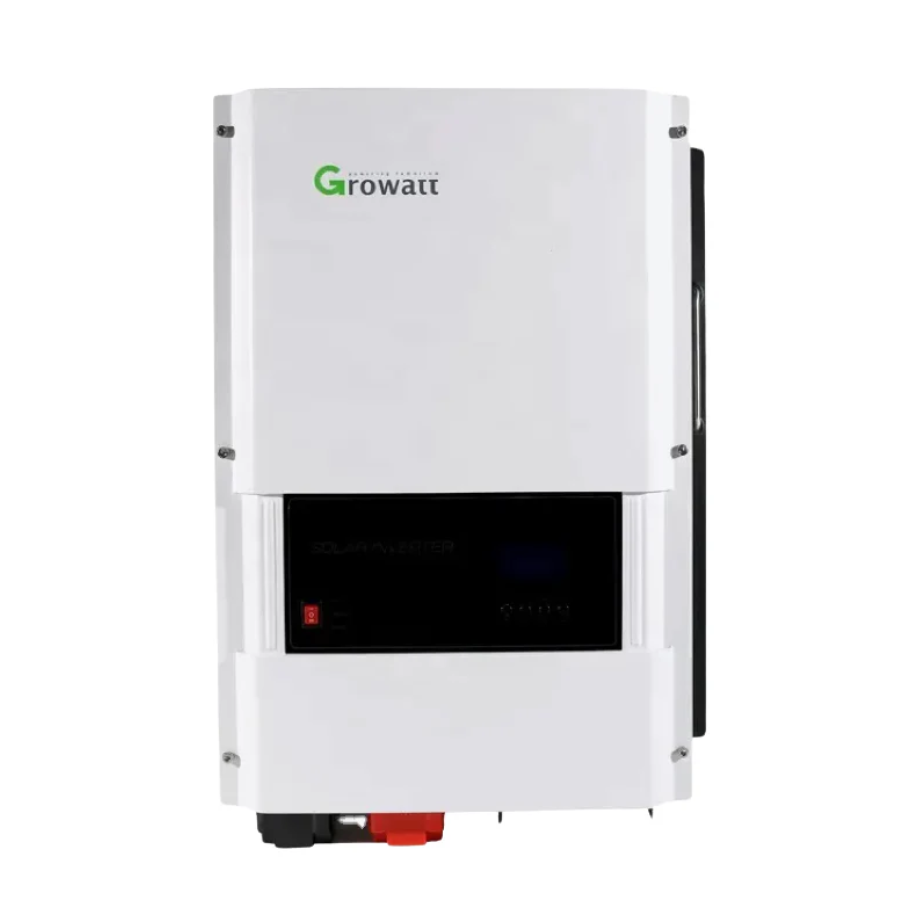

The Growatt SPF12000KT HVM Hybrid Inverter is a versatile and powerful solution designed for off-grid applications where reliable backup power and efficient energy self-consumption are essential. This 12kW, 48V inverter integrates advanced technology with user-friendly features to enhance any off-grid power system.

Ideal for residential or commercial settings that require a dependable power supply independent of the grid, including rural homes, remote facilities, and areas with frequent power disruptions. Offering seamless integration of solar and grid power with prioritization controls, the Growatt SPF12000KT HVM ensures energy availability and optimizes power usage, reducing reliance on traditional power sources and lowering energy costs.

Key features

• Integrated MPPT charge controller: Maximizes the efficiency of solar panels by ensuring that the solar array is operating at its optimal power point, enhancing overall energy production.
• High capacity and scalability: Provides a robust 12 kW power output with options to parallel multiple units for increased capacity and redundancy.
• Built-in low frequency transformer: Features a pure copper transformer that ensures stability and safety in power conversion, suitable for sensitive electronic devices.
• Configurable input priority: Allows users to set either grid or solar input as the priority source, enabling flexible energy management and improved self-sufficiency.
• Advanced monitoring options: Includes optional WIFI/GPRS for remote monitoring, allowing users to manage system settings and monitor performance remotely via smartphone or computer.
• LED display: Offers a clear, user-friendly interface for real-time system information and operational adjustments.
• Robust design: Engineered to perform in various environmental conditions, ensuring reliability and longevity of the system.

Growatt is renowned for its commitment to innovation and quality in the renewable energy sector. The SPF12000KT HVM model exemplifies Growatt’s dedication to providing advanced energy solutions that meet the growing needs of global consumers for sustainable and reliable power alternatives.

Specifications

• Capacity: 12 kW / 48V
• Technology: Hybrid inverter with low frequency transformer
• Monitoring: Optional WIFI/GPRS
• Display: LED interface
• Installation: Configurable for grid or solar priority; parallel capability for larger systems

The Growatt SPF12000T HVM Hybrid Inverter is an exceptional choice for anyone seeking to enhance their energy independence with a reliable, high-performance solution. With its flexible configuration, durable design, and smart monitoring capabilities, this inverter offers an efficient way to manage power needs while supporting a sustainable future. Whether for home, business, or remote application, the Growatt SPF12000T HVM stands out as a top-tier choice in off-grid energy solutions.

Why choose Growatt SPF 5000 ES Off-Grid Inverter?

Monitoring: The system can also be remotely monitored using a WiFi or GPRS dongle. Parallel scaling is supported.

Charge controller: The MPPT charge controller lowers the voltage of panels to the required level to charge the battery. The current is raised with the same ratio as the voltage is lowered.

This continuously happens during the day to optimize the use of energy. This is dependent on the power of the sun, the angle, and the temperature and health of the panels.

The charge controller also makes sure the battery will not be overcharged, but also not fully discharged.

Capacity expansion: The system’s capacity can be expanded up to 30kW by combining a total of six of these units in parallel operation.

The CU 200 control unit is a combined status, control, and communication unit specially developed for the SQFlex system. Furthermore, the CU 200 enables the connection of a level switch.

The CU 200 incorporates cable entries for:

Communication between the CU 200 and the pump takes place via the pump power supply cable. This is called mains borne signalling (or Power Line Communication), and this principle means that no extra cables between the CU 200 and the pump are required. It is possible to start, stop and reset the pump by means of the on/off button.

The CU 200 control unit offers:

The following indications allow the operation of the pump to be monitored:

The CU 200 offers the following alarm indications:

In addition, the CU 200 shows the symbols of the energy supply options.

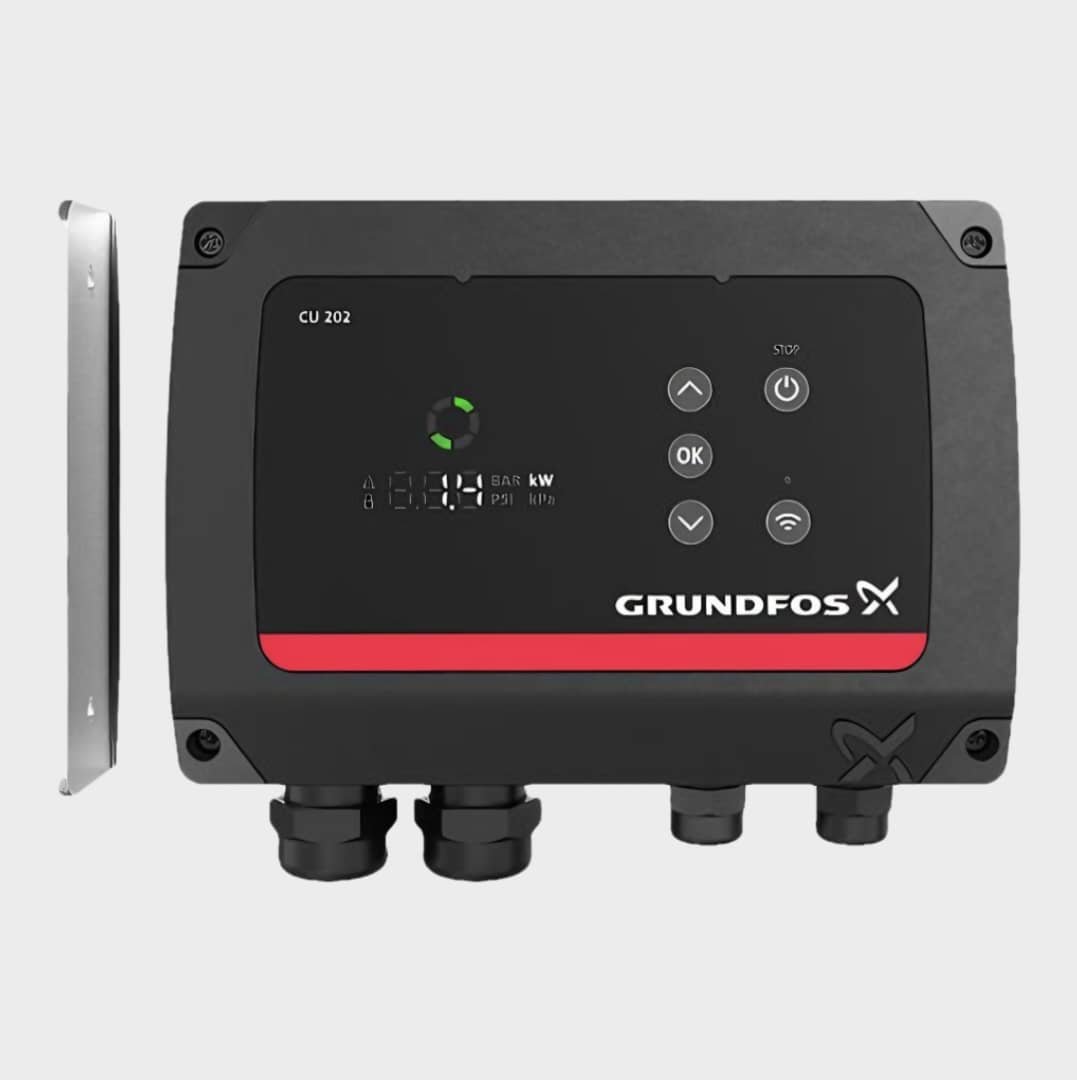

CU 202 is designed for monitoring and controlling SQFlex submersible pumps in solar applications.

The simple user interface and built-in Bluetooth module ensure easy installation and configuration. The Bluetooth connection to the Grundfos GO app offers extensive setup and monitoring options.

CU 202 is pre-configured for tank filling, the most used application, offering a plug-and-pump solution, which saves time on commissioning. For other applications, the controller provides several control modes, which can be easily selected and set through the Grundfos GO app. Grundfos GO makes the configuration easier and allows installers to set up high-performing systems.

CU 202 communicates with the pump through the power cable. This communication principle is called mains borne signaling or powerline communication and means that no additional cables are required to the pump.

Grundfos GO offers detailed information and logs that help the installer to find the root cause in failure situations. In addition, the controller can use Wi-Fi, GENIbus, or Modbus to monitor the system remotely either through Grundfos Connect or another SCADA system. Remote monitoring saves time when inspecting installations.

CU 202 is equipped with power and pump connections and offers 2 configurable inputs and outputs. Additionally, a backup battery can be added to the controller to maintain communication and measurements when solar power is insufficient.

The display of the controller shows:

The pump can be turned on and off through the display of the controller. The controller can display a read-out of the application-related data. It is also possible to adjust the setpoint. The LEDs on the display of the controller can be set to sleep mode, for example, to avoid attracting wildlife.

The following logs are available through Grundfos GO or remote monitoring:

CU 202 indicates warnings and alarms on the display of the controller. Additionally, the Grundfos GO app provides further information on these events including the recommended solutions.

IO 101

The IO 101 switch box is designed specifically for solar-powered SQFlex systems. The IO 101 enables the connection of a generator supply backup in case of insufficient solar radiation. The switching between solar power and the generator must be made manually. In case the generator is stopped manually or runs out of fuel, the IO 101 will automatically switch to the solar energy supply. The IO 101 functions as a connection box joining all necessary cables.

RSI 3×380-440V IP54 132kW 261A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 15kW 31A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 2.2kW 5.6A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 30kW 61A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 4kW 9.6A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 5.5kW 12A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

RSI 3×380-440V IP66 7.5kW 16A

Renewable Solar Inverter RSI is an off-grid solar inverter to enable end-user to use solar power for a wide range of water applications. RSI is customized specifically to be compatible with Grundfos pumps. With the built-in MPPT and various protection software, it delivers an efficient and reliable solar system solution.

RSI offers the following inputs and output:

Advanced Water Supply Solution for Medium Heads and Flow Rates

The SQF 1.2-3 SQFlex centrifugal pump is a versatile and eco-friendly solution designed for medium heads and flow rates. Perfect for various water supply needs, the SQFlex system leverages renewable energy sources — including solar and wind — to deliver exceptional performance and sustainability. With adaptability at its core, this pump integrates seamlessly into diverse installation environments while ensuring reliability and efficiency.

Innovative Technology Features for Optimal Performance

Equipped with advanced features such as built-in maximum power point tracking (MPPT), dry-running protection, voltage safeguards, and overload protection, the SQFlex system exemplifies cutting-edge design. Its wide voltage range supports both AC (90-240 V) and DC (30-300 V) power inputs, allowing users to utilize various energy sources efficiently. The direct-on-line starting method further enhances operational simplicity, ensuring ease of use for both new and experienced users.

Key materials, including stainless steel components, contribute to robust durability and corrosion resistance. The pump, impeller, rotor, and motor are all crafted from high-quality AISI 304 stainless steel, ensuring long-lasting performance even under demanding conditions. Additionally, the integrated internal thermal protection guarantees safe operation, extending the lifespan of the motor while minimizing maintenance requirements.

Technical Precision and Installation Flexibility

The SQF 1.2-3 boasts impressive technical specifications that meet diverse water supply demands. Its three technical stages and maximum operating pressure of 15 bar deliver powerful and efficient pumping capabilities. The system supports water temperature ranges from 0°C to 40°C, making it suitable for various climates and applications.

Installation is streamlined with features like a standard Rp connection (1 1/4 inch) and a minimum borehole diameter of 76 mm. Whether for residential, agricultural, or industrial use, this pump adapts easily to different setups with optimized functionality. Additional certifications, including UKCA, CE, and EAC approvals, ensure compliance with international standards, promoting peace of mind for global users.

With a net weight of 9.81 kg and shipping volume of just 0.0242 m³, the pump is as convenient to handle as it is efficient. The product’s exceptional MEI (Minimum Efficiency Index) rating further underscores its environmentally conscious design, reducing energy consumption and operational costs.

The Perfect Choice for Renewable Water Solutions

The SQF 1.2-3 SQFlex centrifugal pump combines sustainability, adaptability, and durability to deliver a reliable water supply system. Ideal for renewable energy integration, this pump helps reduce dependence on traditional energy sources while supporting environmental conservation. Its advanced features, robust construction, and wide range of certifications make it a trusted choice for homeowners, businesses, and communities seeking efficient and flexible pumping solutions. Experience performance, reliability, and sustainability with the SQF 1.2-3 SQFlex centrifugal pump.

The 3″ SQFlex pump with helical rotor is for high heads and low flow rates.

The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site.

The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.

SQF 3A-10

The 4″ SQF centrifugal pump is for low heads and large flow rates.

The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site.

The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.
