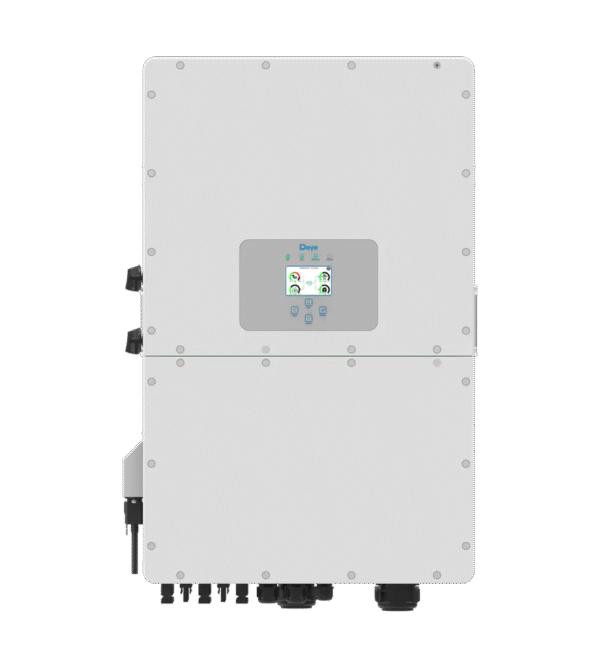

DEYE 40 kW Three Phase 3 MPPT Hybrid Inverter

(0)

7,992,500.00

The DEYE SUN-40K-SG01HP3-EU-BM4 is a brand-new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-40K-SG01HP3-EU-BM4 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • DC coupled and AC coupled to retrofit existing solar system.
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 100A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generators.

Technical Specifications

Model SUN-25K-SG01HP3-EU-BM2 SUN-30K-SG01HP3-EU-BM3 SUN-40K-SG01HP3-EU-BM4 SUN-50K-SG01HP3-EU-BM4
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 150~800V
Max. Charging Current (A) 50A+50A
Max. Discharging Current (A) 50A+50A
Number of battery input 2
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 32500W 39000W 52000W 65000W
Max. DC Input Voltage (V) 1000V
Start-up Voltage (V) 150V
MPPT Range (V) 200V-850V
Full Load DC Voltage Range (V)
450-850
360-850
360-850
450-850
Rated DC Input Voltage (V)
600
PV Input Current (A) 36A+36A 36A+36A+36A 36A+36A+36A+36A
Max. PV ISC (A) 55A+55A 55A+55A+55A 55A+55A+55A+55A
No. of MPP Trackers 2 3 4
No. of Strings per MPP Tracker 2
AC Output Data
Rated AC Output and UPS Power (W) 25000W 3000W 40000W 50000W
Max. AC Output Power (W) 27500W 33000W 44000W 55000W
Peak Power (off-grid) 1.5 times of rated power, 10 S
AC Output Rated Current (A) 38 45.6 60.8 75.8
Max. AC Current (A) 50 60 70 83.3
Max. Continuous AC Passthrough (A) 150A
Output Frequency and Voltage 50/60Hz;3L/N/PE 220/380Vac,230/400Vac
Grid Type Three Phase
DC injection current (mA) <0.5% 1n
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge protection DC Type II / AC Type II
Certifications and Standards
Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart cooling noise
Noise (dB) <45 dB
Communication with BMS RS485; CAN
Weight (kg) 60
Size (mm) 560.5W×837H×319D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
