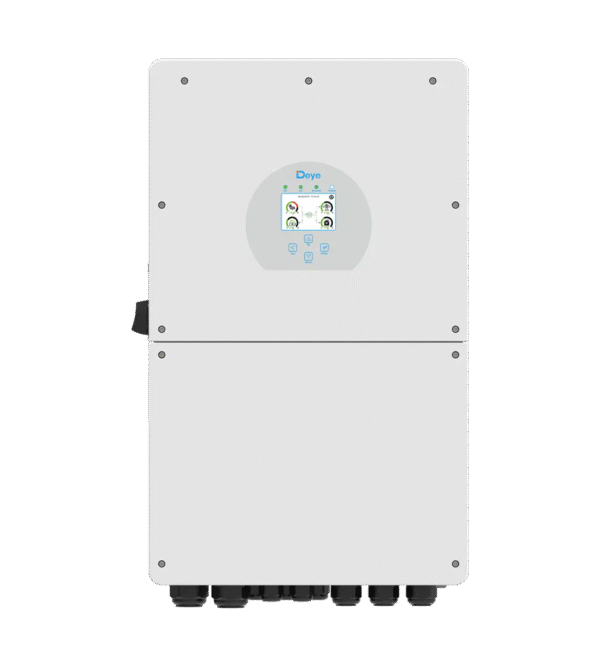

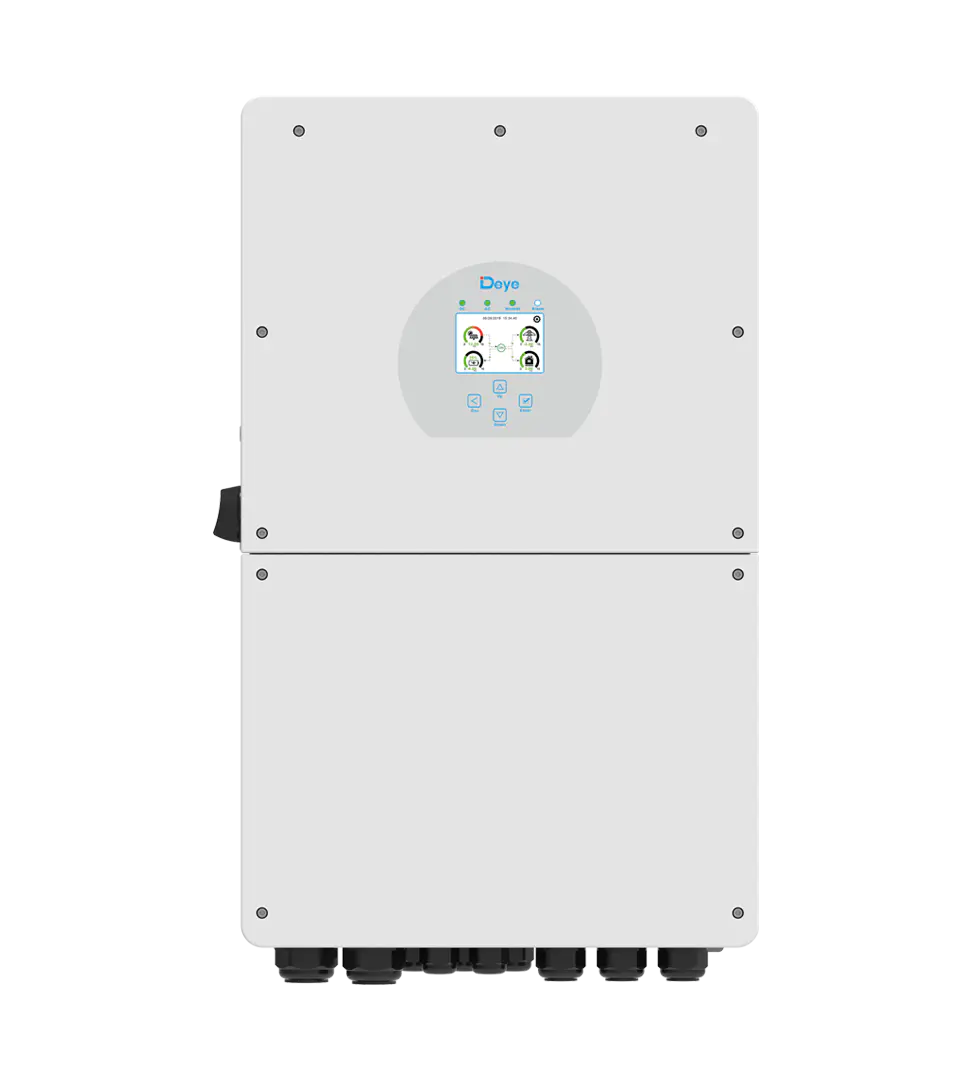

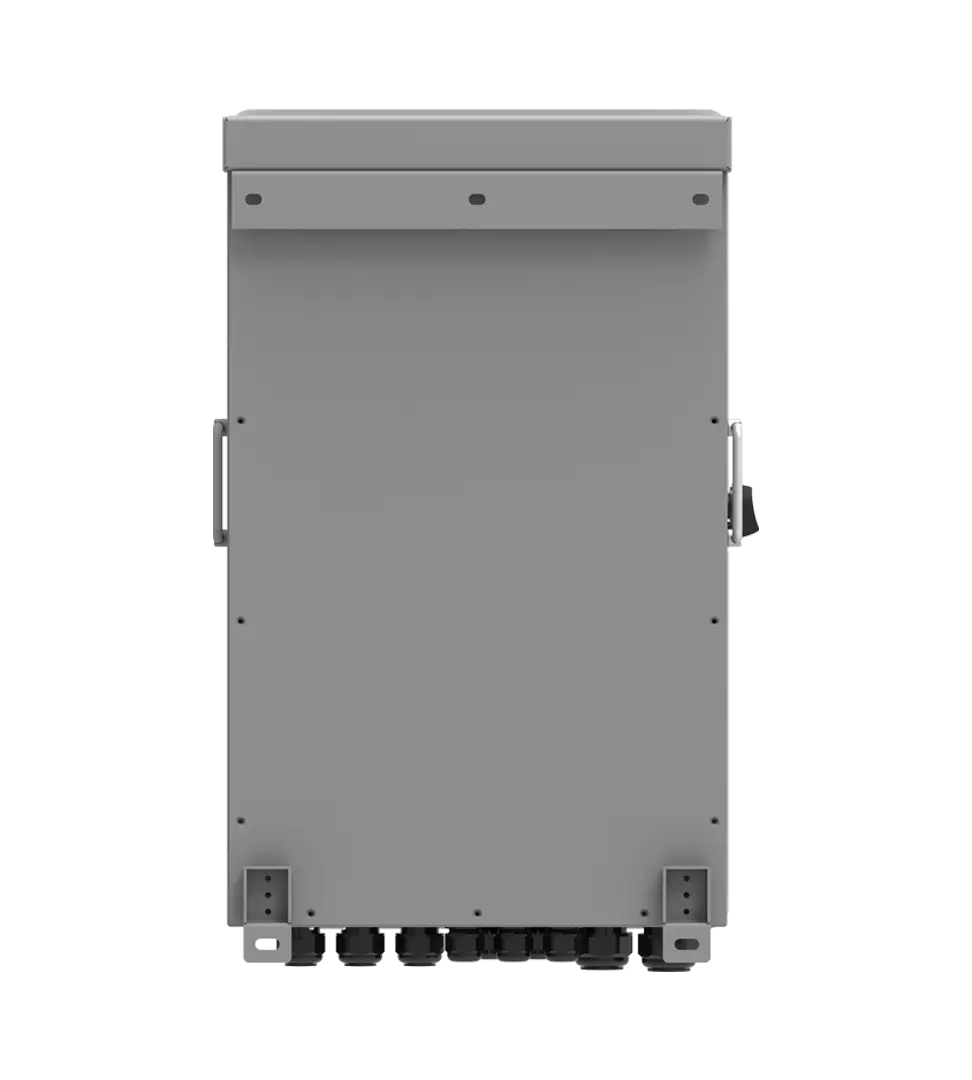

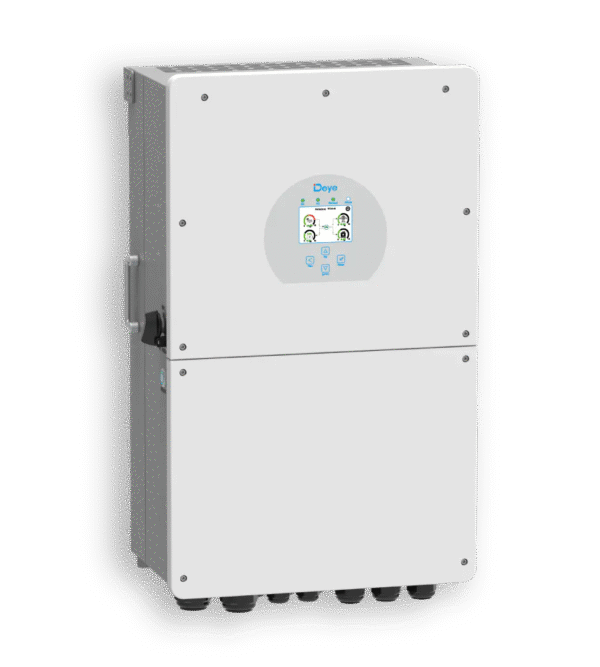

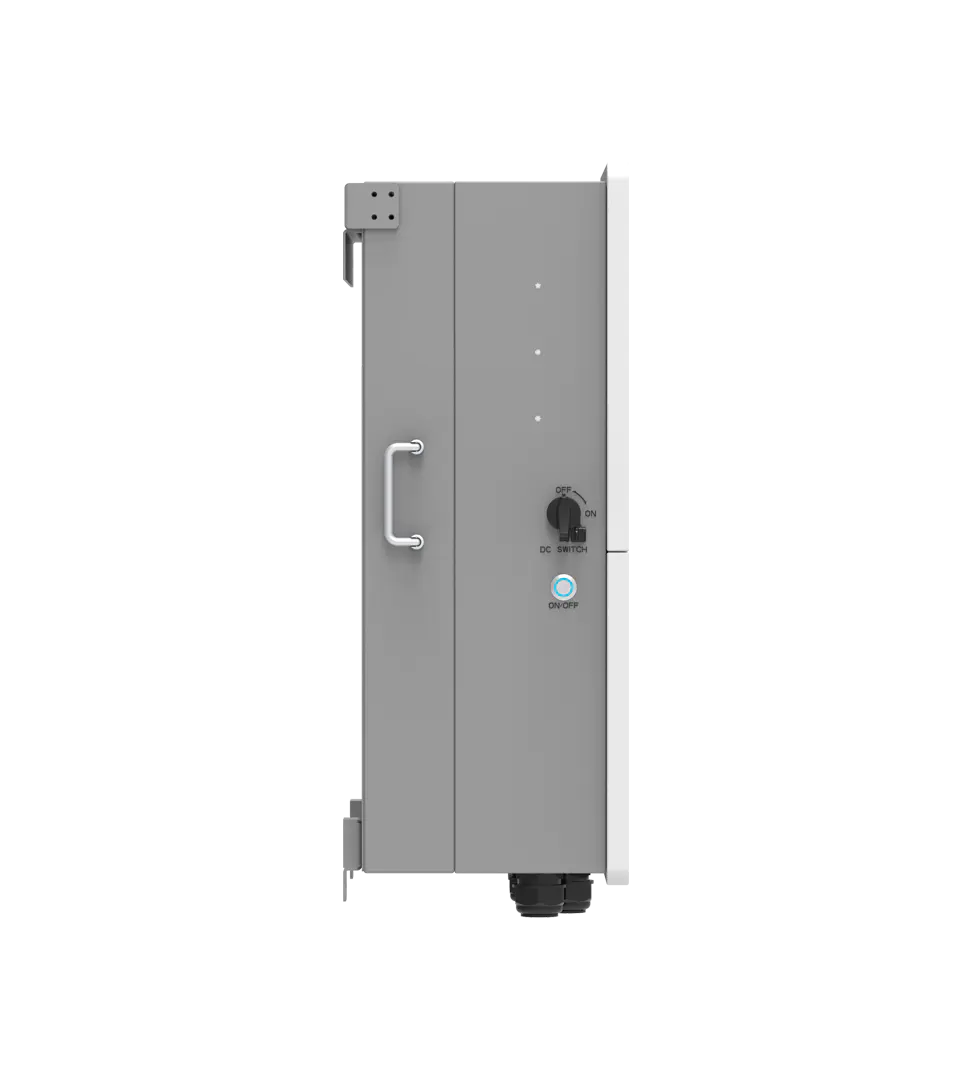

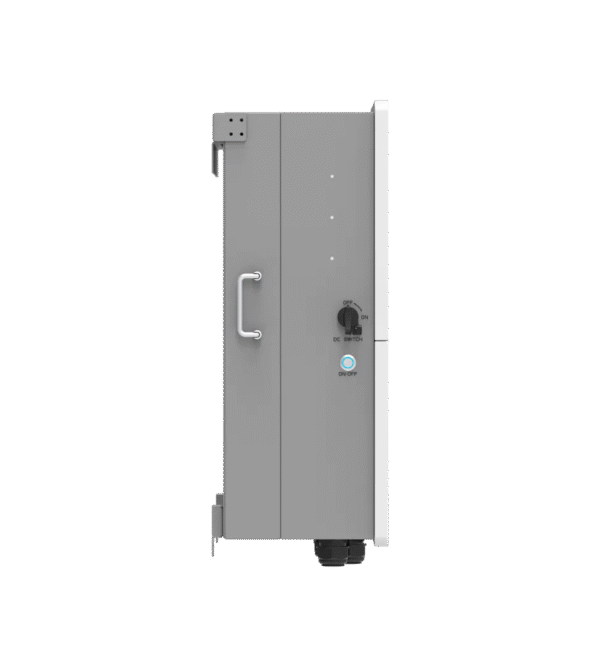

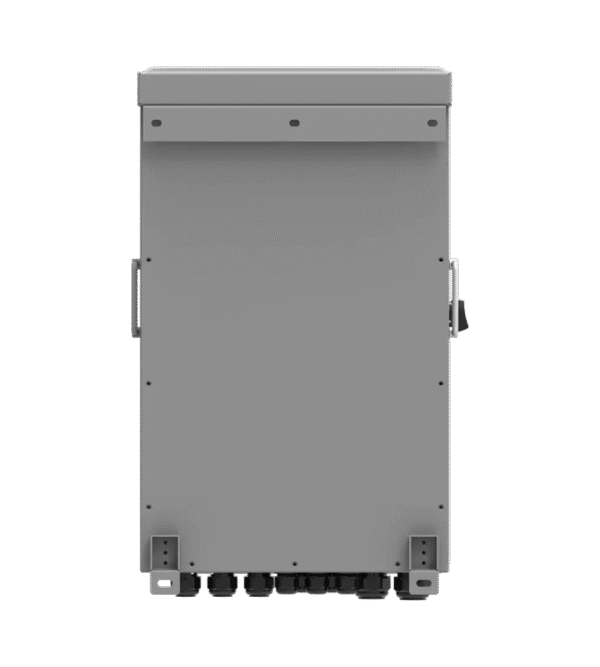

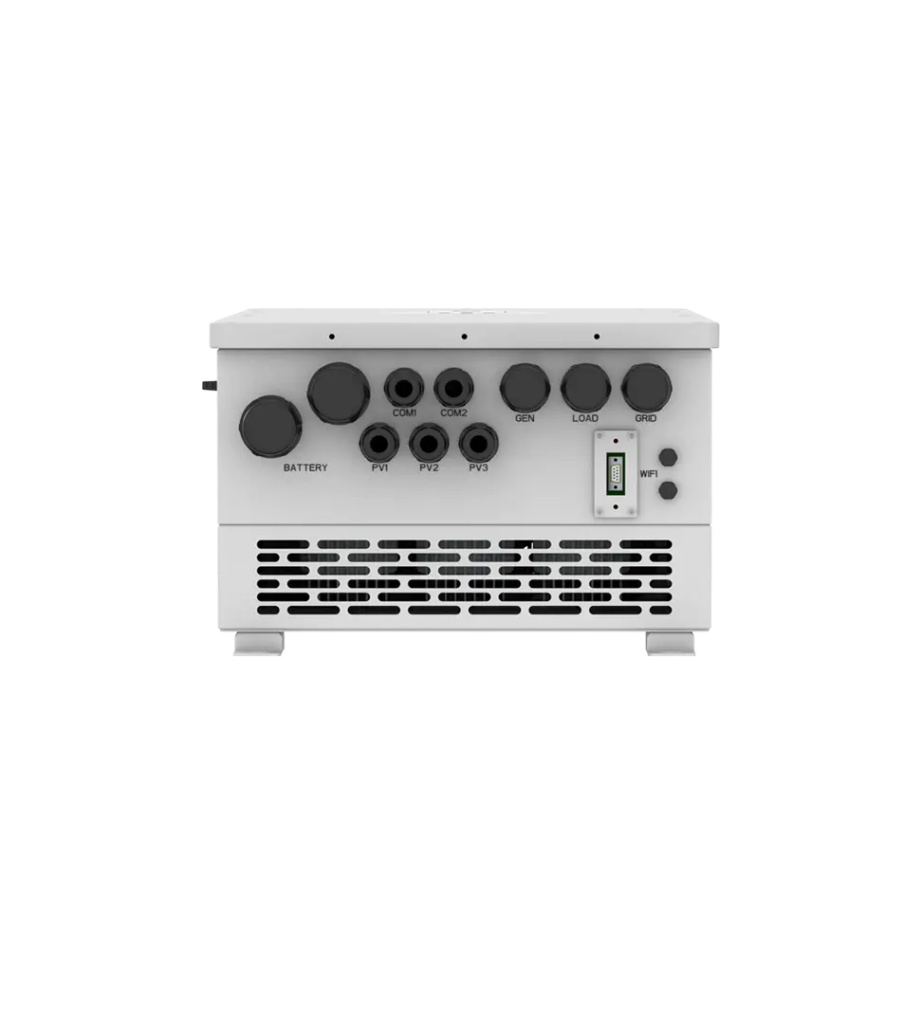

DEYE 16 kW Single Phase 3 MPPT Hybrid Inverter
₦4,370,000.00
Free Delivery
Nationwide shipping
Warranty
Manufacturer guarantee
Expert Support
Installation & maintenance
- Description
- Features
- Specifications
- Reviews
Description
Higher yields / Safe & Reliable / Smart / User-friendly
SUN 12/14/16K-SG, a hybrid inverter, is suitable for residential and light commercial use, maximizing the self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It is equipped with an RS485 / CAN port for battery communication.
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 290A.
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system.
- Support storing energy from diesel generators.
- 48V low voltage battery, safe and reliable
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuring the non-inverter type air conditioner works well.
Technical Specifications
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 220A | 250A | 290A |
| Max. Discharging Current (A) | 220A | 250A | 290A |
|
UPS Power (W)
|
12000 | 12000 | 12000 |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Yes | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 15600W | 18200W | 20800W |
|
Max. DC Input Voltage (V)
|
500 | ||
|
Start-up Voltage (V)
|
125 | ||
| MPPT Range (V) | 150~425V | ||
|
Rated DC Input Voltage (V)
|
370 | ||
| PV Input Current (A) | 26+26+26 | ||
| Max. PV ISC (A) | 44+44+44 | ||
| No. of MPPT Trackers | 3 | ||
| No. of Strings Per MPPT Tracker | 2 | ||
| AC Output Data | |||
| Rated AC Output Power (W) | 12000W | 14000W | 16000W |
| AC Output Rated Current (A) | 52.2 | 60.9 | 69.6 |
|
Max. Continuous AC Passthrough (A)
|
100 | ||
| Peak Power (off-grid) | 2 times of rated power, 5 S | ||
| Power Factor | 0.8 leading to 0.8 lagging. | ||
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) | ||
| Grid Type | Single Phase | ||
|
DC injection current (mA)
|
<0.5% 1n | ||
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | 99.90% |
| Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
VDE 0126-1-1, RD 1699, C10-11
|
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (℃) | -45~60℃, >45℃ Derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 48.5 |
| Size (mm) | 464W×798.4H×300D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
