Jinko Solar Tiger Neo 66HL4M-V 615 Watts Mono-Facial Module

(0)

184,500.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

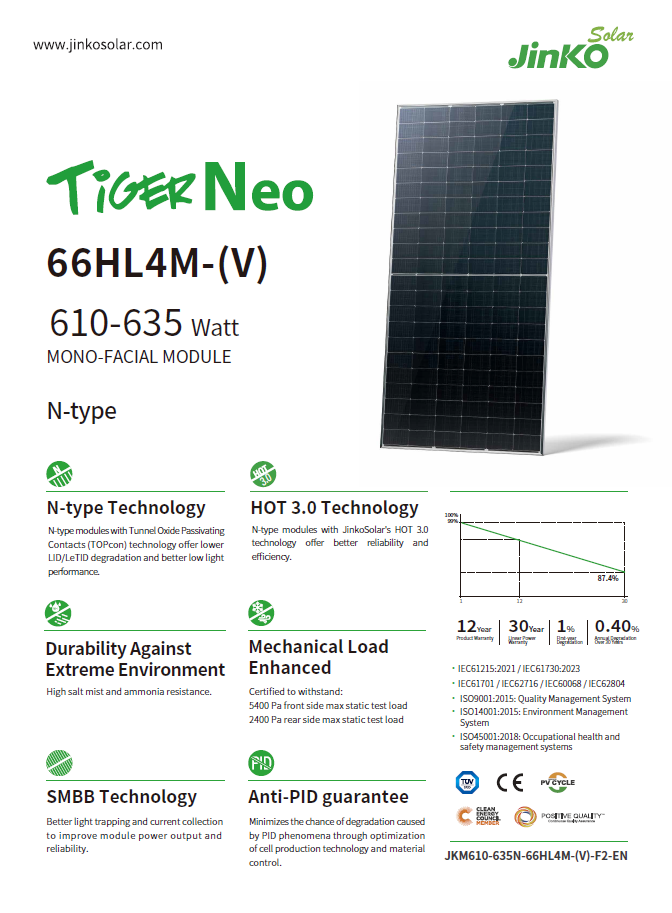

Key Features

  • N-type TechnologyN-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light
    performance.
  • HOT 3.0 TechnologyN-type modules with Jinko Solar’s HOT 3.0 technology offer better reliability and efficiency.
  • Durability Against Extreme EnvironmentHigh salt mist and ammonia resistance.
  • Mechanical Load EnhancedCertified to withstand:
    5400 Pa front side max static test load
    2400 Pa rear side max static test load.
  • SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability.
  • Anti-PID GuaranteeMinimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material
    control.

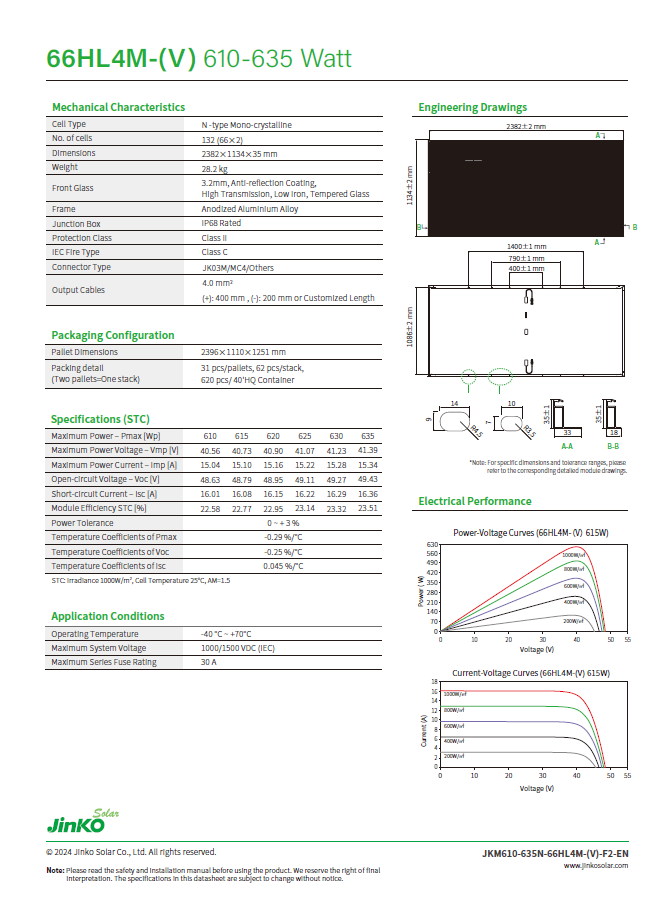

Specification | STC

  • Module Type: JKM615N-66HL4M-V
  • Maximum Power (Pmax): 615Wp
  • Maximum Power Voltage (Vmp): 40.73V
  • Maximum Power Current (Imp): 15.10A
  • Open-circuit Voltage (Voc): 48.79V
  • Short-circuit Current (Isc): 16.08A
  • Module Efficiency STC (%): 22.77%
  • Temperature Coefficients of Pmax: -0.29 %/°C
  • Temperature Coefficients of Voc: -0.25 %/°C
  • Temperature Coefficients of Isc: 0.045 %/°C
  • Power tolerance: 0~+3%
  • Operating Temperature: -40 °C ~ +70°C
  • Maximum System Voltage: 1000/1500 VDC (IEC)
  • Maximum Series Fuse Rating: 30 A

Mechanical Characteristics

  • Cell Type: N -type Mono-crystalline
  • No. of cells: 132 (66×2)
  • Dimensions: 2382×1134×35 mm
  • Weight: 28.2 kg
  • Front Glass: 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
  • Frame: Anodized Aluminum Alloy
  • Junction Box: IP68 Rated
  • Protection Class: Class II
  • IEC Fire Type: Class C
  • Connector Type: K03M/MC4/Others
  • Output Cables: 4.0 mm2 (+): 400 mm, (-): 200 mm or Customized Length

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.
