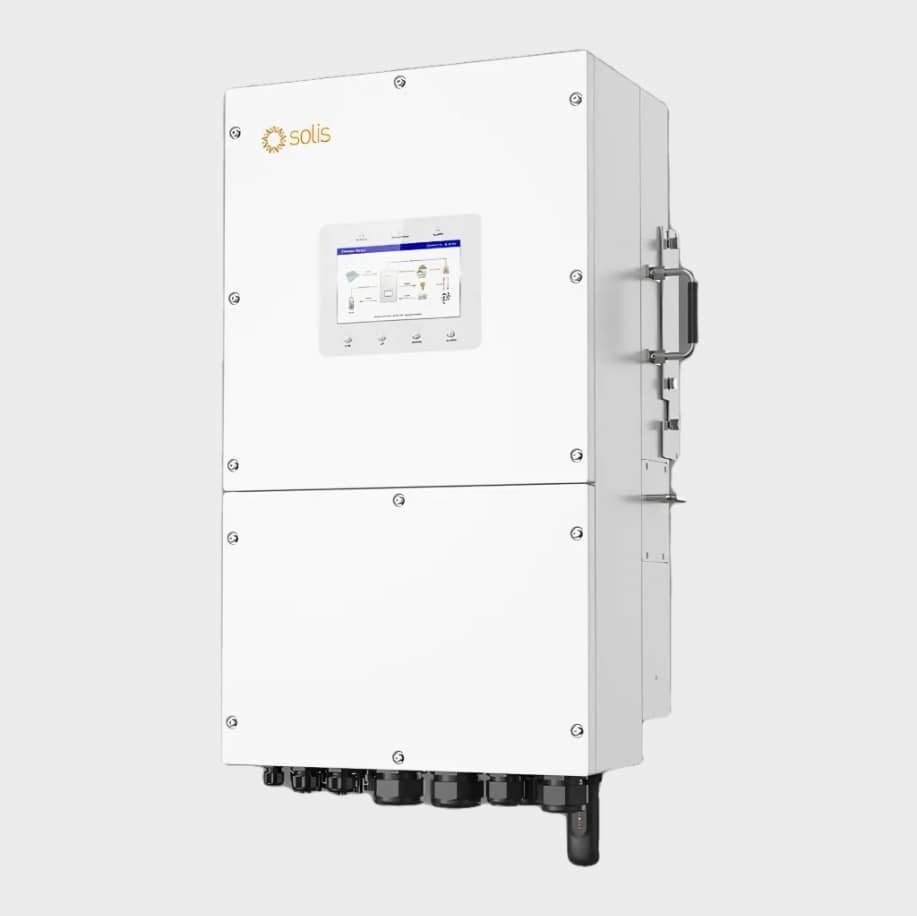

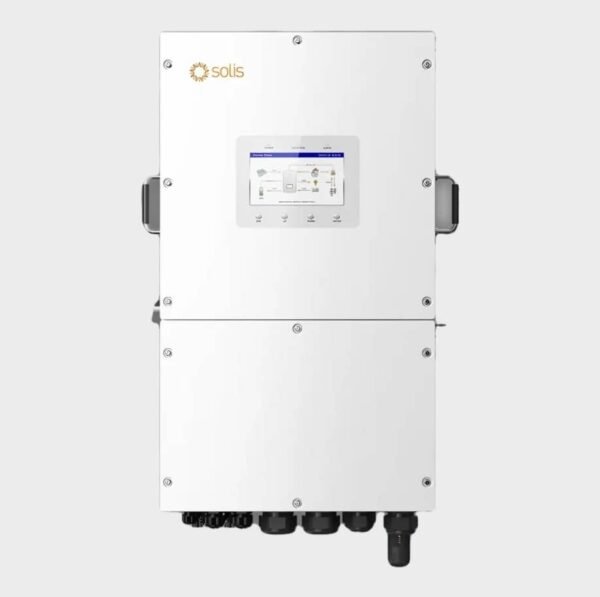

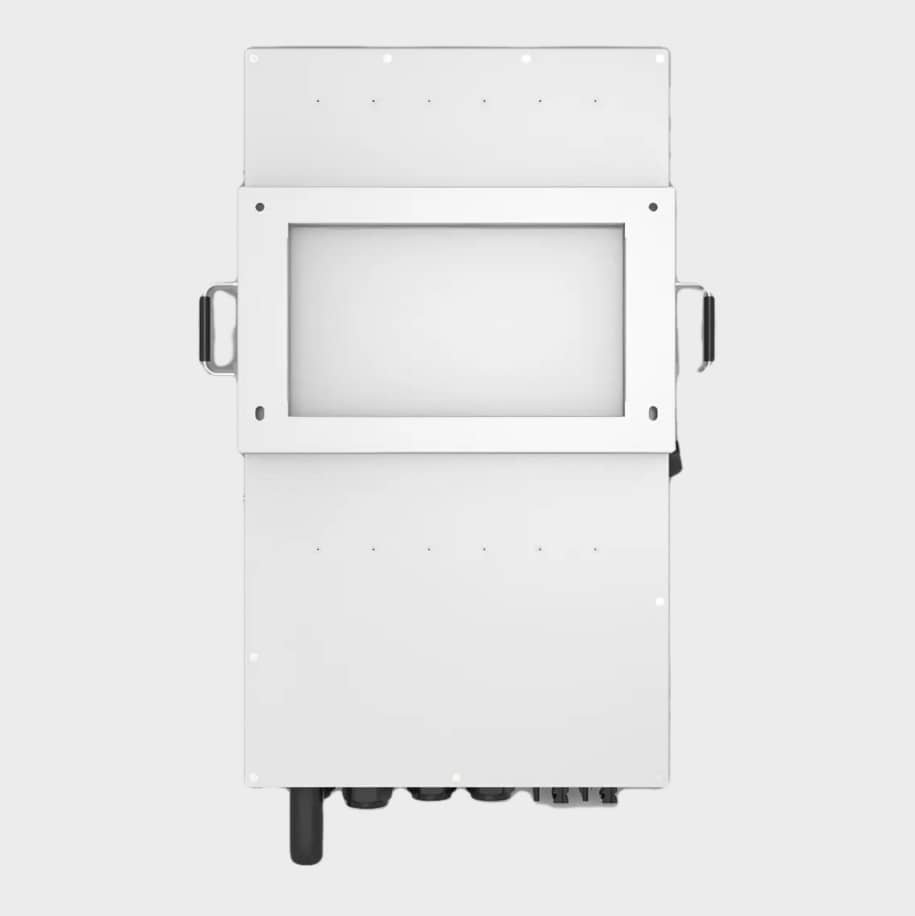

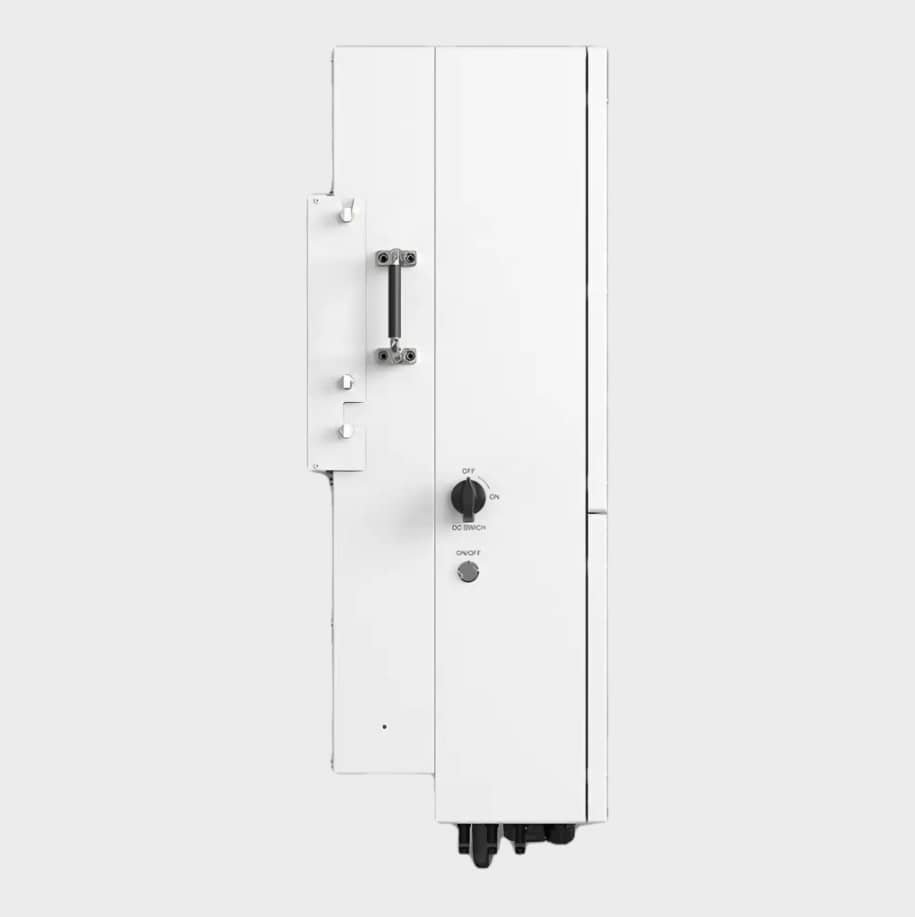

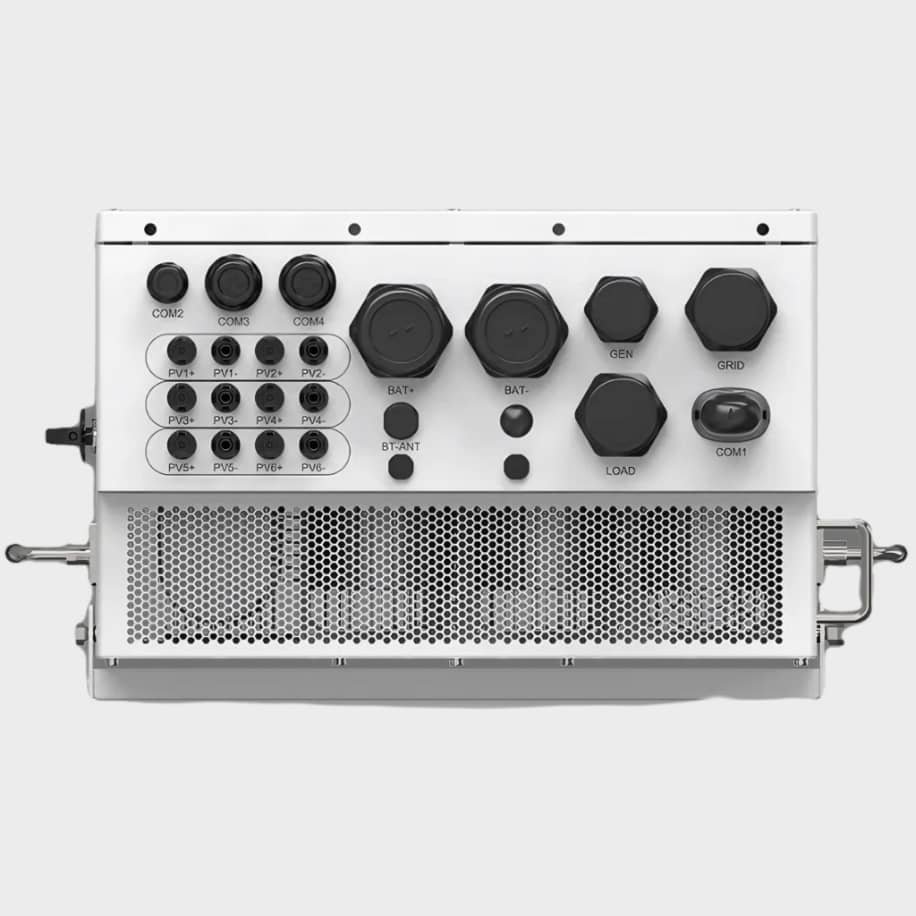

Solis S6-EH1P14K03-NV-YD-L Series 14 kW Hybrid Inverter

(0)

₦3,622,500.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

S6-EH1P14K03-NV-YD-L series energy storage inverter is suitable for large residential PV energy storage systems, supports up to 40A MPPT current input, suitable for 182mm/210mm solar panels, integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage systems.

Single Phase Low Voltage Energy Storage Inverter

Leading Features

  • 10 seconds of 200% overload capability
  • Multiple inverters can operate together to form a microgrid
  • Generator-compatible to extend backup duration during grid power outage
  • Supports dual backup ports for intelligent control of critical and non-critical loads
  • Automatic switchover time is <4ms, providing seamless transitions from grid to backup
  • Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
  • Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
  • The battery’s DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Solis S6-EH1P14K03-NV-YD-L Series 14 kW Hybrid Inverter”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
