DEYE BOS-G 5.12kWh 51.2V 100Ah HV LiFePO4 Battery
₦1,621,960.00
Key Features:
- High-quality LiFePO4 cell chemistry for enhanced safety and longevity
- Modular design with capacities ranging from 15.36 kWh to 61.44 kWh
- Flexible system voltage options from 153.6V to 614.4V
- Intelligent battery management system (BMS) for optimal performance and protection
- Compact and lightweight design for easy installation and maintenance
- 10-year warranty for peace of mind
Free Delivery
Nationwide shipping
Warranty
Manufacturer guarantee
Expert Support
Installation & maintenance
- Description
- Features
- Specifications
- Reviews
Description

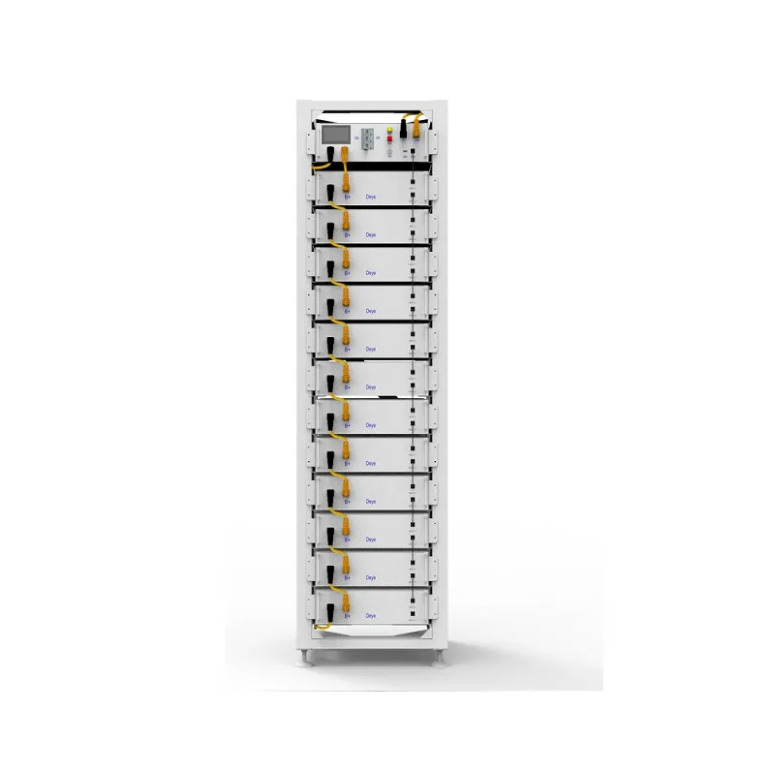

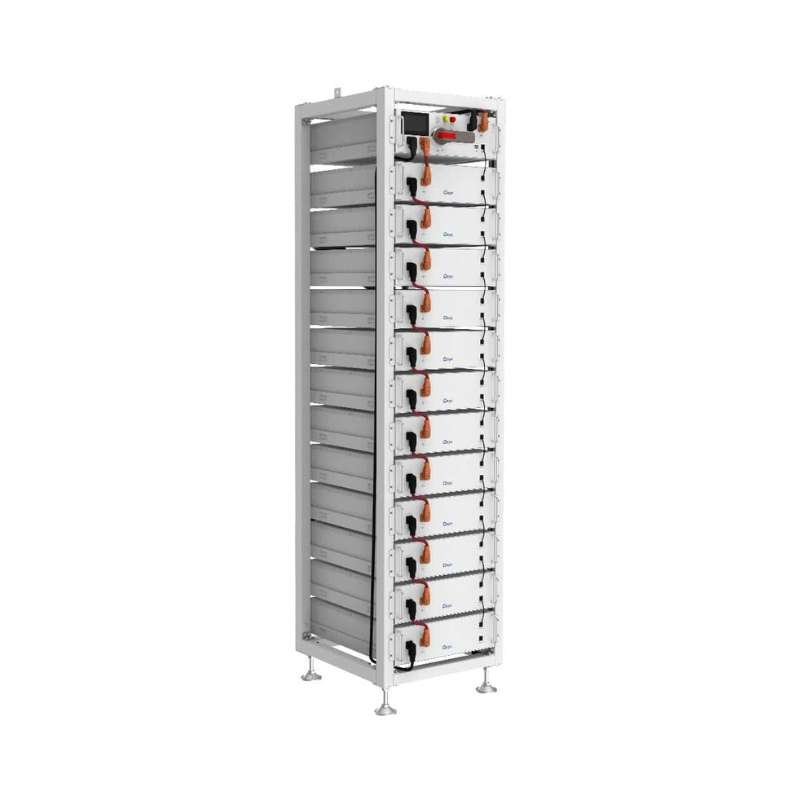

The Deye BOS-G series is a state-of-the-art LiFePO4 battery system designed to provide reliable, safe, and efficient energy storage for your home or business. With a wide range of configurations and capacities, the BOS-G series offers a versatile solution to meet your specific energy needs.
The BOS-G series utilizes advanced LiFePO4 cell technology, known for its superior thermal stability, high cycle life, and excellent safety profile. Each battery module has a nominal capacity of 100Ah and energy of 5.12 kWh, allowing you to scale your system to perfectly match your energy storage requirements.
With a recommended depth of discharge (DOD) of 90% and a cycle life of ≥6000 cycles at 25°C, the BOS-G series ensures maximum usable energy and long-term performance. The system also features a wide operating temperature range of -20°C to 55°C, making it suitable for various environments.
The BOS-G series comes equipped with a high-voltage box (HVB750V/100A) that enables seamless integration with your existing power system. The high-voltage box supports an operating voltage range of 120-750 Vdc and a maximum charge/discharge current of 125A, ensuring efficient power transfer and compatibility with a wide array of inverters and chargers.
Safety is a top priority with the BOS-G series. The system features multiple layers of protection, including over-voltage, under-voltage, over-current, short-circuit, and temperature monitoring. The IP20-rated enclosure provides protection against dust and debris, while the built-in status indicators keep you informed of the system’s operating status at all times.
Deye’s commitment to quality and customer satisfaction is evident in the 10-year warranty provided with the BOS-G series. With its robust design, advanced features, and exceptional performance, the Deye BOS-G LiFePO4 battery system is the ideal choice for those seeking a reliable and efficient energy storage solution.
Key Features
No features available for this product.
Technical Specifications
No specifications available for this product.
