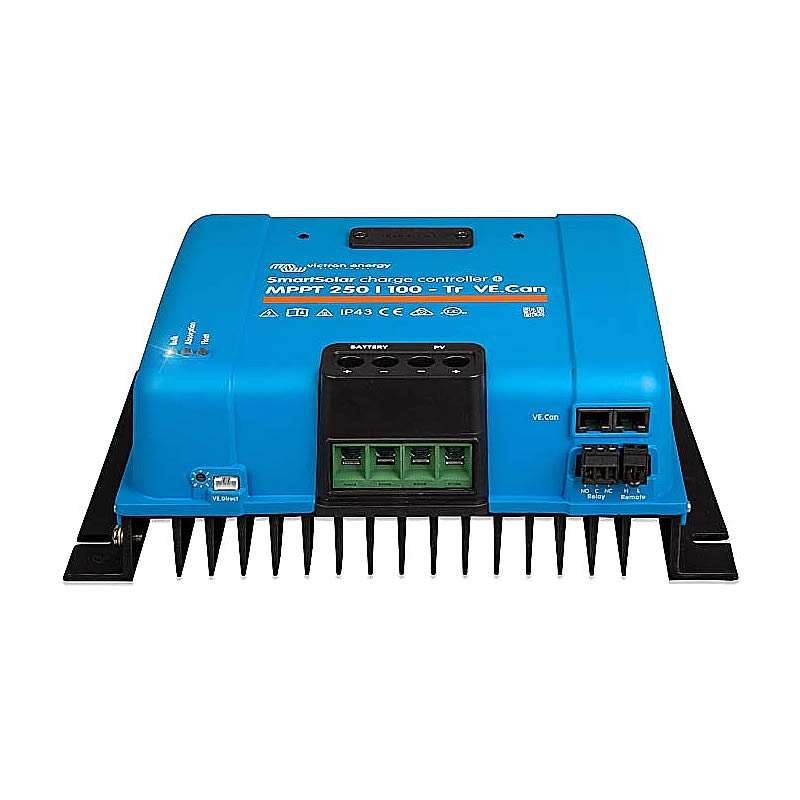

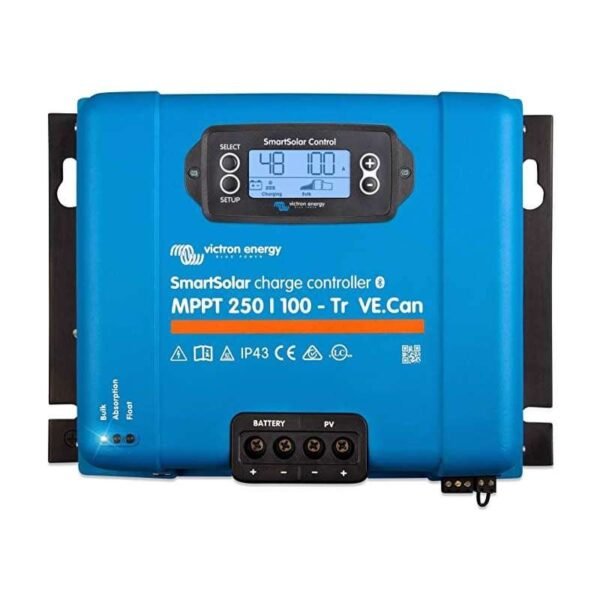

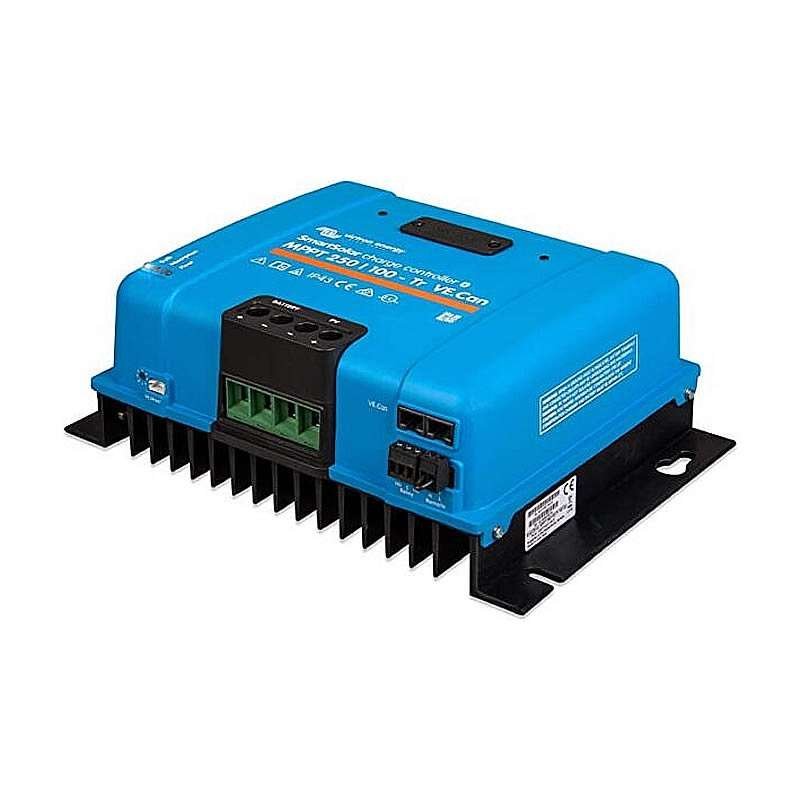

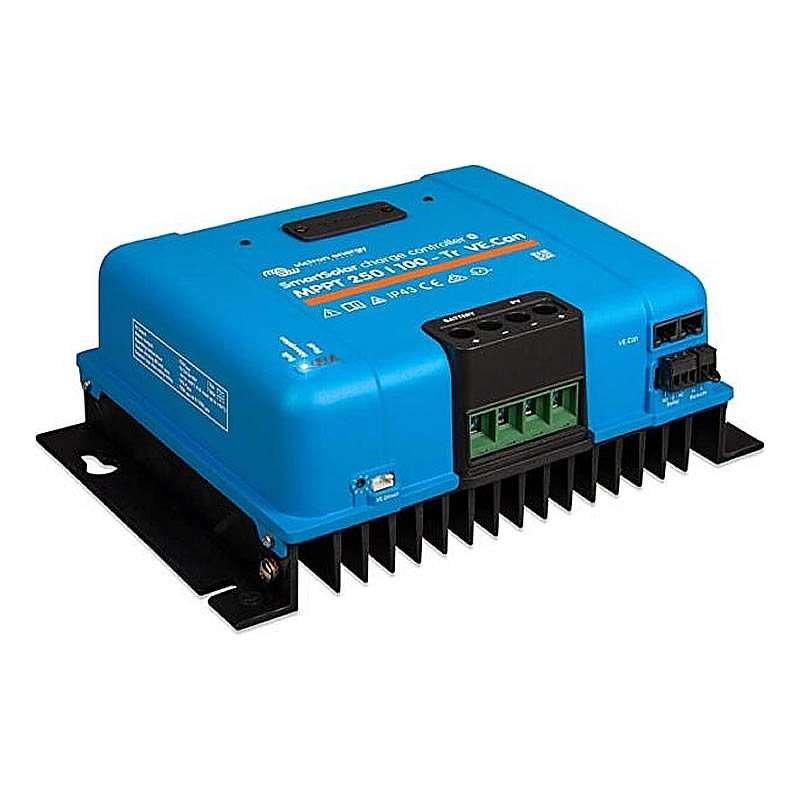

Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller
Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller  - Image 2
Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller  - Image 3
Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller  - Image 4

Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller

(0)

₦902,750.00

  • Solar charge controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery bank.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

  • Solar charge controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery bank.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

  • MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium and others.

  • Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

  • Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy-chained” to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

  • Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the  GlobalLink 520.

  • SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller ”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
