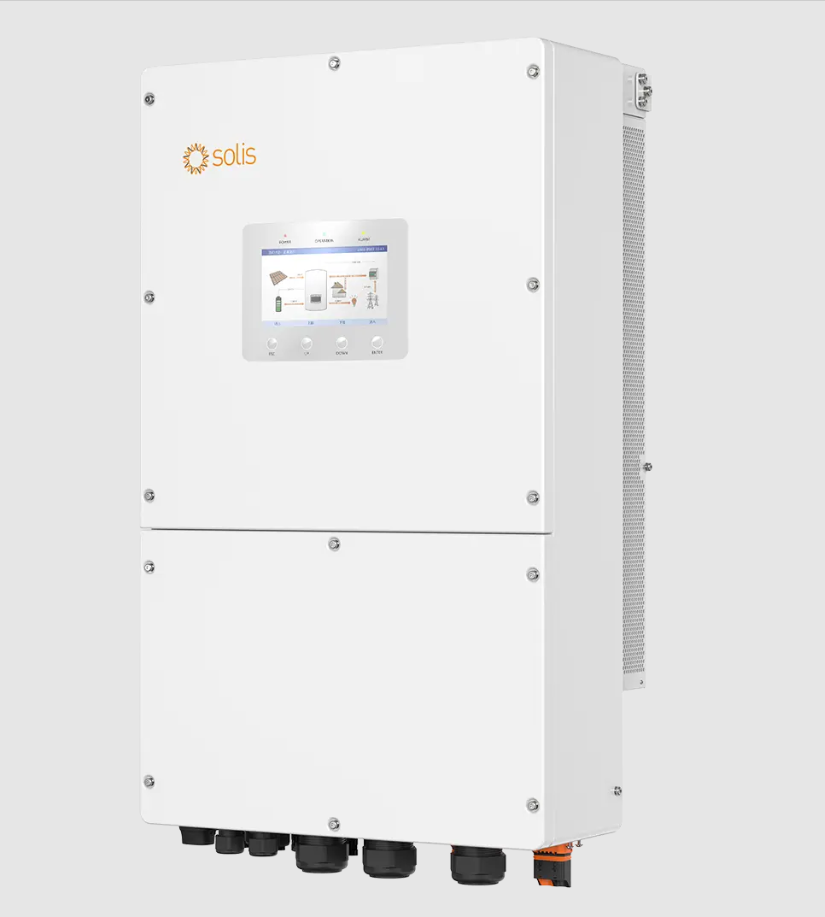

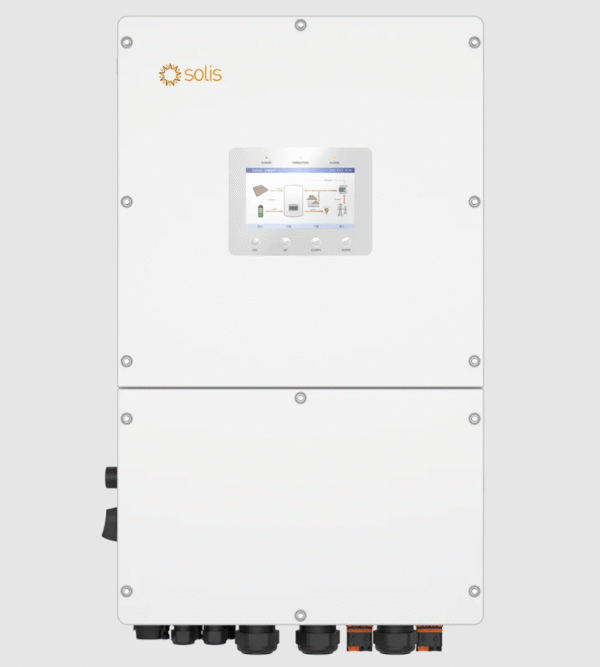

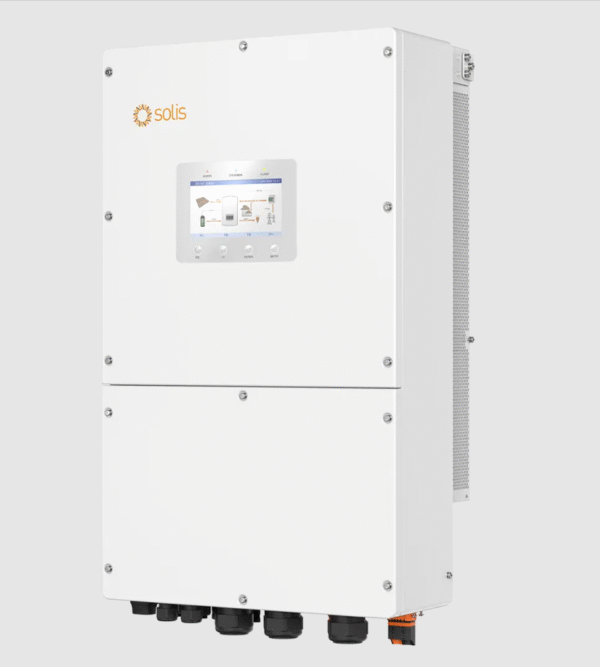

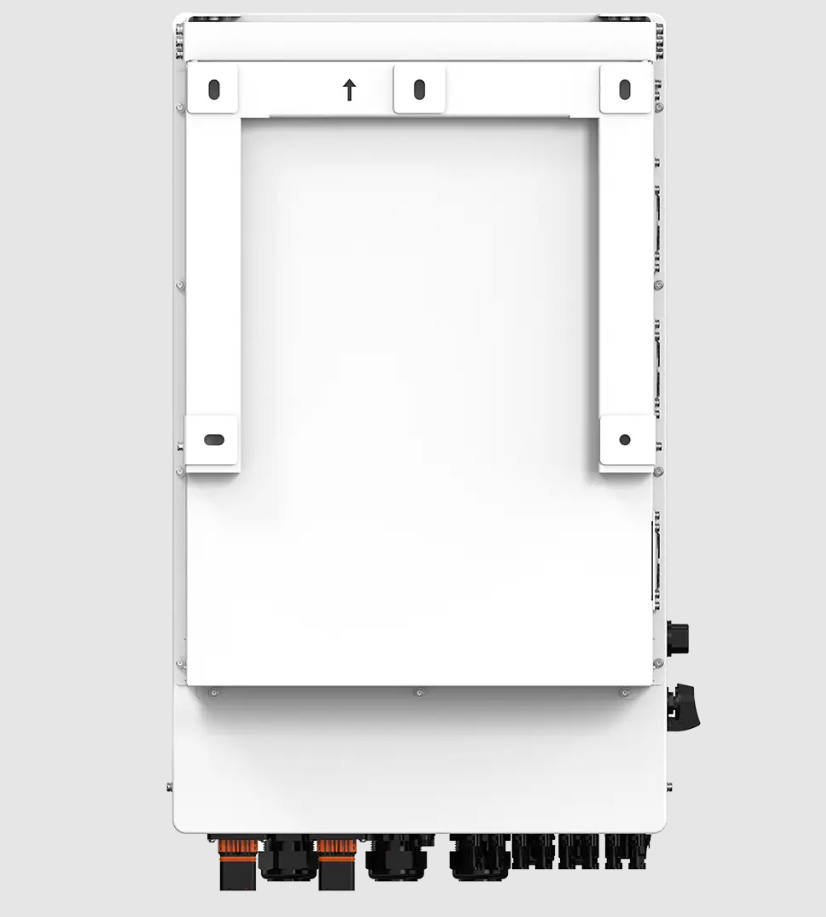

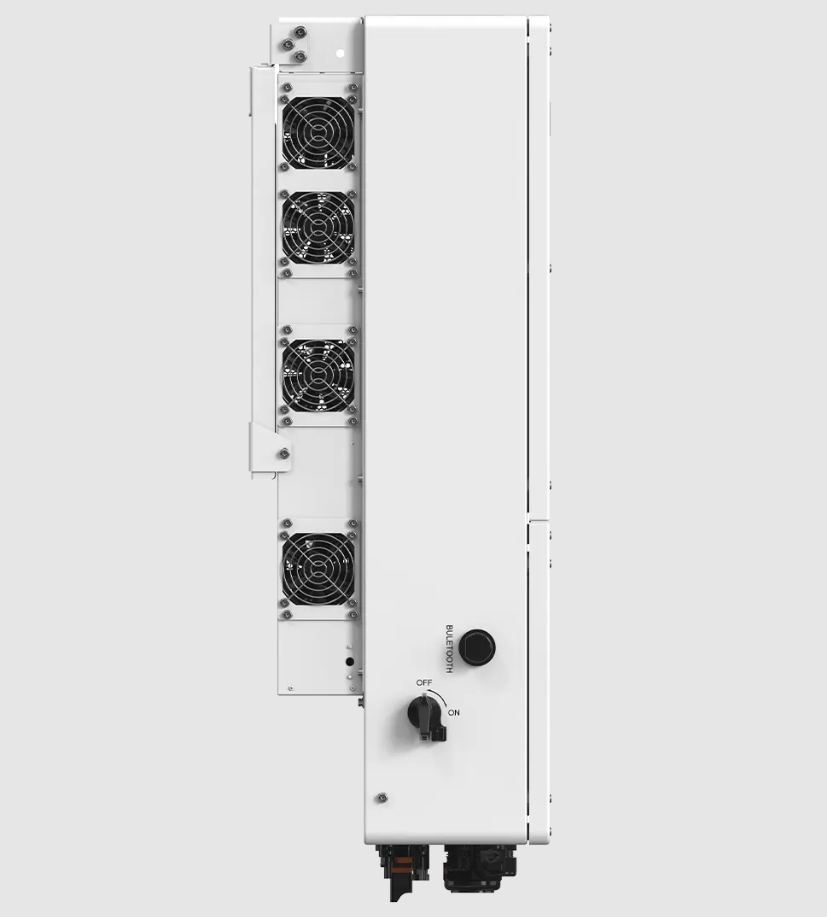

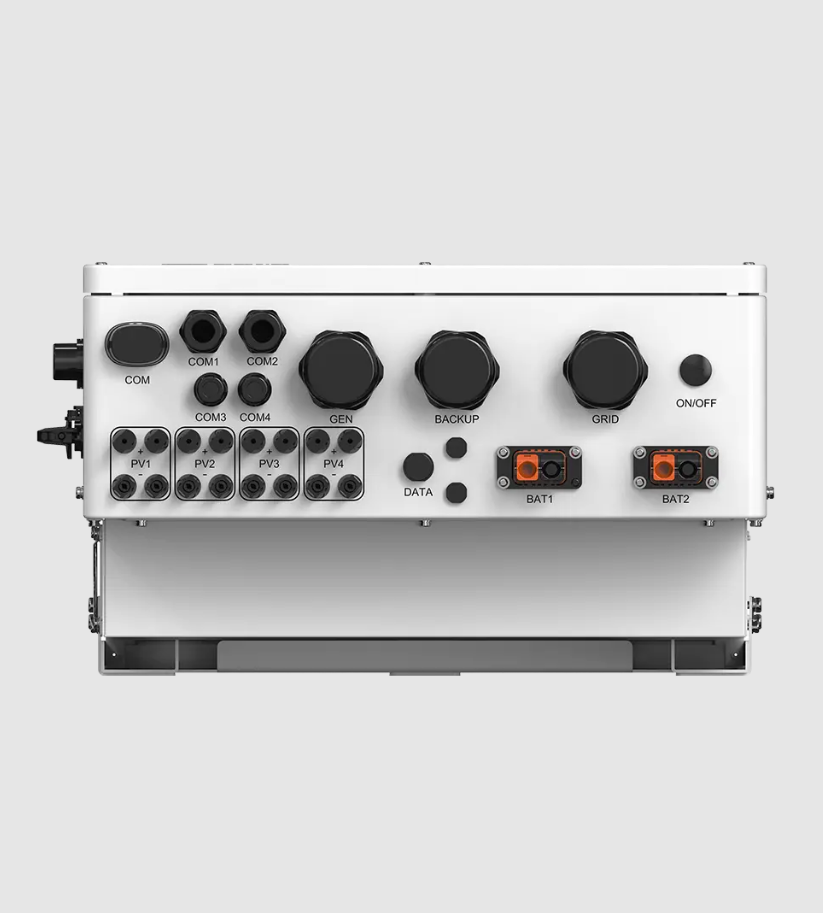

Solis S6-EH3P50K-H Series 50 kW Hybrid Inverter

(0)

₦8,590,500.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

Introducing the S6-EH3P50K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P50K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range is compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both “self-use” and “generator” modes.

Three-Phase High Voltage Energy Storage Inverter

Leading Features

  • 2 seconds of 160% overload capability
  • Supports peak shaving features in “self-use” and “generator” modes
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
  • Supports 200% DC/AC ratio and makes full use of PV charging, providing a long backup
  • Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
  • Real-time battery monitoring, remote upgrade, and battery healing function to prolong battery life
  • A wide battery voltage range accommodates the prevalent high-voltage lithium batteries found in the market
  • Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition
