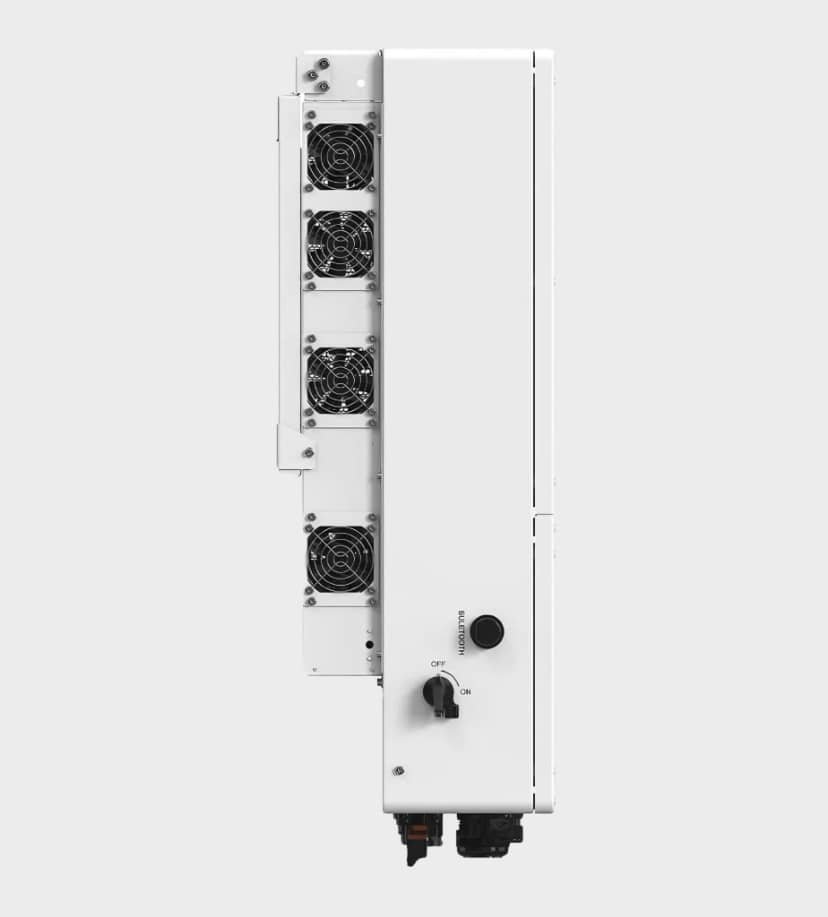

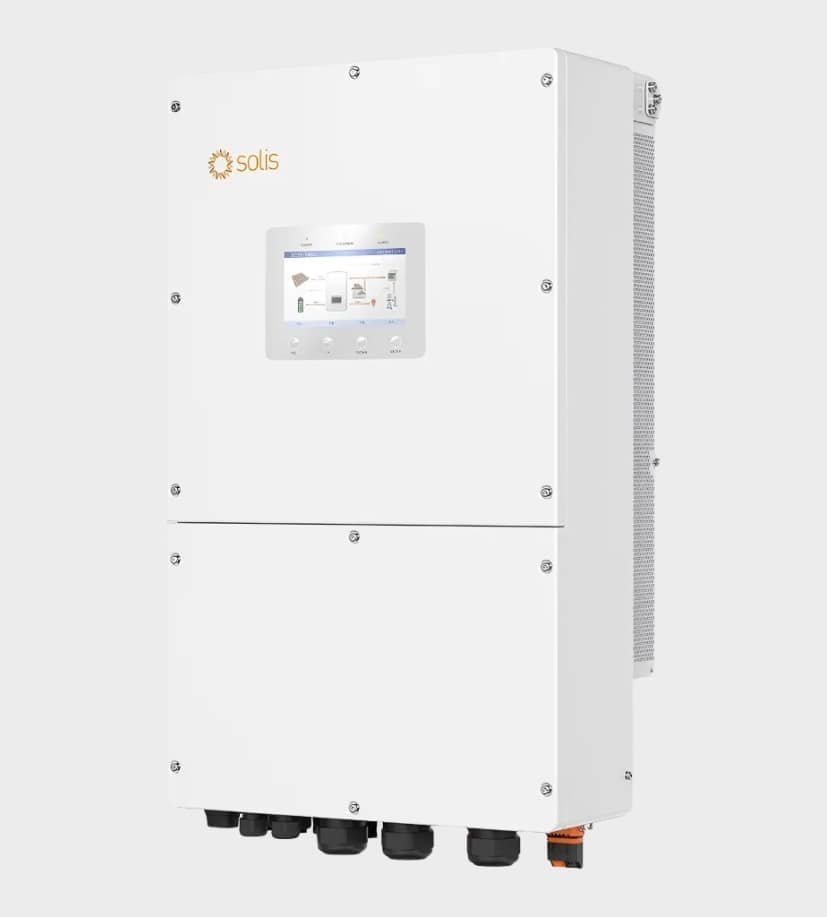

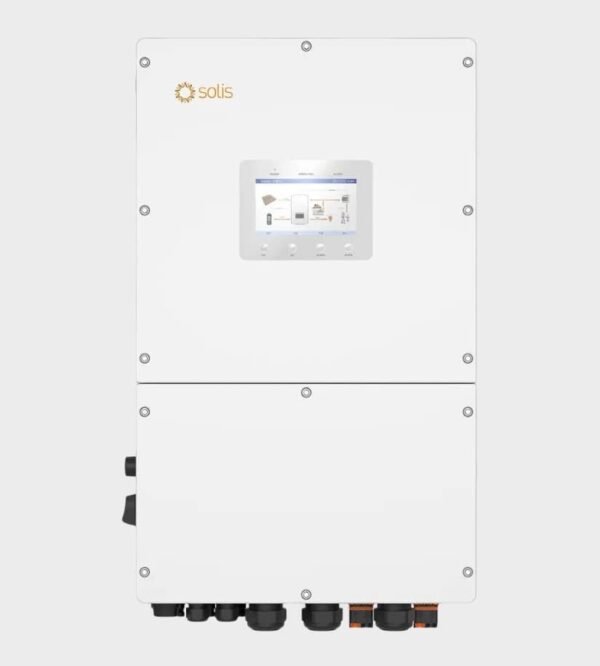

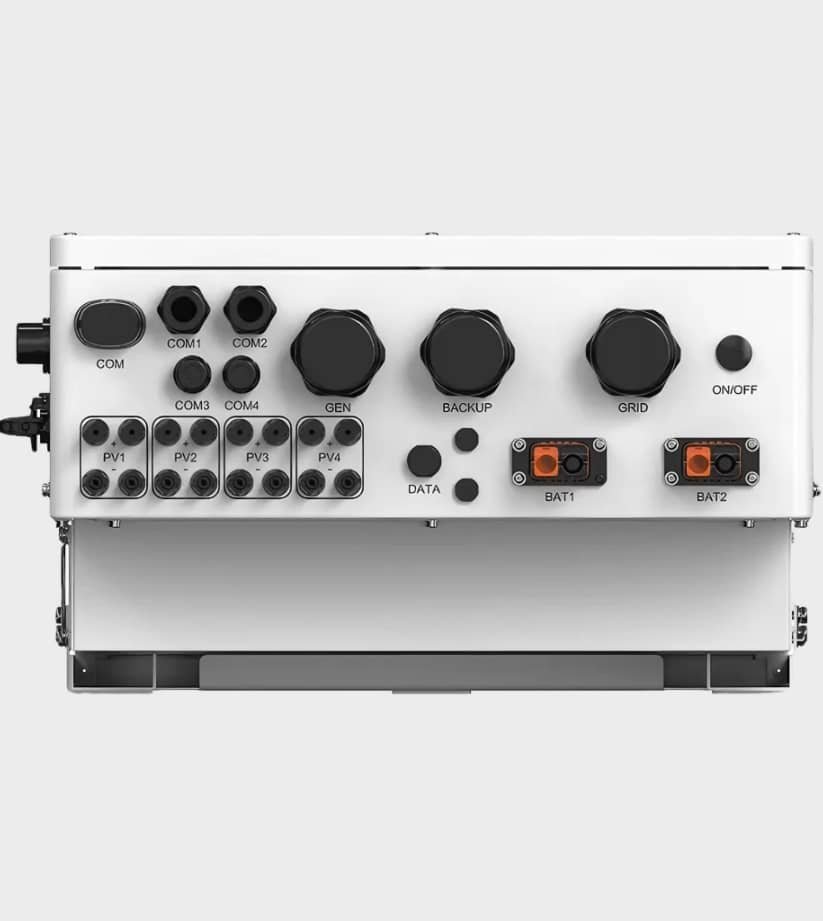

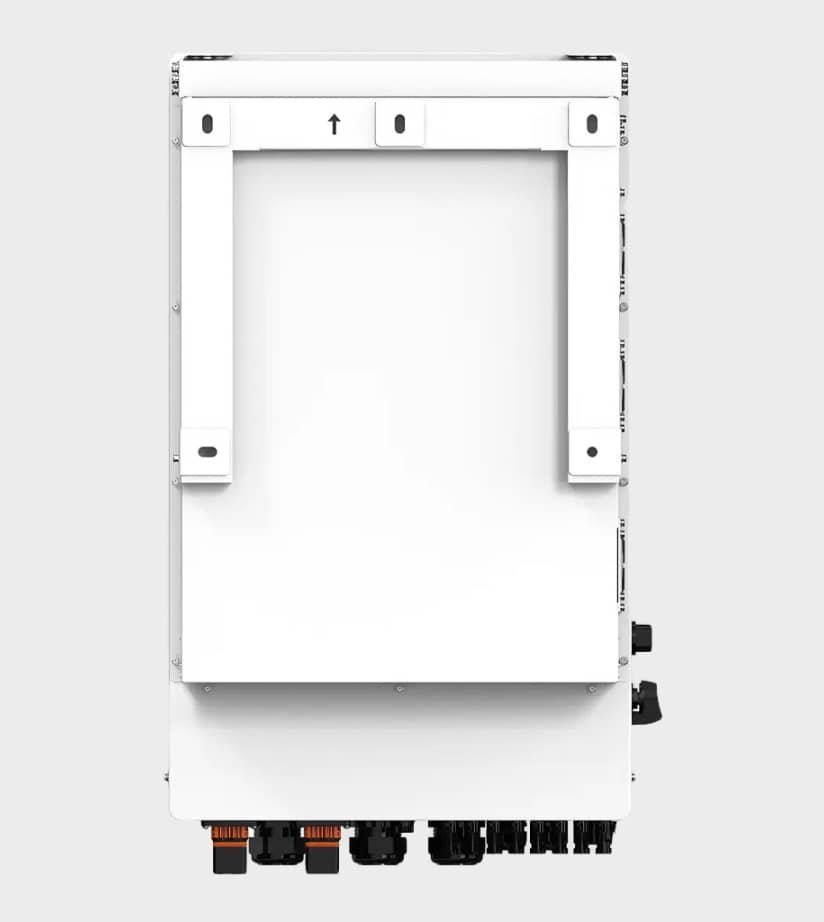

Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter
Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter - Image 2
Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter - Image 3
Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter - Image 4
Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter - Image 5

Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter

(0)

₦6,865,500.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

Introducing the S6-EH3P30K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P30K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range is compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both “self-use” and “generator” modes.

Three-Phase High Voltage Energy Storage Inverter

Leading Features

  • 2 seconds of 160% overload capability
  • Supports Peak shaving features in “self-use” and “generator” modes
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
  • Support 200% DC/AC ratio, make full use of PV charging, provide long backup hours
  • Battery real-time monitoring, remote upgrade, and battery healing function to prolong battery life
  • Supports a maximum input current of 20 A, making it ideal for all high-power PV modules from any brand
  • A wide battery voltage range accommodates the prevalent high-voltage lithium batteries found in the market
  • Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Solis S6-EH3P30K-H Series 30 kW Hybrid Inverter”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
