Schneider Electric Conext InsightHome and InsightFacility Edge Devices

(0)

₦930,765.00

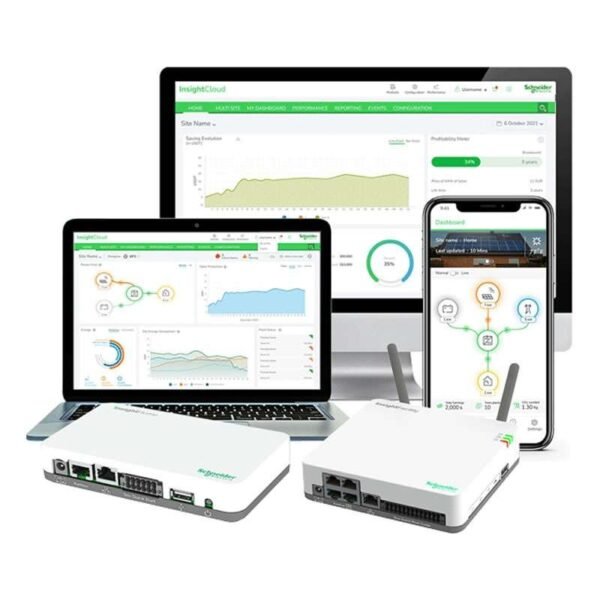

Meet the newest additions to the Insight Energy Management ecosystem. Powerful yet simple, Insight is Schneider Electric’s energy management ecosystem for solar & storage. It provides intuitive mobile and web-browser-based interfaces for homeowners and professionals alike. InsightHome and InsightFacility are smart edge devices that connect customers’ Schneider Electric solar and storage systems to the Insight app.

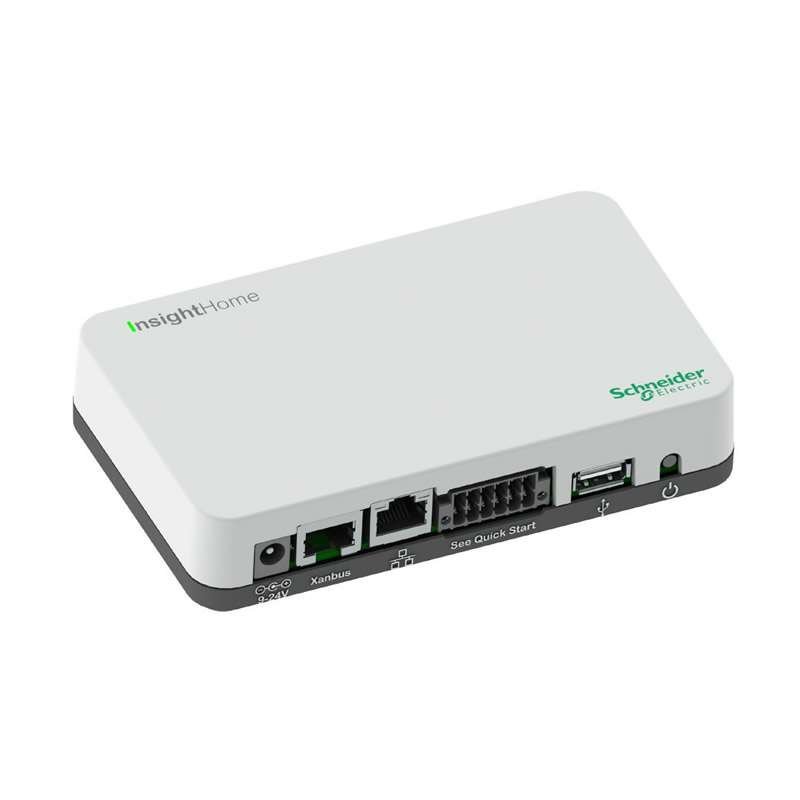

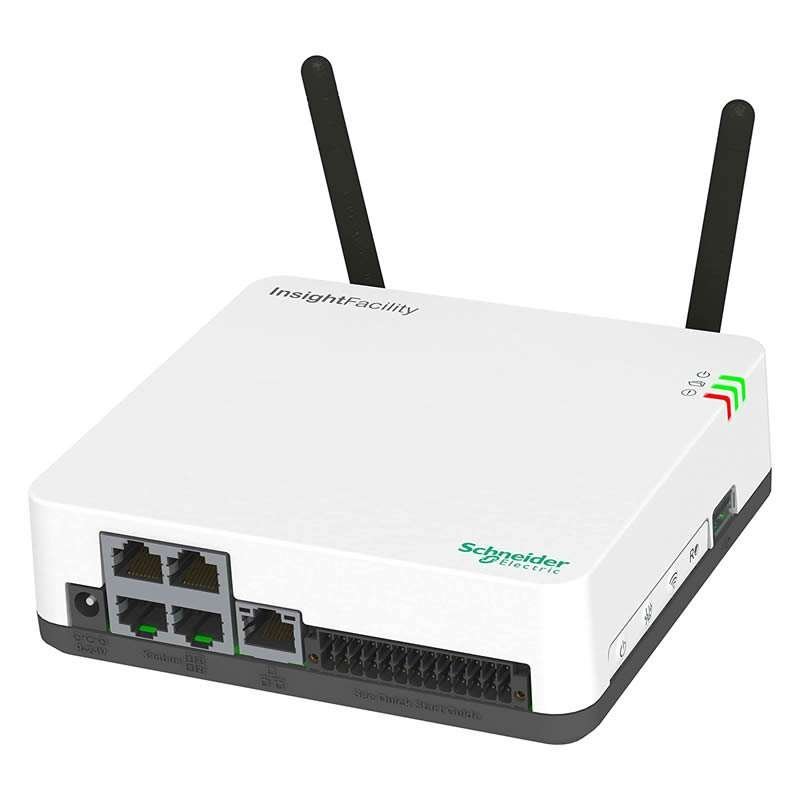

InsightHome is perfect for smaller residential systems. InsightFacility supports larger residential and small commercial applications. Both InsightHome and InsightFacility are compatible with Schneider Electric’s solar & storage offerings, including the XW and SW lines of storage inverters, the MPPT solar charge controllers, and the accessories.

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

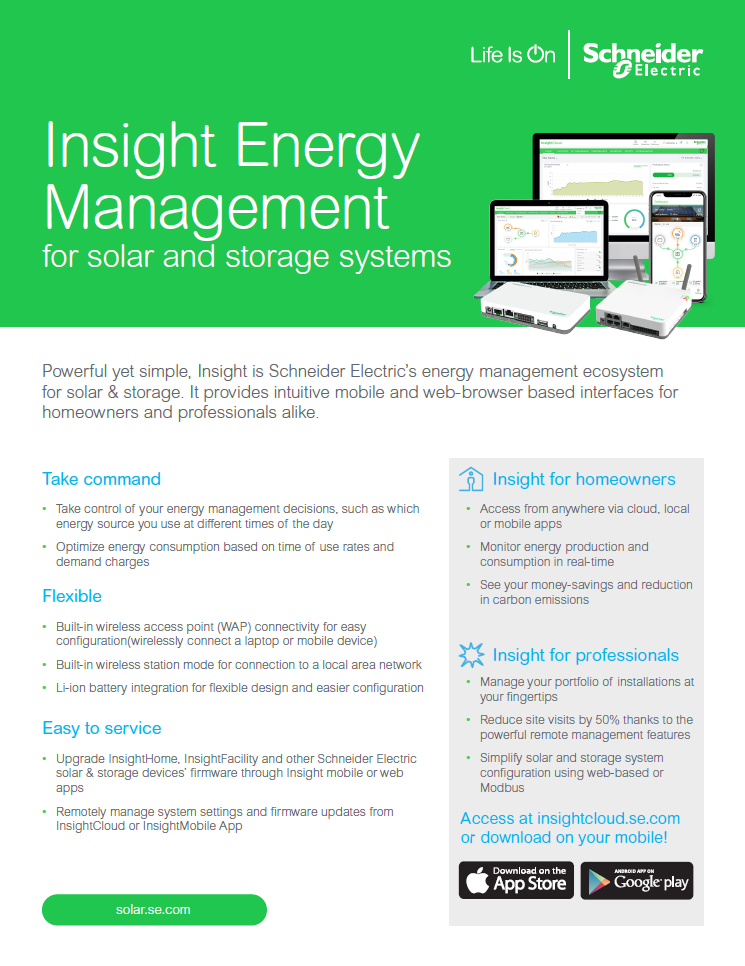

Meet the newest additions to the Insight Energy Management ecosystem. Powerful yet simple, Insight is Schneider Electric’s energy management ecosystem for solar & storage. It provides intuitive mobile and web-browser-based interfaces for homeowners and professionals alike. InsightHome and InsightFacility are smart edge devices that connect customers’ Schneider Electric solar and storage systems to the Insight app.

InsightHome is perfect for smaller residential systems. InsightFacility supports larger residential and small commercial applications. Both InsightHome and InsightFacility are compatible with Schneider Electric’s solar & storage offerings, including the XW and SW lines of storage inverters, the MPPT solar charge controllers, and the accessories.

Why Choose InsightHome and InsightFacility

Take command

  • Take control of your energy management decisions, such as which energy source you use at different times of the day

  • Optimize energy consumption based on time of use rates and demand charges

Flexible

  • Built-in wireless access point (WAP) connectivity for easy configuration(wirelessly connect a laptop or mobile device)

  • Built-in wireless station mode for connection to a local area network

  • Li-ion battery integration for flexible design and easier configuration

Easy to service

  • Upgrade InsightHome, InsightFacility, and other Schneider Electric solar & storage devices’ firmware through Insight mobile or web apps

  • Remotely manage system settings and firmware updates from InsightCloud or InsightMobile App

Insight for homeowners

  • Access from anywhere via cloud, local or mobile apps

  • Monitor energy production and consumption in real-time

  • See your money-savings and reduction in carbon emissions

Insight for professionals

  • Manage your portfolio of installations at your fingertips

  • Reduce site visits by 50% thanks to the powerful remote management features

  • Simplify solar and storage system configuration using web-based or Modbus



Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.
