MidNite DC Solar Breaker Box w/ 250A Breaker
MidNite DC Solar Breaker Box w/ 250A Breaker - Image 2
MidNite DC Solar Breaker Box w/ 250A Breaker - Image 3
MidNite DC Solar Breaker Box w/ 250A Breaker - Image 4
MidNite DC Solar Breaker Box w/ 250A Breaker - Image 5

MidNite DC Solar Breaker Box w/ 250A Breaker

(0)

₦545,000.00

MNDC 250-Plus
This version adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the .75″ 125VDC breakers that range from 60 amps to 100 amps. You can also fit the MNDC-GFP80 plus for more panel mount breakers in the enclosure.

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

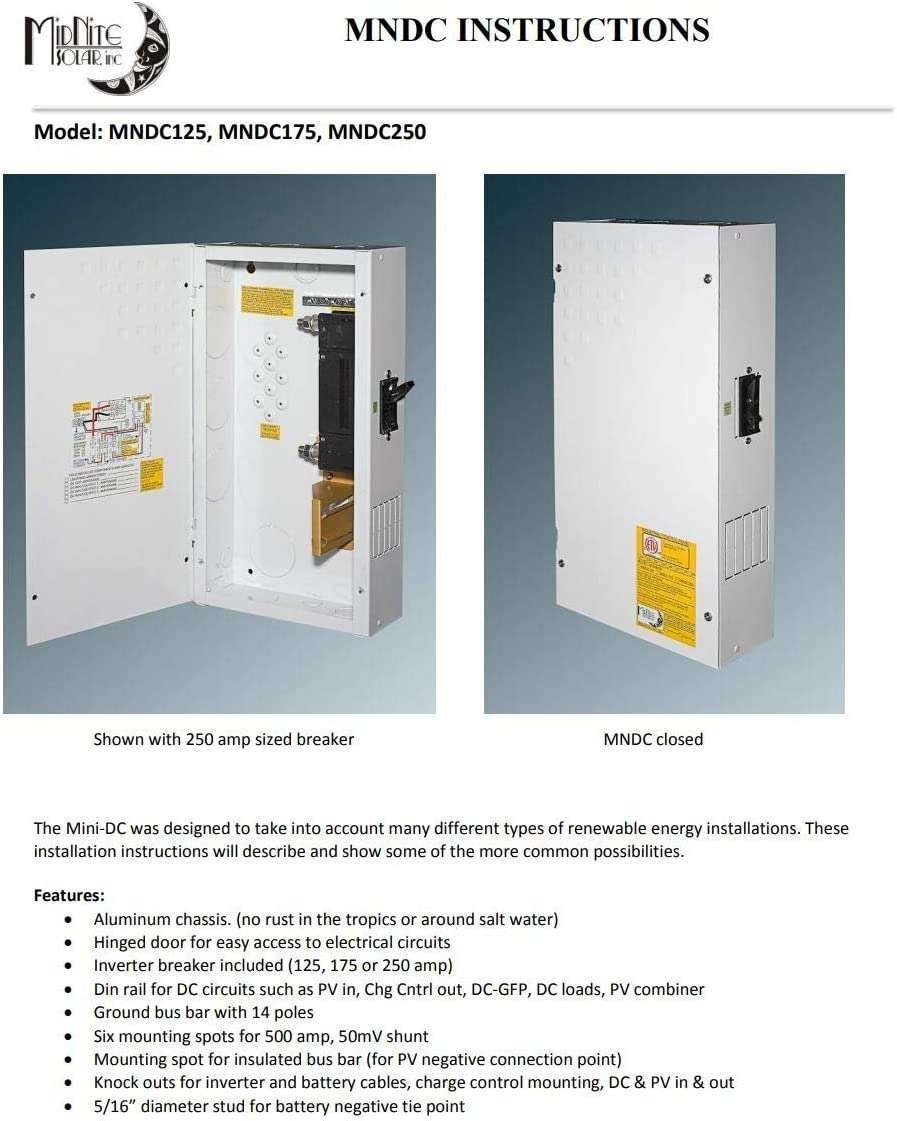

MidNite Solar proudly introduces their latest offering, the MidNite Solar “Mini-DC”. Furthering our goal to provide space saving, economical, yet feature-packed solutions to the needs of the industry, we bring to the table this new DC Breaker Box.

MNDC 250-Plus
This version adds another din rail allowing up to ten din rail mount breakers. Two din rail cover plates and two panel mount plates are included. The panel mount plates allow for mounting the .75″ 125VDC breakers that range from 60 amps to 100 amps. You can also fit the MNDC-GFP80 plus for more panel mount breakers in the enclosure.

Features & Attributes:

  • Dimensions (LxWxH): 17 × 9 × 4 inches
  • Weight: 3.18 kg
  • Small size compared to existing disconnect and over current solution
  • Pre-wired to save time, money and complexity.
  • MPN: MNDC250

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “MidNite DC Solar Breaker Box w/ 250A Breaker”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
