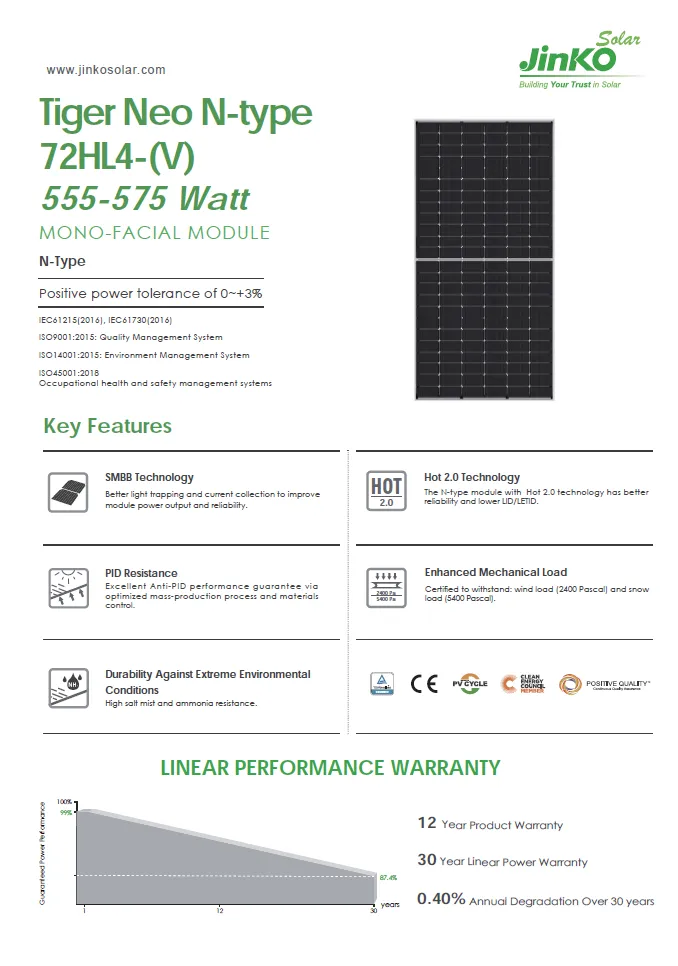

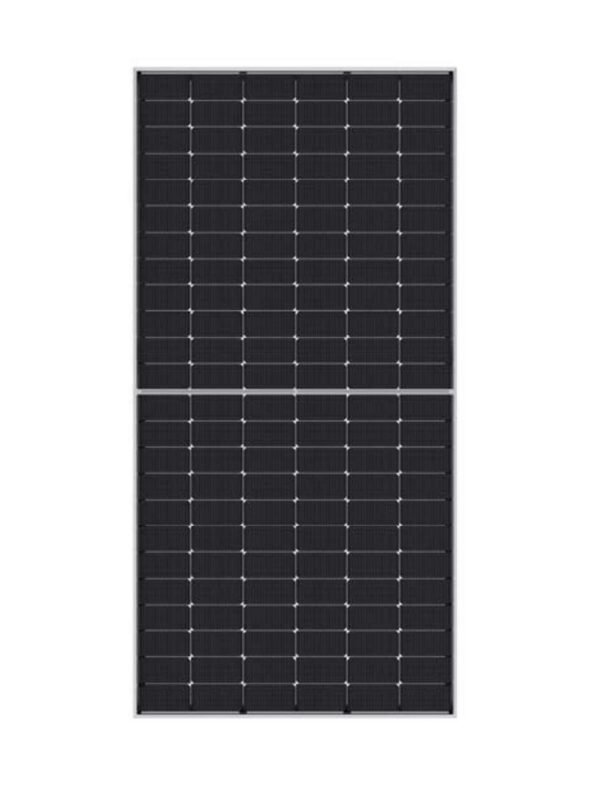

Jinko Solar Tiger Neo N-type 72HL4-(V) 580 Watts Mono-Facial Module

(0)

₦159,500.00

Key Features

  • SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
  • PID Resistance: Excellent Anti-PID performance guarantee via optimized mass-production process and materials
    control.
  • Hot 2.0 Technology: The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
  • Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance.
  • Enhanced Mechanical Load: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

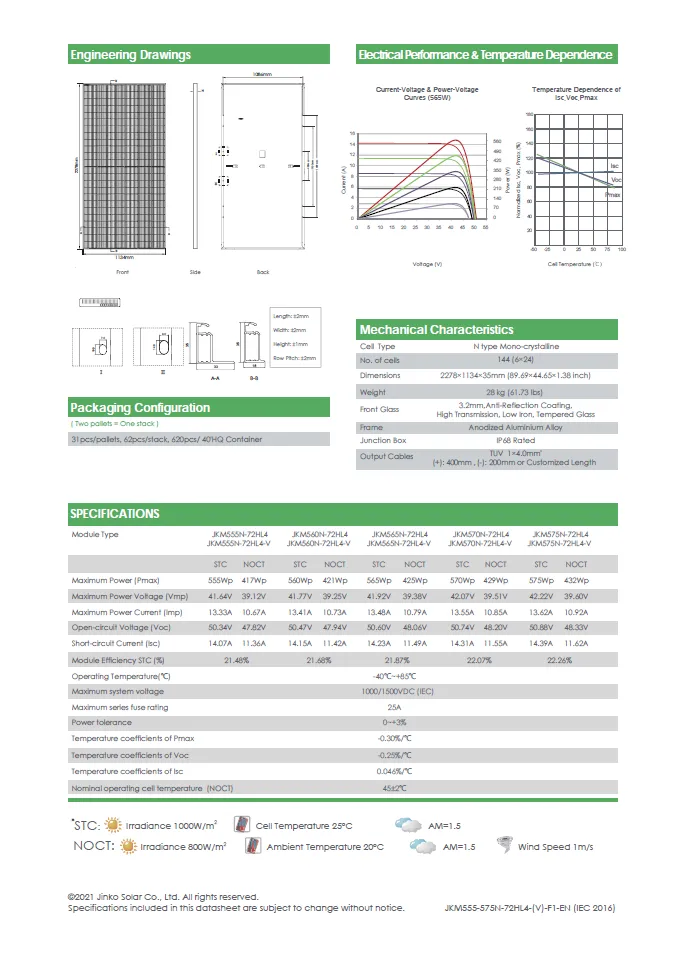

Specification | STC

  • Module Type: JKM575N-72HL4-V
  • Maximum Power (Pmax): 575Wp
  • Maximum Power Voltage (Vmp): 42.22V
  • Maximum Power Current (Imp): 13.62A
  • Open-circuit Voltage (Voc): 50.88V
  • Short-circuit Current (Isc): 14.39A
  • Module Efficiency STC (%): 22.26%
  • Operating Temperature (℃): -40℃~+85℃
  • Maximum system voltage: 1000/1500VDC (IEC)
  • Maximum series fuse rating: 25A
  • Power tolerance: 0~+3%
  • Temperature coefficients of Pmax: -0.35%/℃
  • Temperature coefficients of Voc: -0.28%/℃
  • Temperature coefficients of Isc: 0.048%/℃
  • Nominal operating cell temperature (NOCT): 45±2℃

Mechanical Characteristics

  • Cell Type: N type Mono-crystalline
  • No. of cells: 144 (6×24)
  • Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inch)
  • Weight: 28.9 kg (61.73 lbs)
  • Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
  • Frame: Anodized Aluminium Alloy
  • Junction Box: IP68 Rated
  • Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “Jinko Solar Tiger Neo N-type 72HL4-(V) 580 Watts Mono-Facial Module”

Your email address will not be published. Required fields are marked *

Please log in to write a review. You must purchase this product to leave a review.
