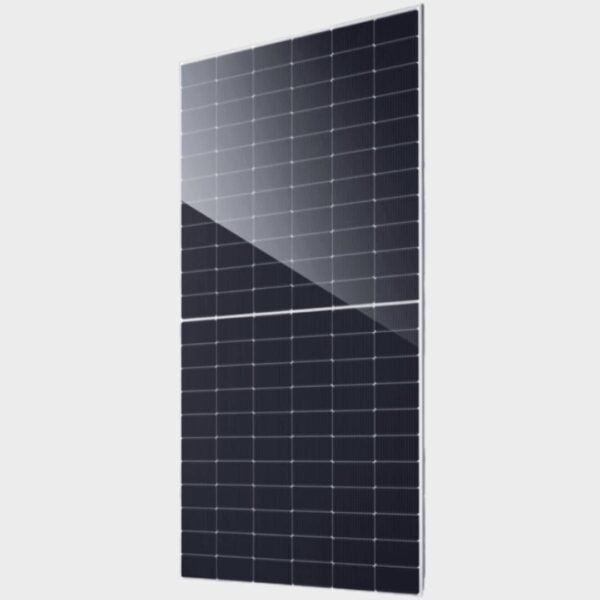

MORE POWER

• Module efficiency up to 21.4 %
• Up to 3.5 % lower LCOE
• Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Compatible with mainstream trackers, cost-effective product for utility power plant
• Better shading tolerance

MORE RELIABLE

• Minimizes micro-crack impacts
• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Heavy snow loads up to 5400 Pa, enhanced wind loads up to 2400 Pa
• 12 years Enhanced Product Warranty on Materials and Workmanship
• 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 600 W
• Opt. Operating Voltage (Vmp): 34.9 V
• Opt. Operating Current (Imp): 17.20 A
• Open Circuit Voltage (Voc): 41.3 V
• Short Circuit Current (Isc): 18.47 A
• Module Efficiency: 21.2%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 30 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 5 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 120 [2 x (10 x 6)]
• Dimensions: 2172 ˣ 1303 ˣ 35 mm (85.5 ˣ 51.3 ˣ 1.38 in)
• Weight: 31.4 kg (69.2 lbs.)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminum alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length
• Connector: T4 series or H4 UTX or MC4-EVO2

Unmatched Energy Capacity for Industrial Applications

Power your operations with the WECO 16K0 HV Industrial High Voltage Rack Module battery, engineered to meet the demands of modern industrial setups. With an impressive capacity of 16.0 kWh (314VAh), this robust energy solution guarantees reliable performance and extended uptime for your high-energy systems. Its nominal voltage of 51.2Vdc ensures seamless integration into high-voltage applications, delivering efficiency without compromising safety or durability.

Durable and Versatile Design

Crafted for longevity and adaptability, the WECO 16K0 HV battery rack module is built to handle the toughest environments. Whether you’re scaling energy storage for manufacturing plants, renewable energy systems, or high-performance machinery, this module delivers unwavering support. Its modular rack design simplifies installation, maintenance, and scalability, ensuring your workflow remains uninterrupted. The high-quality components provide enhanced reliability, contributing to reduced operational downtime and consistent power supply.

Why Choose the WECO 16K0 HV Battery?

This advanced battery module isn’t just about energy storage—it’s about optimizing your industrial efficiency. The high voltage capability allows for efficient energy transfer and integration with modern equipment, giving you more power per cycle. Its cutting-edge engineering also focuses on sustainability, reducing energy waste and minimizing environmental impact. The WECO 16K0 HV battery is ideal for industries and systems that demand peak performance, scalability, and reliability.

FEATURES

• High Voltage
• Cabinet Paralleling Via EMS
• Up To 20 Years Operations
• Remote Monitoring
• App & Web Portal Assistance

Advanced Energy Storage Solution for Diverse Applications

Discover the WECO 1M2 1.2 MWh/500 kW Energy Storage All-in-One Container—a cutting-edge solution designed to address the growing demand for efficient and robust energy storage. This all-in-one system combines high performance and reliability, making it ideal for a wide range of applications including commercial, industrial, and renewable energy projects. Engineered with precision and innovation, the WECO 1M2 enables seamless integration, ensuring optimized energy consumption and enhanced sustainability.

Superior Features for Exceptional Performance

Equipped with a 1.2 MWh capacity and 500 kW output, the WECO 1M2 sets a new standard in energy storage technology. The modular containerized design offers straightforward installation and scalability, allowing you to adapt to your energy needs effortlessly. Its advanced battery management system ensures real-time monitoring, protecting the unit against potential disruptions while maximizing efficiency. With a robust and durable construction, the container is designed to withstand harsh environments, making it a reliable choice for both indoor and outdoor setups.

Streamlined System, Ready for Immediate Deployment

The WECO 1M2 is meticulously crafted to provide an all-in-one solution. This complete container system includes pre-installed batteries, an inverter, and auxiliary systems, eliminating the complexity of separate component integration. Whether you’re powering remote facilities or managing peak electricity loads, this plug-and-play container simplifies energy storage deployment while reducing operational costs. Experience the convenience of a fully assembled, tested solution that gets your energy goals up and running in no time.

Upgrade your energy management capabilities with the WECO 1M2 1.2 MWh/500 kW ESS All-in-One Container. Offering unparalleled performance and ease of use, this comprehensive energy storage system is an investment in sustainability and energy independence. Explore how this innovative container can revolutionize your energy storage solutions today.

BOS-A is a high-performance embedded LiFePO4 battery module that offers quick installation and maintenance. With advanced safety features, intelligent BMS and eco-friendly design, it is an ideal choice for power backup and renewable energy storage. BOS-A is the ultimate solution for small-scale commercial and industrial energy storage systems (ESS). Designed for efficiency and reliability, this advanced battery system caters to a variety of power management needs while providing a sustainable energy solution.

Key Features:

• High Performance: With a capacity of 7.68 kWh and the potential for >6000 cycles, the BOS-A guarantees long-lasting energy support, ensuring that your operations run smoothly without interruptions.
• Intelligent Management: Equipped with smart cloud-based monitoring, the BOS-A enables real-time tracking of your energy consumption and battery status, optimizing performance and lowering electricity bills.
• Flexible Configuration: Capable of supporting multiple racks with up to 13 battery modules in series, this system provides adaptability to meet your growing energy demands.
• Effortless Installation: The lightweight design, at just 70 kg per module, paired with a detailed user manual, ensures a straightforward installation process.
• Safety First: Featuring an intelligent battery management system (BMS) and comprehensive safety protocols to prevent over-discharge, over-charge, and short circuits, the BOS-A prioritizes the longevity and safety of your power system.
• Robust Design: Built to withstand various environmental conditions, the BOS-A has a high IP rating and can function effectively in a range of temperatures, ensuring durability in any setting.
• Warranty Assurance: Enjoy peace of mind with a 10-year warranty, providing you with a full replacement guarantee for up to 6000 cycles of use.

Technical Specifications:

• Cell Chemistry: LiFePO₄
• Battery Dimensions: 601.5 mm x 520 mm x 135 mm
• Weight: Approx. 70 kg per rack
• Energy Efficiency: Over 90% at standard operational conditions
• Communication Port: CAN2.0, offering seamless integration with other Deye devices for a comprehensive energy management system.

Installation and Support:

The BOS-A is best suited for rack-mounted environments, with installation options available in various settings, including commercial buildings and industrial facilities. Comprehensive support is available through the Deye Cloud platform, allowing users to connect, monitor, and control their energy systems conveniently from any device.

Choose the Deye BOS-A for a smart, efficient, and reliable energy storage solution that adapts to your needs while enhancing your energy management capabilities.
