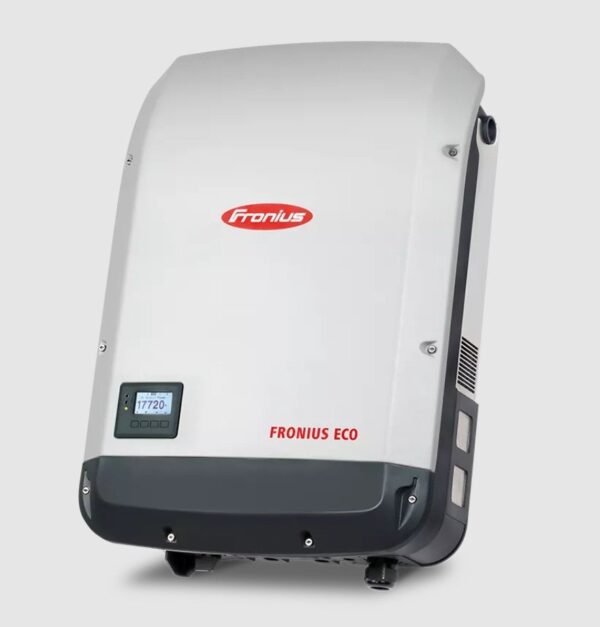

Fronius Eco 27.0-3-S Solar Inverter
Fronius Eco 27.0-3-S Solar Inverter - Image 2
Fronius Eco 27.0-3-S Solar Inverter - Image 3

Fronius Eco 27.0-3-S Solar Inverter

(0)

₦6,479,350.00

Quantity:

Free Delivery

Nationwide shipping

Warranty

Manufacturer guarantee

Expert Support

Installation & maintenance

  • Description
  • Features
  • Specifications
  • Reviews

Description

Fronius Eco

The compact project inverter for maximum yields.

The three-phase Fronius Eco in power categories 25.0 and 27.0 kW perfectly meets all the requirements of large-scale installations. Thanks to its light weight and SnapINverter mounting system, this transformerless device can be installed quickly and easily either indoors or outdoors. This inverter series sets new standards with its IP 66 protection class. In addition, its integrated all-pole string fuse holders and optional DC fuse mean that string collection boxes are no longer required.

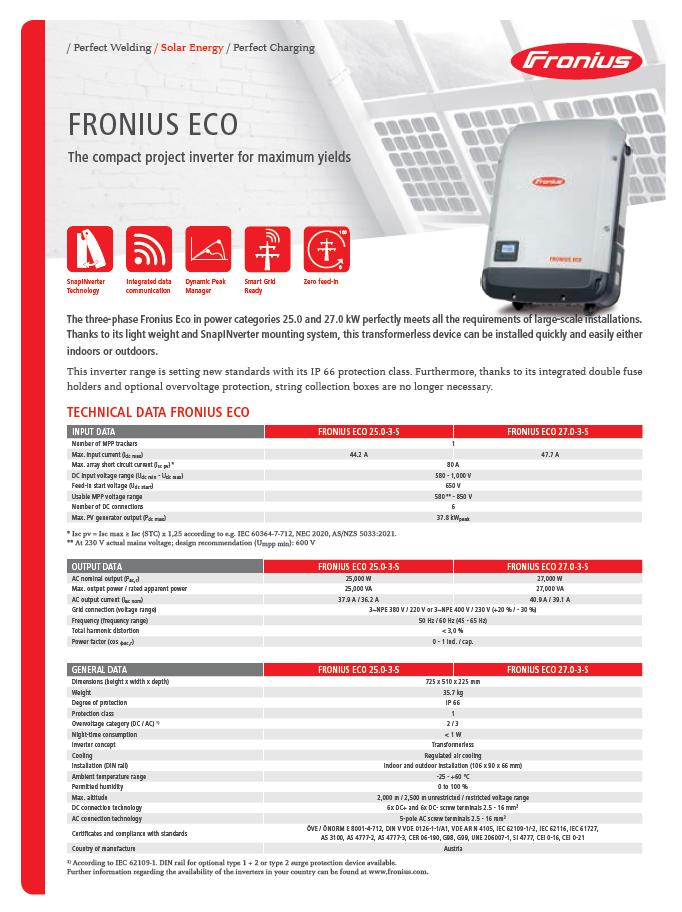

Technical Data

INPUT DATA

Number of MPP trackers 1
Max. input current (Idc max)
 44,2 A
Max. short circuit current, module array*
 80 A
DC input voltage range (Udc min – Udc max)
 580 – 1000 V
Feed-in start voltage (Udc start)
 650 V
Nominal input voltage (Udc,r)
 580 V
MPP voltage range (Umpp min – Umpp max)
 580 – 850 V
Usable MPP voltage range 580 – 850 V
Number of DC connections 6
Max. PV generator power (Pdc max)
 37,8 kWpeak

OUTPUT DATA

AC nominal output (Pac,r)
 25 kW
Max. output power (Pac max)
 25 kVA
AC output current (Iac nom)
 37,9 / 36,2 A
Grid connection (Uac,r)
 3~ NPE 400/230, 3~ NPE 380/220 V
AC voltage range (Umin – Umax)
 150 – 275 V
Frequency (fr)
 50 / 60 Hz
Frequency range (fmin – fmax)
 45 – 65 Hz
Total harmonic distortion <3% @Pnom (230/400VAC 50Hz)
Power factor (cos φac,r)
 0 – 1 ind,/cap,

Key Features

No features available for this product.

Technical Specifications

No specifications available for this product.
