Higher yields / Safe & Reliable / Smart / User-friendly

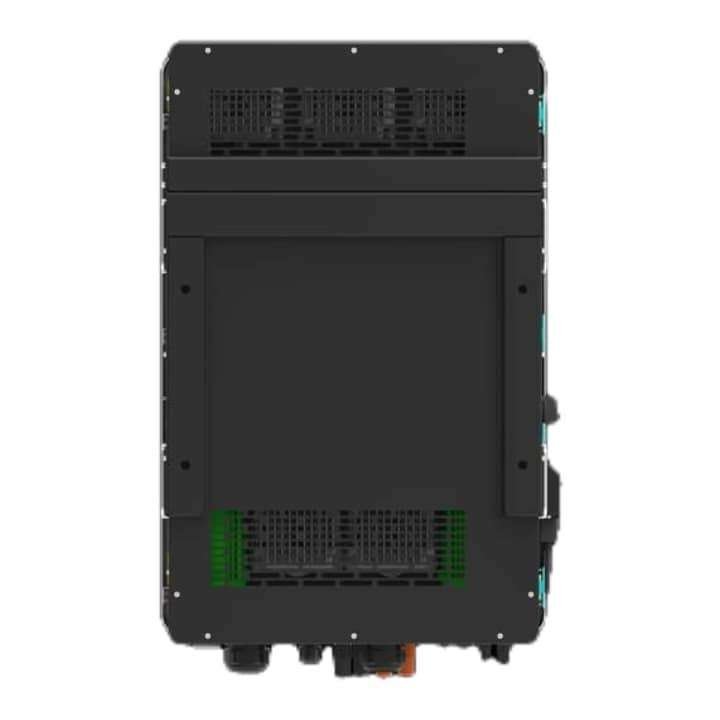

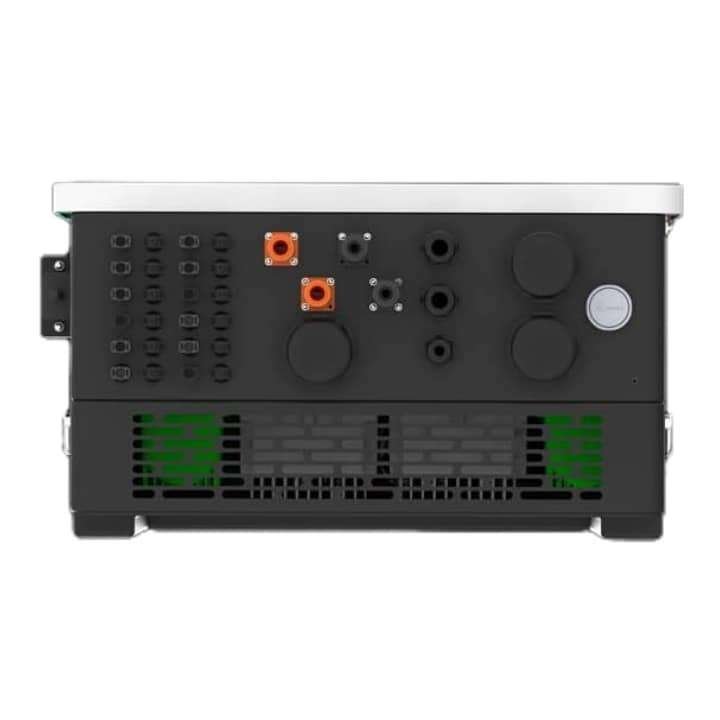

SUN-80K-SG02HP3-EU-EM6 is a brand new three-phase hybrid inverter with a high-voltage battery, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports a three-phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, which makes the system smart and flexible.

It is equipped with RS485 / CAN port for battery communication.

Remotely shutdown function

Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely, which makes PV plant O&M easier.

Technical Specifications

Battery Input Data

• Model: SUN-80K-SG02HP3-EU-EM6
• Battery Type: Lithium-ion
• Battery Voltage Range (V): 160-1000
• Max. Charging Current (A): 80+80
• Max. Discharging Current (A): 80+80
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• Number of Battery Input: 2

PV String Input Data

• Max. PV Access Power (W): 160000
• Max. PV Input Power (W): 128000
• Max. PV Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Voltage Range (V): 150-850
• Rated PV Input Voltage (V): 650
• Max. Operating PV Input Current (A): 36+36+36+36+36+36
• Max. Input Short-Circuit Current (A): 54+54+54+54+54+54
• No. of MPP Trackers/
  No. of Strings MPP Tracker: 6/2+2+2+2+2+2

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 80000
• Max. AC Input/Output Apparent Power (VA): 88000
• Rated AC Input/Output Current (A): 121.3/115.9
• Max. AC Input/Output Current (A): 133.4/127.6
• Max. Continuous AC Passthrough (grid to load) (A): 200
• Peak Power (off-grid) (W): 1.5 times of rated power, 10s
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range (Hz): 50/45-55, 60/55-65
• Grid Connection Form: 3L+N+PE
• Total Current Harmonic Distortion THDi: <3% (of nominal power)
• DC Injection Current: <0.5% In

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.0%
• MPPT Efficiency: >99%
