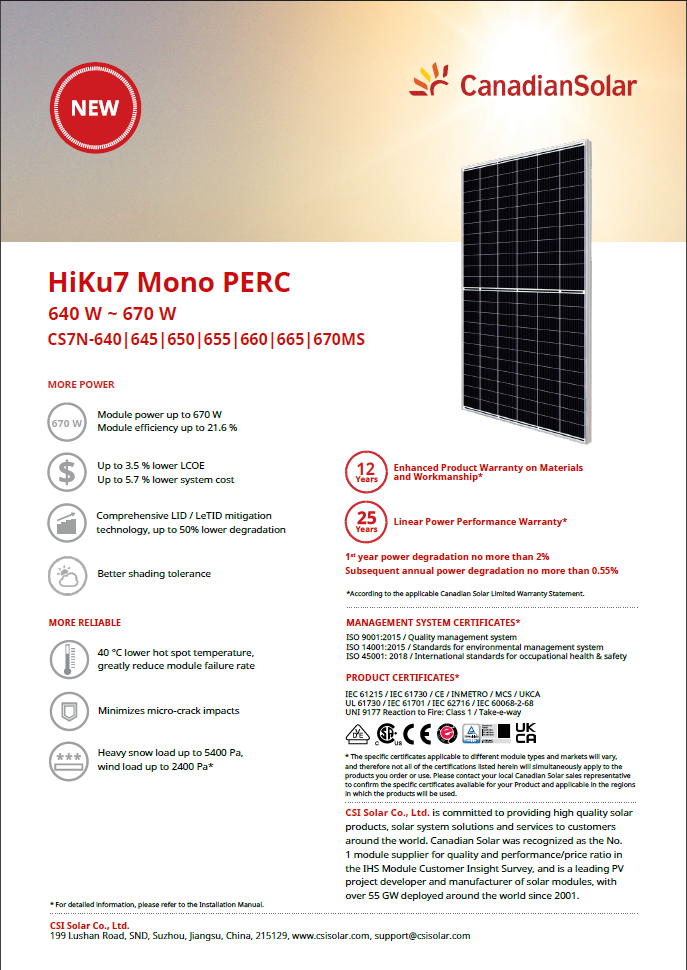

MORE POWER

• Module power up to 670 W
• Module efficiency up to 21.6 %
• Up to 3.5 % lower LCOE
• Up to 5.7 % lower system cost
• Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
• Better shading tolerance

MORE RELIABLE

• 40 °C lower hot spot temperature, greatly reduce module failure rate
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*

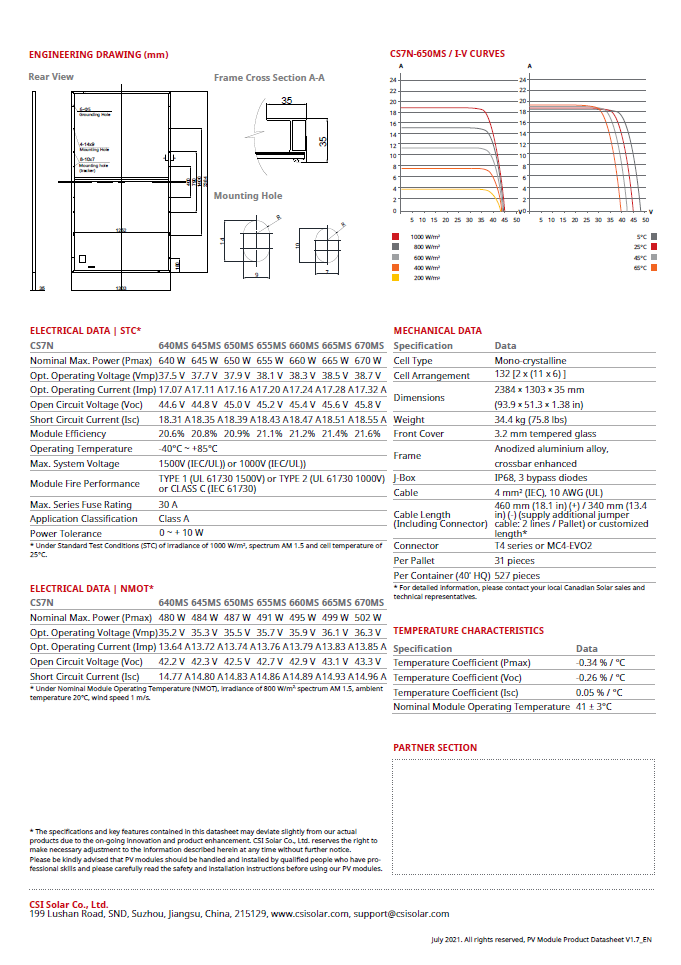

ELECTRICAL DATA | STC

• Nominal Max. Power (Pmax): 665 W
• Opt. Operating Voltage (Vmp): 38.5 V
• Opt. Operating Current (Imp): 17.28 A
• Open Circuit Voltage (Voc): 45.6 V
• Short Circuit Current (Isc): 18.51 A
• Module Efficiency: 21.4%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 35 A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W

MECHANICAL DATA

• Cell Type: Mono-crystalline
• Cell Arrangement: 132 [2 x (11 x 6) ]
• Dimensions: 2384 ˣ 1303 ˣ 35 mm (93.9 ˣ 51.3 ˣ 1.38 in)
• Weight: 37.9 kg (83.6 lbs)
• Front Cover: 3.2 mm tempered glass
• Frame: Anodized aluminium alloy, crossbar enhanced
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 10 AWG (UL)
• Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length*
• Connector: T4 series or MC4-EVO2
• Per Pallet: 31 pieces
• Per Container (40′ HQ): 527 pieces
