Key Features

• N-type TechnologyN-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light
  performance.
• HOT 3.0 TechnologyN-type modules with Jinko Solar’s HOT 3.0 technology offer better reliability and efficiency.
• Durability Against Extreme EnvironmentHigh salt mist and ammonia resistance.
• Mechanical Load EnhancedCertified to withstand:
  5400 Pa front side max static test load
  2400 Pa rear side max static test load.
• SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability.
• Anti-PID GuaranteeMinimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material
  control.

Specification | STC

• Module Type: JKM615N-66HL4M-V
• Maximum Power (Pmax): 615Wp
• Maximum Power Voltage (Vmp): 40.73V
• Maximum Power Current (Imp): 15.10A
• Open-circuit Voltage (Voc): 48.79V
• Short-circuit Current (Isc): 16.08A
• Module Efficiency STC (%): 22.77%
• Temperature Coefficients of Pmax: -0.29 %/°C
• Temperature Coefficients of Voc: -0.25 %/°C
• Temperature Coefficients of Isc: 0.045 %/°C
• Power tolerance: 0~+3%
• Operating Temperature: -40 °C ~ +70°C
• Maximum System Voltage: 1000/1500 VDC (IEC)
• Maximum Series Fuse Rating: 30 A

Mechanical Characteristics

• Cell Type: N -type Mono-crystalline
• No. of cells: 132 (66×2)
• Dimensions: 2382×1134×35 mm
• Weight: 28.2 kg
• Front Glass: 3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
• Frame: Anodized Aluminum Alloy
• Junction Box: IP68 Rated
• Protection Class: Class II
• IEC Fire Type: Class C
• Connector Type: K03M/MC4/Others
• Output Cables: 4.0 mm2 (+): 400 mm, (-): 200 mm or Customized Length

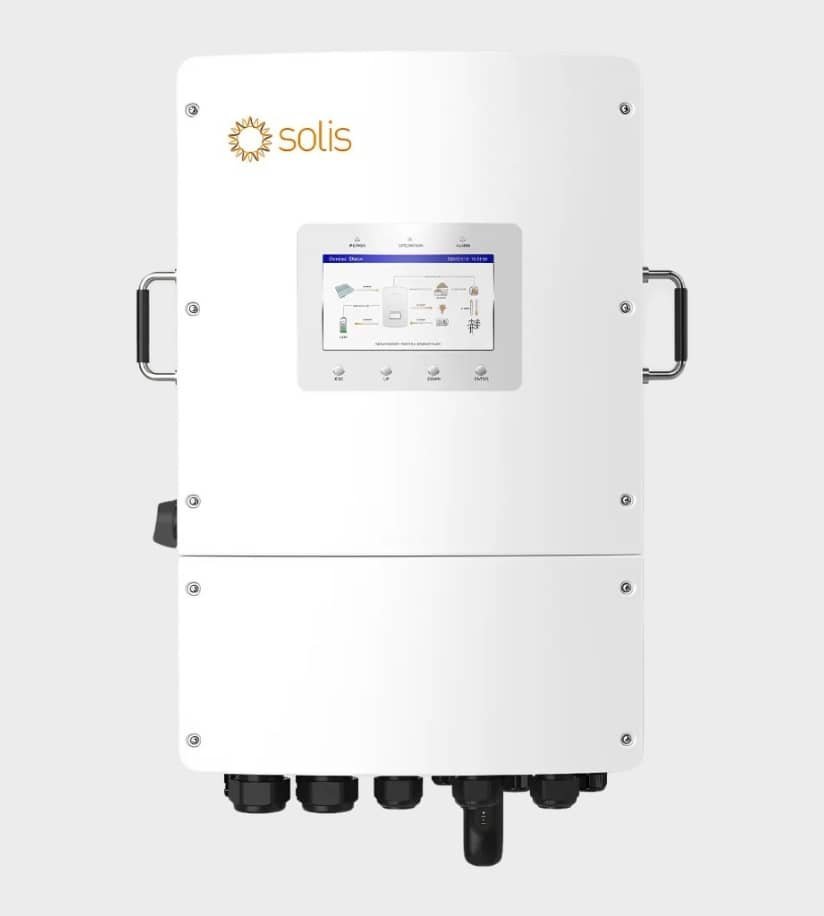

S6-EH3P15K02-NV-YD-L series three-phase hybrid inverter is suitable for large residential PV energy storage systems with low battery voltage (48V). The products are compatible with high-power PV panels, and suitable for a variety of brands’ lithium and lead-acid batteries. In addition, the product has a wealth of features, including compatible generators, UPS level switching, grid-tied PV system coupling networking, supporting three-phase unbalanced load and half-wave load, etc. Helps households easily achieve zero carbon energy needs.

Three-Phase Low Voltage Energy Storage Inverter

Leading Features

• Built-in control for SG-ready heat pumps
• 7-inch LCD screen for an intuitive user experience
• Bluetooth app support for quick and easy setup
• Compatible with mainstream lithium and lead-acid batteries
• 160% PV input capacity to maximize solar energy utilization
• Easily expand system capacity using parallel connections and AC coupling
• AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs
• Seamless integration with VPP and EMS platforms for enhanced energy optimization
• Supports three-phase unbalanced output, allowing up to 50% of rated inverter power per phase

The BYD B-Box Premium LVL has powerful on-grid, backup and off-grid functions for private and commercial applications.

The new battery storage also has protection rating IP20. This means that the BYD B-Box Premium LVL 15.4 can only be used indoors.

Flexible and Scalable

In total, up to 64 B-Box Premium LVL 15.4 can be connected in parallel to achieve a total capacity of 983.04 kWh.

The BYD Battery-Box Premium LVL 15.4 is compatible with the market leading 1- and 3-phase inverters from GoodWe, Victron and SMA (Sunny Island).

Advantages of the BYD B-Box Premium

• All models of the Battery-Box Premium series comply with the VDE 2510 safety standard and have additional safety functions for installation.
• The systems support parallel connections without the need for additional communication devices.
• They are more flexible and scalable and cover a wider range of applications.
• The new cobalt-free premium generation also features a higher energy density and a more compact format, thus requiring less floor space.
• The higher capacity per module reduces the number of components. In combination with the improved design and a new locking mechanism, this should make installation easier and reduce installation time.
• Lithium Iron Phosphate Battery (LFP): Maximum safety, lifetime and performance
• In addition to a new LED status display, there is also a new interface and the option of remote control.

Specification | STC

• Module Type: JKM555N-72HL4-V
• Maximum Power (Pmax): 555Wp
• Maximum Power Voltage (Vmp): 41.64V
• Maximum Power Current (Imp): 13.33A
• Open-circuit Voltage (Voc): 50.34V
• Short-circuit Current (Isc): 14.07A
• Module Efficiency STC (%): 21.48%
• Operating Temperature (℃): -40℃~+85℃
• Maximum system voltage: 1000/1500VDC (IEC)
• Maximum series fuse rating: 25A
• Power tolerance: 0~+3%
• Temperature coefficients of Pmax: -0.35%/℃
• Temperature coefficients of Voc: -0.28%/℃
• Temperature coefficients of Isc: 0.048%/℃
• Nominal operating cell temperature (NOCT): 45±2℃

Mechanical Characteristics

• Cell Type: N type Mono-crystalline
• No. of cells: 144 (6×24)
• Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inch)
• Weight: 28.9 kg (61.73 lbs)
• Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated
• Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
